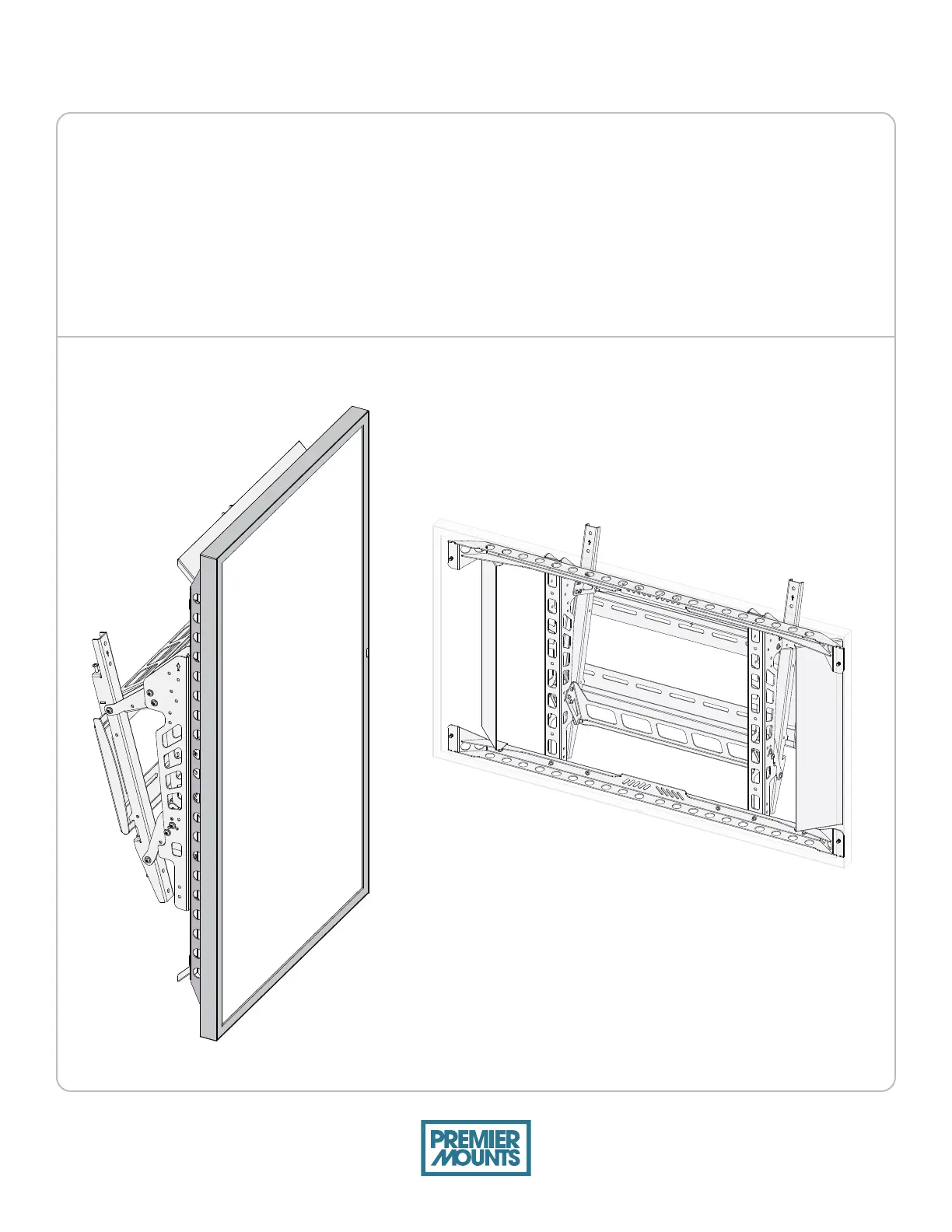

Installation Guide
Outdoor Flat/Tilt Wall Mount
For Samsung OH55
7170-0977 Series
Page 2
Installation Guide
7170-0977 Series
BASIC INFORMATION
INSTALLATION ENVIRONMENT
ENCLOSED OR RECESS AREA
Wall mount model 7170-0977-00 (at)
7170-0977-01 (Tilt)
Display Model OH55
Installation Conguration Landscape
Portrait
Tilt feature Available by model
Fixed at at, 5 deg, 10 deg , 15 deg
Environment Temperature Negative 30 Celsius to 50 Celsius, 24/7 operation
Wall application Solid concrete, Hollow Brick, or 3/4" plywood-backed wall
Product Weight 31.5 lbs [14.4 kg] for at model
45.5 lbs [20.6 kg] for tilt model
OA Weight (Mount & Flat-Panel) 147.5 lbs [66.9 kg] (at)
161.5 lbs [73.26 kg] (Tilt)
OA Width x Depth x Height (Portrait) 28.8” x (5.55” at to 17.33” tilt) x 50.87
OA Width x Depth x Height (Landscape) 49.63” x (5.55” at to 14.62” tilt) x 30.38”
Beach Must not be placed in areas where seawater is accessible
Wind Must not be placed in areas with strong winds caused by storms or other
natural phenomenon
Snow Awning or cover is needed to avoid snow piling directly onto inlet
Iron Dust Suitable, (e.g. train or subway station)
Clearance 52mm (2.05”) minimum all around
Additional front glass Prohibited in any enclosed area
Page 3
Installation Guide
7170-0977 Series
HARDWARE:TILT ADAPTER (OPTION):
CORE COMPONENTS:
1/4-20 x 2-1/2
Button Head
1/4” Flat Washer
x12 x12
Shell Expansion
Anchor
1/4-20 x 5 Pan
Head
5/16 x 3 Hex
Lag
1/4” Flat Washer1/4-20 x 3/4”
Button Head
M8 x 16mm Hex
Bolt
Lock-it
Sec urity Barrel
5/16 Flat
Washer
5/16 Split Lock
Washer
x4
x6 x10x6
x4
x6 x1
x8
x8
Mounting
Frame x2
Tilt Adapter x2
Tilt Coupling
Bracket x4
Tilt Brace x2
Partition /
Baffle x2
Wall Plate x1
Hooking
Bracket x2
