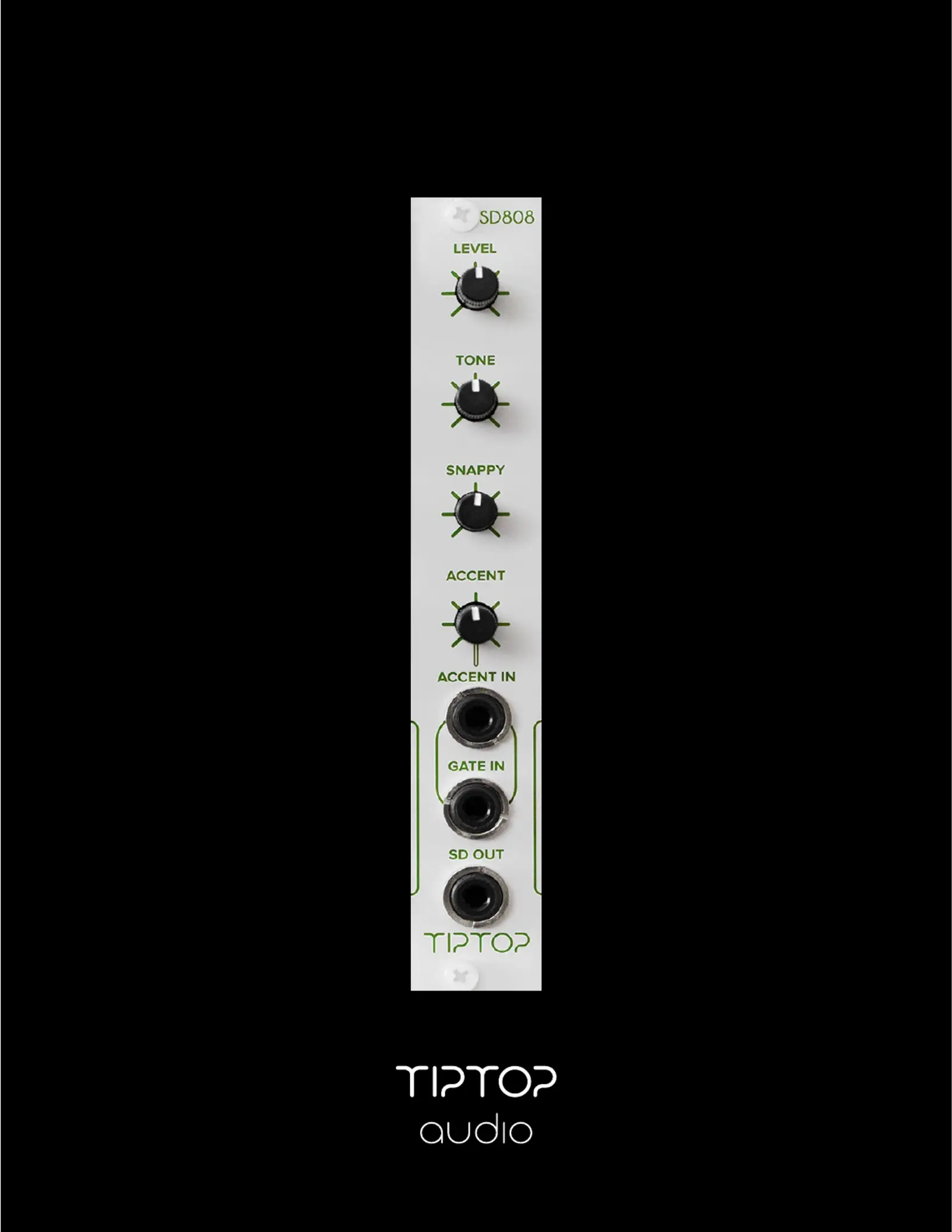

SD-808
TIPTOP AUDIO
SD808
Introduction.
The SD808 is Roland's TR-808 snare drum sound generator adapted for modular
synthesizer use. The front panel contains all of the controls found on the original TR-808
drum machine, allowing you full control over the snare drum timbres, volume levels to
mix with other drums, and accent levels. The module itself is very simple and
straightforward to operate; however, we highly encourage you to read this manual as it
contains useful information that will help you get much more out of the SD808. These
electronic drums are the heart and soul of our electronic music generation and learning
how to use them correctly will open up a world of organic analog beats and sounds for
you to utilize in your own music.
About the Making of the SD808.
The SD808 is a one-to-one clone of the original circuit found in Roland's TR-808 drum
machine. The TR-808 was manufactured from 1980 till 1984, during this time Roland had
revised parts of the machine according to what they believed would make it either
sound better or electrically work better. One of the circuits that was
changed over time is the machine's white noise source: this noise source feeds dierent
sound generators and among them is the snare drum. The freedom of having a
dedicated noise source per each of our drum module allowed us to set it according to
what we found to sound better, and in the case of the SD808 we went with what Roland
thought to be an improvement and adapted the later noise circuit design.
When compared to several original machines we found a lot of variation, both in sound
clarity at dierent settings, length of the envelope, and timbre changes resulting from
dierent levels of accent. So is the SD808 sound like the original?
We believe so, the SD808 follows the original schematic and its representing math
precisely, down to the smallest details.
For more in-depth information about the challenges that were facing us at making this
series of modules please look at the BD808 User Guide.
Let’s get started.
To start using the SD808, just plug a gate signal into the GATE IN and plug the
SD OUT to your sound system and set the LEVEL half way.
Dynamics and Gain.
Level Explained:
The SD808 oers an enhanced output gain stage over the original 808 design.
This addition allows the output signals to get very hot so that anything flowing from the
module will be overdriven, generating additional harmonics and tight attacks through
distortion and clipping of the sound. In fact, the SD808 can go even hotter than standard
levels of modular VCO's. This capability is one of the most useful ways to get tighter and
in some cases more realistic snare drum sounds out of this circuit. Obviously we didn't
invent the idea, it had been done for years by stringing 808's through multiple gain
stages and tubes to overdrive the levels and create distortion. However, this idea has
never been implemented as part of the sound generator itself to provide hot gain levels
right from the source. This eect is easily noticeable by sending the audio output into
line level instruments such as computer audio interfaces, outboard multi-eects, mixers,
and even low level devices like guitar pedals, mic preamps etc. This enhanced gain
stage will also make any synthesizer module operate at peak levels while adding inter-
esting harmonics or digital artifacts in the case of digital processing modules.
To get the SD808 to its hottest levels, set the LEVEL to max, set ACCENT to max, and set
SNAPPY to mid-way. At these settings, the SD808 can output a signal up to 20Vp.p
(Most professional computer interfaces usually start clipping at 10Vp.p!!)
On the other hand, if all you want is a nice, soft 808 sound, setting the range of the
LEVEL knob somewhere between 0 to 50% will cover that.
