S-4600 SDI to HDMI converter
USER MANUAL
SWIT Electronics Co., Ltd.
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
1. Characteristics
Portable 3G/HD/SD-SDI to HDMI converter
1 SDI input, 1 SDI loop through output, 1 HDMI output,
Embed SDI audio to HDMI output
SDI embedded audio output (3.5mm socket)

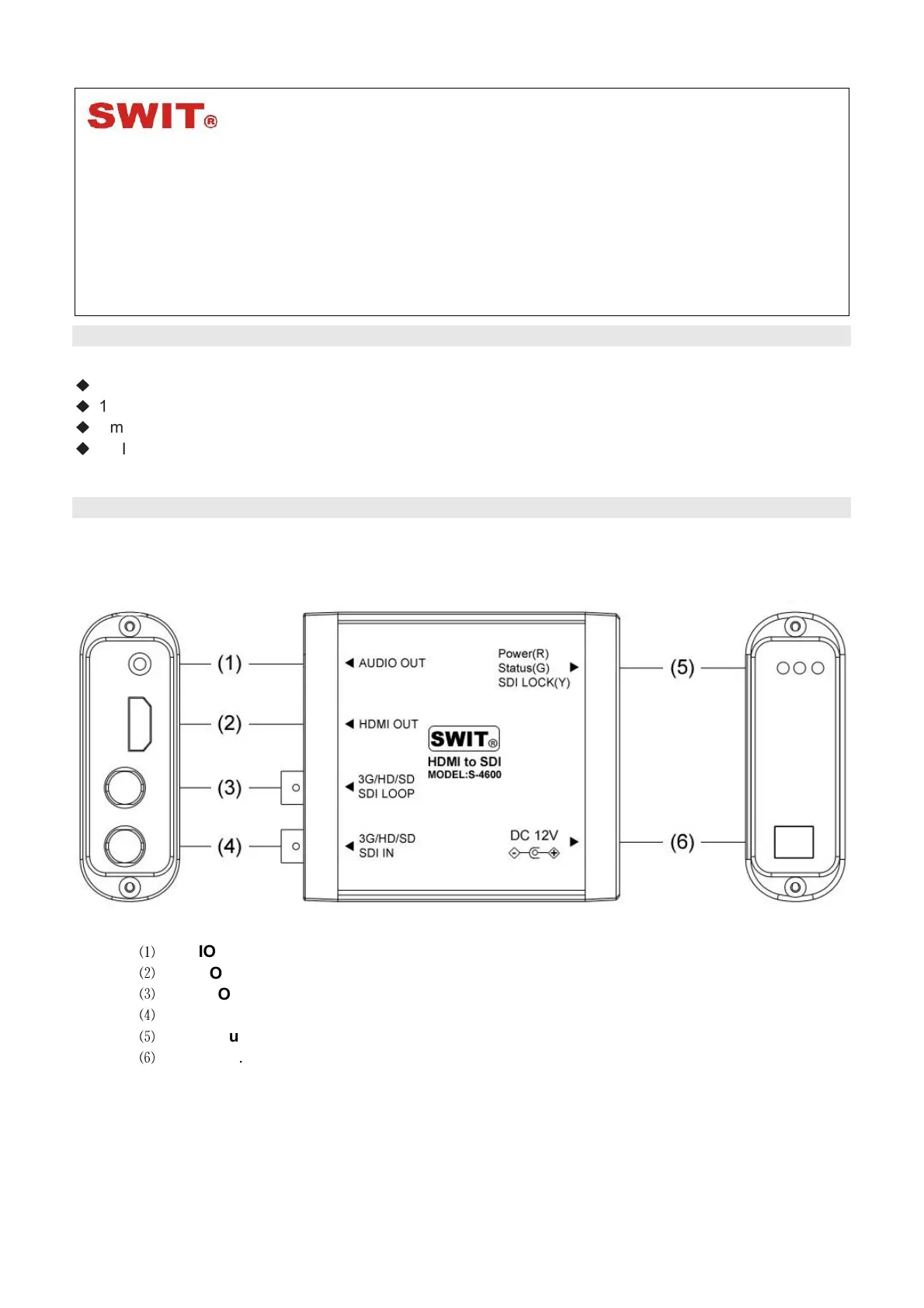

2. Product View
Left side view Front view Right side view
AUDIO OUT: Analog audio output (3.5mm)
HDMI OUT: HDMI output
3G/HD/SD-SDI loopthrough output (BNC) SDI LOOP:
3G/HD/SD-SDI input (BNC) SDI IN:
LED status indicator
DC 12V: 5.5mm pole DC input
3. Installation Plate
Installation Plate Rear View of S-4600 Installed
Screw hole 3 Screw hole 4
Screw
hole 1
Screw
hole 2
Screw hole 5 Screw hole 6
Match the screw holes 1&2 with the threads 1&2 of S-4600, and fix the installation plate to the S-4600 by the
supplied screws. HDMI cable can be bundled onto the installation plate. The screw holes 3, 4, 5, 6 are used
to install S-4600 to wall or racks.
4. Indicators and Switchers
Power (Red): Power indicator
Status (Green): Status indictor, lights on when there’s HDMI output and connected to HDMI input devices
in well condition.
SDI LOCK (Yellow): SDI indicator, lights on when there’s SDI input recognized.
5. Specifications
Input 3G/HD/SD-SDI×1
Output 3G/HD/SD-SDI×1, HDMI×1, Analog audio (3.5mm)×1
HDMI 480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M 1080p (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-274M 1080i (60 / 59.94 / 50)
SMPTE-296M 720p (60 / 59.94 / 50)
ITU-R BT.656 576i (50)
Video Format
SDI
SMPTE-125M 480i (59.94)
Audio Format 48KHz sync
Power ≤3W
Working Voltage DC 6-18V
Working Environment Temperature: 0 -+70 , Humidity:10%-90%
Dimension 98.5×84.15×29 mm
Net weight 200g
6. Maintenance
1. Please do not disassemble the product by yourself.
2. Keep the product away from rain or moisture.
3. Please use the provided power adapter and if you use third party power adapter, please make sure the
voltage range, supplied power, and polarity of power lead are fit.
Match thread 1
Match thread 2
Bundle the
HDMI cable
