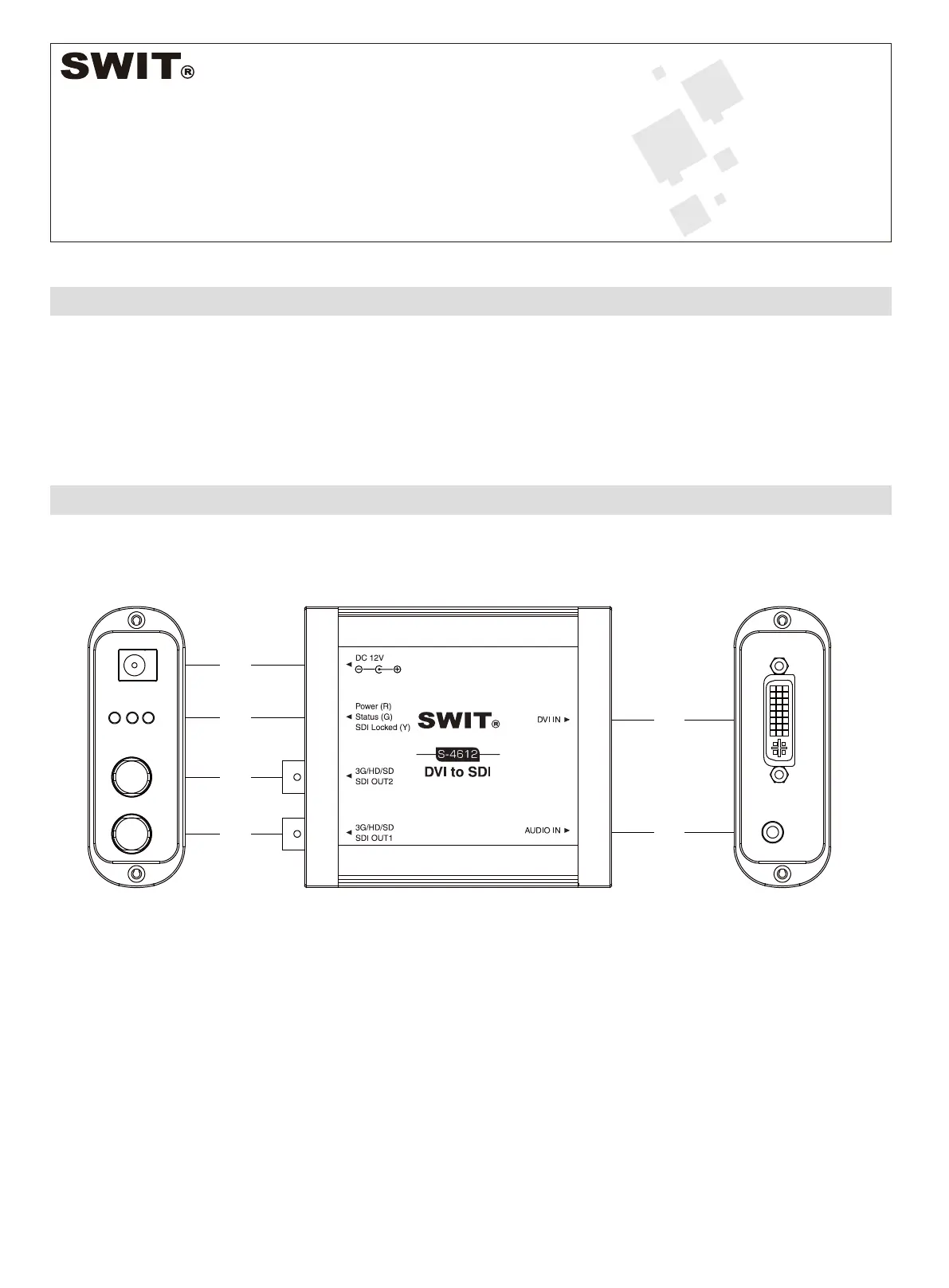

S-4612 DVI to SDI converter
Ver:V1.0V02
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
USER MANUAL
S W I T E l e c t r o n i c s Co. , LT D .
Congratulations on your purchase of this product. Please read this user manual carefully.
Characteristics
Product View
Portable DVI to 3G/HD/SD-SDI converter
1 DVI input, 1 analog audio (3.5mm) input and 2 SDI output
Embed analog audio to SDI ch-1 & ch-2 audio output
Heavy duty aluminium housing and bottom screw threads for installation
◆
◆
◆
◆
Left side view Front view Right side view
⑴ : 5.5mm pole DC input DC 12V
⑵ LED status indicator
Power (red): light up when power is connected
Status (green): light up when DVI port connected and input signal is recognized
SDI Locked (Yellow): light up when SDI output signal is recognized
⑶ : SDI output (BNC)3G/HD/SD SDI OUT2
⑷ : SDI output (BNC)3G/HD/SD SDI OUT1
⑸ : DVI input (DVI-D, 18+1)DVI IN
⑹ AUDIO IN: Analog audio input (3.5mm)
(1)
(2)
(3)
(4)
(5)
(6)
Installation Plate
Specifications
Maintenance
Installation Plate Rear View of S-4612 Installed
Screw hole 3
Screw
hole 1
Screw hole 4
thread 1
thread 2
Match
Match
Screw hole 6Screw hole 5
Match the screw holes 1&2 with the threads 1&2 of S-4612, and fix the installation plate to the S-4612 by
the supplied screws. The screw holes 3, 4, 5, 6 are used to install S-4612 to wall or racks.
1. Please do not disassemble the product by yourself.
2. Keep the product away from rain or moisture.
3. Please use the provided power adapter and if you use third party power adapter, please make sure the
voltage range, supplied power, and polarity of power lead are fit.
Screw
hole 2
Input
Output
Video Format
Audio Format
Power
Working Voltage
Working Environment
Dimension
Net weight
DVI×1, Analog audio (3.5mm)×1
3G/HD/SD-SDI×2
DVI
SDI
480i / 576i / 720p (60 / 59.94 / 50) / 1080i (60 / 59.94 / 50) /
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M
SMPTE-274M
SMPTE-296M
ITU-R BT.656
SMPTE-125M
1080p (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
576i (50)
480i (59.94)
48KHz sync
≤3W
DC 6-18V
Temperature: 0 +70°C, Humidity:10%-90%～
98.5×84.2×29 mm
207g
