S-4605 SDI to Optical Fiber converter
S-4606 Optical Fiber to SDI converter
USER MANUAL
SWIT Electronics Co., Ltd.
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
1. Characteristics
Portable 3G/HD/SD-SDI transmission via Optical Fiber
Single-mode optical fiber, max 20km reliable transmission
Support hot swap of optical module
S-4605: SDI to Optical Fiber, with SDI loop output
S-4605: Optical Fiber to SDI, with 2 SDI output
Heavy duty housing, with bottom screw threads for installing

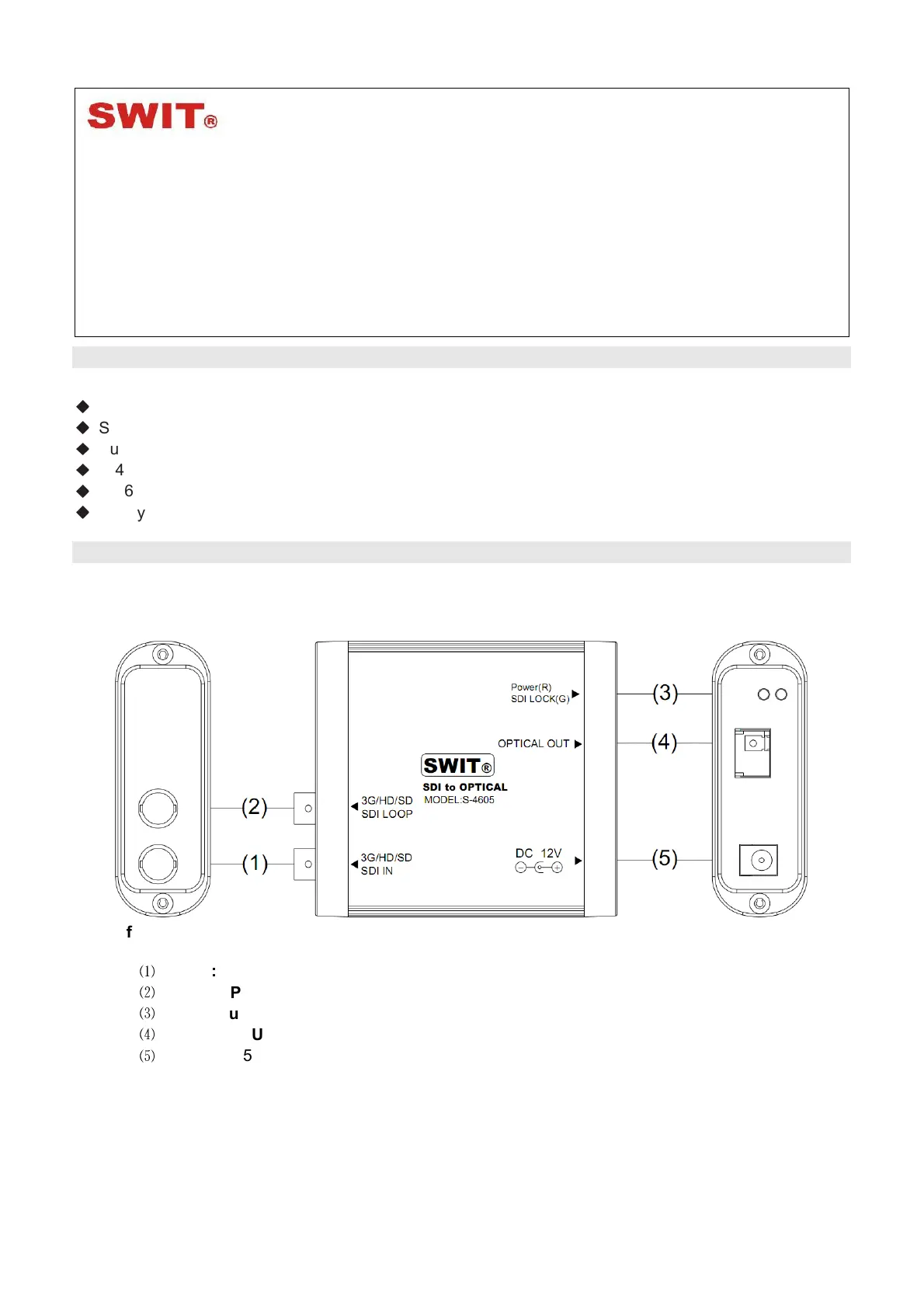

2. Product View
S-4605
Left side view Front view Right side view
3G/HD/SD-SDI input (BNC) SDI IN:
3G/HD/SD-SDI loop through output (BNC)SDI LOOP:
LED status indicator
OPTICAL OUT: Optical fiber output (LC)
DC 12V: 5.5mm pole DC input
S-4606
Left side view Front view Right side view
SDI OUT: 3G/HD/SD-SDI output p2-x2 (BNC)
LED status indicator
OPTICAL IN: Optical fiber input (LC)
DC 12V: 5.5mm pole DC input
3. Working Flow
4. LED status Indicators
Power (Red): Power indicator
SDI LOCK (Green): SDI indicator, lights on when there’s SDI input or output recognized
5. Installation Plate
Installation Plate Rear View of S-4605/4606 Installed
Screw hole 3 Screw hole 4
Screw
hole 1
Screw
hole 2
Screw hole 5 Screw hole 6
Match the screw holes 1&2 with the threads 1&2 of S-4605/4606, and fix the installation plate to the
S-4605/4606 by the supplied screws.
The screw holes 3, 4, 5, 6 are used to install the converter to wall or racks.
6. Specifications
Model S-4605 S-4606
Input 3G/HD/SD SDI×1 OPTICAL×1
Output 3G/HD/SD SDI×1 OPTICAL×1 3G/HD/SD SDI×2
SMPTE-425M
1080p (60/59.94/50)
1080p (30/29.97/25/24/23.98)
SMPTE-274M
1080i (60/59.94/50)
SMPTE-296M
720p (60/59.94/50)
ITU-R BT.656 576i (50)
SDI Format
SMPTE-125M
480i (59.94)
Optical connector LC
Transmission distance 20km
Wavelength 1310nm 1260nm~1580nm
Power consumption ≤3W
Working voltage DC 6-18V
Working environment Temperature: 0°C -+70°C, Humidity:10%-90%
Dimension 98×84×29 mm
Net weight 200g
7. Maintenance
1. Please do not disassemble the product by yourself.
2. Keep the product away from rain or moisture.
3. Please use the provided power adapter and if you use third party power adapter, please make sure the
voltage range, supplied power, and polarity of power lead are fit.
Match thread 1
Match thread 2
