Rev. 1.0
64GB Extended Capacity Secure Digital Card
Transcend Information Inc.
1
Description
Transcend secured digital extended capacity Card
series are specifically designed to meet the High
Capacity, High Definition Audio and Full HD Video
requirement for the latest Digital Cameras, DV
Recorders, Mobile, etc,. The new defined Speed
Class enables the host to support AV applications to
perform real time recording to the SD memory card.
Placement
Front Back
Features
• ROHS compliant product.
• Card Lid material: PC + ABS
• Operating Voltage: 2.7 ~ 3.6V
• Operating Temperature: -25 ~ 85°C
• Durability: 10,000 insertion/removal cycles
• Compatible with SD Specification Ver. 3.0
• Mechanical Write Protection Switch
• Supports Speed Class 10 Specification
• Supports Copy Protection for Recorded Media (CPRM)
for SD-Audio
• Support exFAT file system
• Form Factor: 24mm x 32mm x 2.1mm
Pin Definition
SD Mode SPI Mode
Pin No.
Name
Type
Description Name
Type
Description
1
CD/DAT I/O/PP
Card Detect/Data Line [Bit3] CS I Chip Select (neg true)
2
CMD PP Command/Response DI I Data In
3
V
SS1
S Supply voltage ground VSS S Supply voltage ground
4
V
DD
S Supply voltage VDD S Supply voltage
5
CLK I Clock SCLK
I Clock
6
V
SS2
S Supply voltage ground VSS2
S Supply voltage ground
7
DAT0
I/O/PP
Data Line [Bit0] DO O/PP Data Out
8
DAT1
I/O/PP
Data Line [Bit1] RSV
9
DAT2
I/O/PP
Data Line [Bit2] RSV
S
S
SD
D
DX
X
XC
C
C
C
C
Ca
a
ar
r
rd
d
d
s
s
se
e
er
r
ri
i
ie
e
es
s
s
Rev. 1.0
64GB Extended Capacity Secure Digital Card
Transcend Information Inc.
2

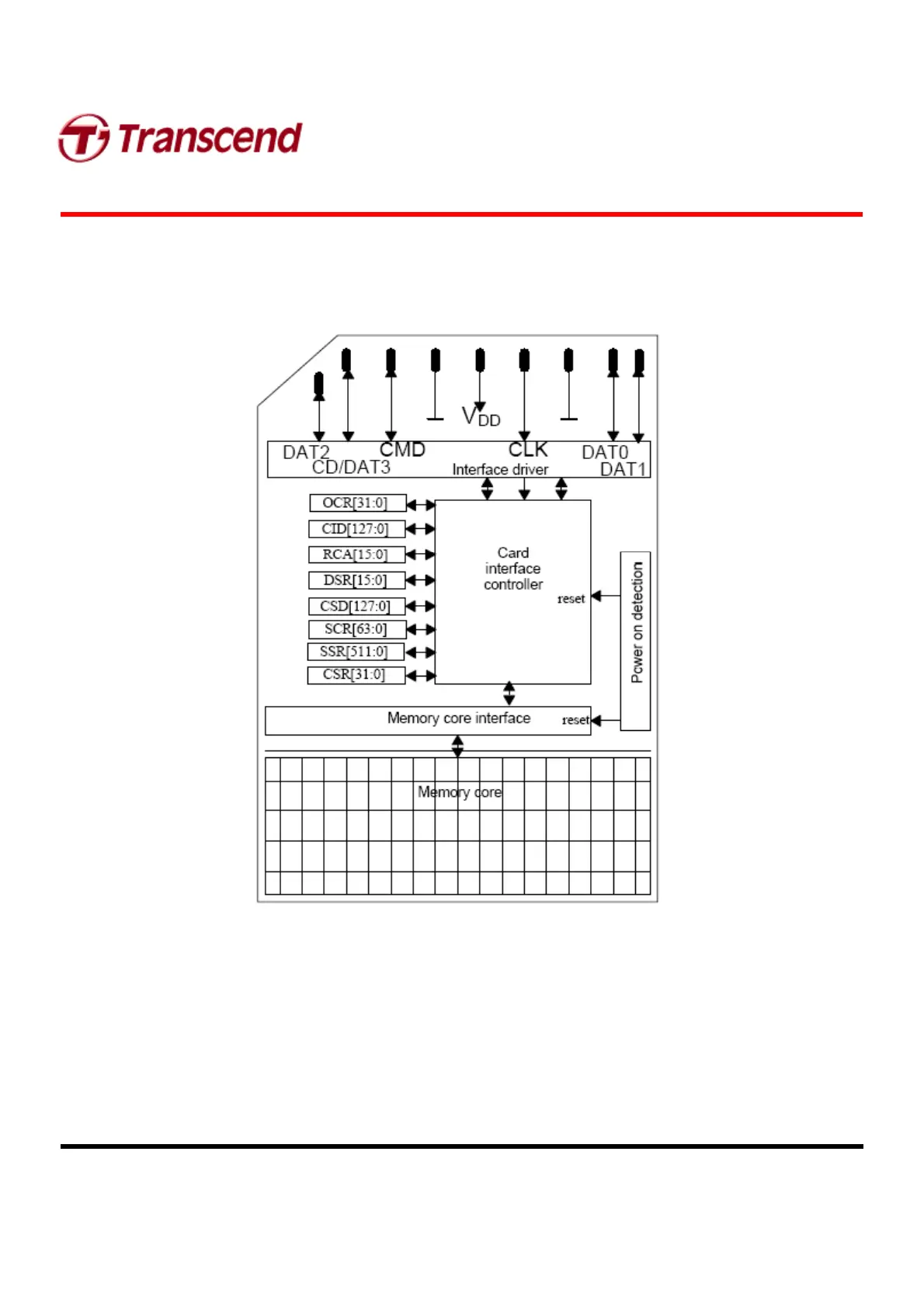

1.0 Architecture
S
S
SD
D
DX
X
XC
C
C
C
C
Ca
a
ar
r
rd
d
d
s
s
se
e
er
r
ri
i
ie
e
es
s
s
Rev. 1.0
64GB Extended Capacity Secure Digital Card
Transcend Information Inc.
3
2.0 Hardware Interface
2.1 2.1 2.1 2.1 GeneralGeneralGeneralGeneral
Parameter Symbol
Min. Max. Unit Remark
Peak voltage on all lines -0.3 V
DD
+0.3
V
All Inputs
Input Leakage Current -10 10 µA
All Outputs
Output Leakage Current -10 10 µA
2.0 2.0 2.0 2.0 Power Supply VoltagePower Supply VoltagePower Supply VoltagePower Supply Voltage
Parameter Symbol
Min. Max. Unit Remark
Supply voltage V
DD
2.7 3.6 V
Output High Voltage V
OH
0.75* V
DD
V I
OH
=-100uA@V
DD
Min.
Output Low Voltage V
OL
0.125* V
DD
V I
OL
=100uA@V
DD
Min.
Input High Voltage V
IH
0.625* V
DD
V
DD
+0.3
V
Input Low Voltage V
IL
V
SS
-0.3 0.25* V
DD
V
Power up time 250 ms From 0v to V
DD
Min.
