VE-5836UK

CONTROLS

WWW

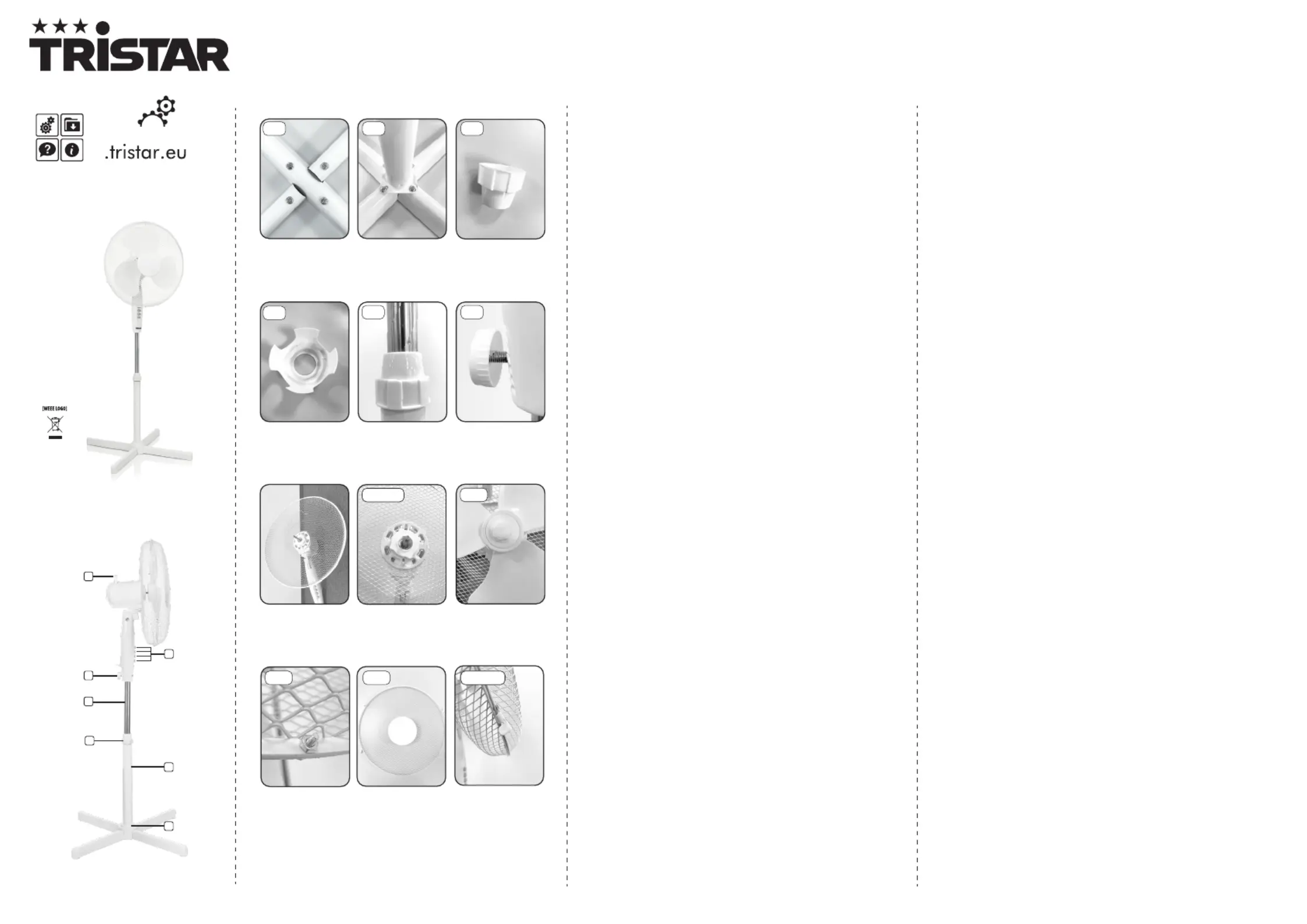

ASSEMBLY

Fig 1

Unscrew four

screws on

the stand

Place pedestal on

feet & fasten

screws

Remove the height

adjustment ring

Fig 2Fig 1 Fig 3

Fig 4

Slide stand cover

down onto base

Loosen height

adjustment ring to

extend the extension

rod

Loosen rear xing

knob & attach

extension rod

Fig 5 Fig 6

Fit rear cage Secure rear cage

with rear

locking ring

Install fan blade

& t the

fan blade lock cap

Fig 7, 8, 9 Fig 10

Loosen screw & nut

on bottom of

rear cage

Open front cage

clips

Tighten screw & nut

& close cage

clips

Fig 12Fig 11 Fig 13, 14

SAFETY

• This appliance shall not be used by

children aged less than 8 years. This

appliance can be used by children

from 8 years and above and persons

with reduced physical, sensory or

mental capabilities or lack of

experience and knowledge if they

have been given supervision or

instruction concerning use of the

appliance in a safe way and

understand the hazards involved.

Children shall not play with the

appliance. Keep the appliance and

its cord out of reach of children aged

less than 8 years. Cleaning and user

maintenance shall not be made by

children unless older than 8 and

supervised.

• By ignoring the safety instructions,

the manufacturer cannot be held

responsible for the damage.

• If the supply cord is damaged, it must

be replaced by the manufacturer, its

service agent or similarly qualied

persons in order to avoid a hazard.

• Never move the appliance by pulling

the cord and make sure the cord

cannot become entangled.

• The appliance must be placed on a

stable, level surface.

• The user must not leave the device

unattended while it is connected to

the supply.

• This appliance is only to be used for

household purposes and only for the

purpose it is made for.

• To protect yourself against an electric

shock, do not immerse the cord, plug

or appliance in the water or any other

liquid.

CONTROLS

1. Oscillation knob

2. Speed control buttons

3. Height adjustment ring

4. Extension rod

5. Pedestal

6. Stand cover

7. Rear xing knob

BEFORE THE FIRST USE

• Take the appliance and accessories out

of the box. Remove the stickers,

protective foil or plastic from the

device.

• Follow the assembly diagram to

assemble the product.

• Place the device on a at stable surface

and ensure a minimum of 10cm free

space around the device. This device is

not suitable for installation in a cabinet

or for outside use.

• Put the power cable into the socket.

(Note: Make sure the voltage which is

indicated on the device matches the

local voltage before connected the

device. Voltage 220V-240V 50/60Hz.

Fig 4

EN | Instruction Manual

ASSEMBLY

Fig 1 Unscrew the four screws from the

stand feet and cross the stand feet.

Fig 2 Place the pedestal on the feet and

fasten the four screws in place.

Fig 3 Remove height adjustment ring by

unscrewing and sliding up.

Fig 4 Slide stand cover down onto the

base and screw the height

adjustment ring back in place.

Fig 5 Loosen height adjustment ring to

extend the extension rod and

tighten back into place.

Fig 6 Loosen rear xing knob and attach

extension rod.

Fig 7 Unscrew the rear locking ring from

the motor shaft in anti-clockwise

direction.

Fig 8 Set the rear cage and t it well on

the two position holes and make

sure these holes are properly put

through the holes on the rear

cage.

Fig 9 Hold the rear cage and screw the

rear locking ring into the motor

front cover in a clockwise

direction.

Fig 10 Install the fan blade onto motor

shaft and t the fan blade lock cap.

Fig 11 Loosen the screw and nut on the

bottom of the rear cage.

Fig 12 Open front cage clips and position

onto rear cage ensuring the screw

bottom is aligned between both.

the item number of the product. The

guarantee does not cover damage

caused by:

• Accident or unanticipated events (e.g.

lightning, water, re).

• Improper use or transport.

• Disregard of safety and maintenance

instructions.

• Other improper treatment or

modication.

ENVIRONMENT

This appliance should not be put into

the domestic garbage at the end of its

durability but must be oered at a

central point for the recycling of electric

and electronic domestic appliances. This

symbol on the appliance, instruction

manual and packaging directs your

attention to this important issue. The

materials used in this appliance can be

recycled. By recycling used domestic

appliances, you contribute an important

push to the protection of our

environment. Ask your local authorities

regarding the point of recollection.

SUPPORT

You can nd all available information

and spare parts at www.tristar.eu

VE-5836UK EN | Instruction manual

Fig 13 Tighten screw and nut.

Fig 14 Close the cage clips over both

front and rear cage.

USE

• Use the speed control buttons to

choose the desired ventilation level.

• To make the fan head oscillate, push

down the oscillation knob.

• To stop the fan head from oscillating,

pull up the oscillation knob.

CLEANING AND MAINTENANCE

• Clean the appliance with a damp cloth.

Never use harsh and abrasive cleaners,

scouring pads or steel wool which can

damage the device.

• Never immerse the electrical device in

water or any other liquid. The device is

not dishwasher proof.

GUARANTEE

This product is provided with a 24

months guarantee. Your guarantee is

valid if the product is used in accordance

to the instructions and for the purpose for

which it was created. In addition, the

original purchase (invoice, sales slip or

receipt) needs to be retained and to be

submitted on request with the date of

purchase, the name of the retailer and

Tr Eur B.Vistar ope . | Jules Verneweg 87 H T r | T N l s | 5015 B ilbu g he ether and
