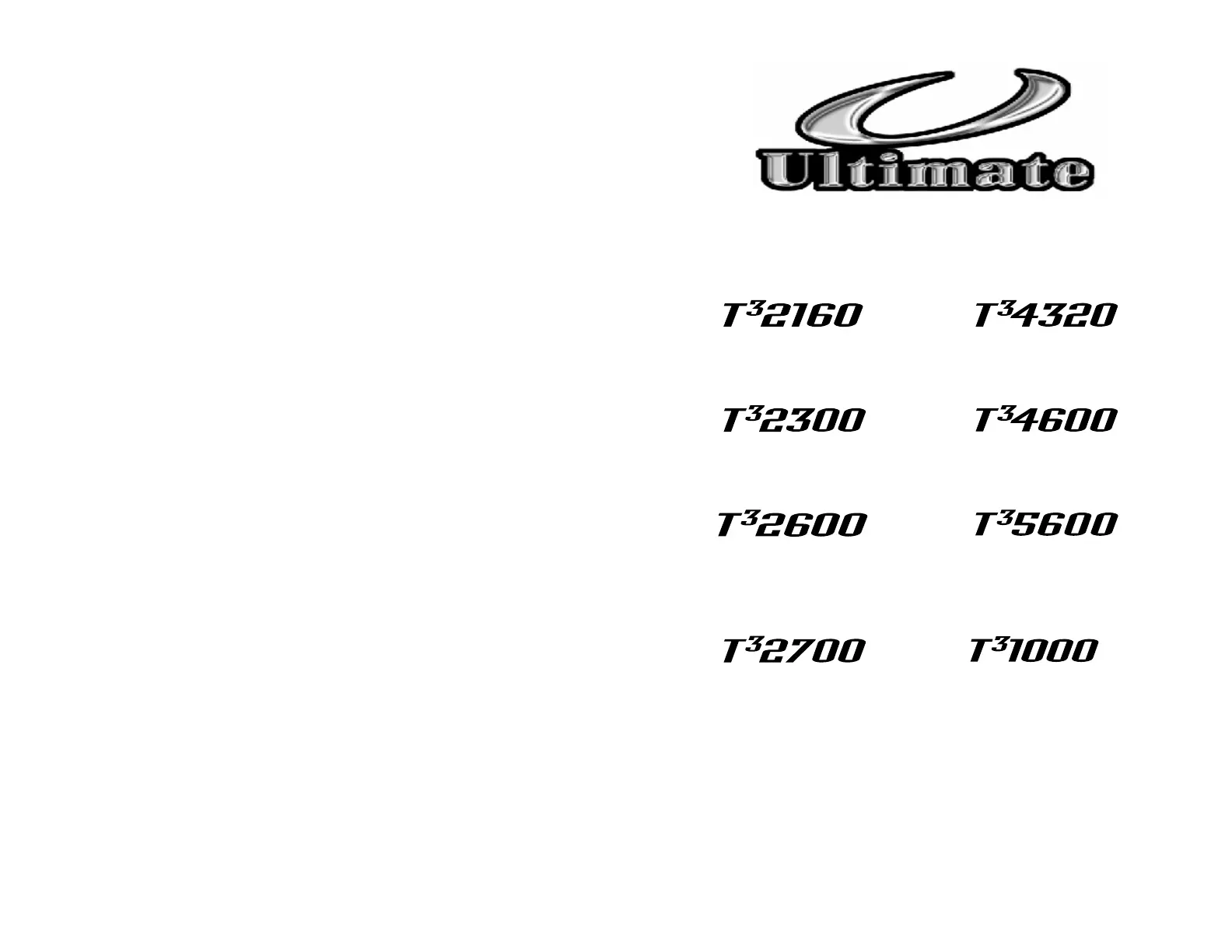

MOBILE POWER AMPLIFIERS

2 X 165 WATT

2 CHANNEL AMPLIFIER

4 X 140 WATT

4 CHANNEL AMPLIFIER

2 X 250 WATT

2 CHANNEL AMPLIFIER

4 X 250 WATT

4 CHANNEL AMPLIFIER

2 X 425 WATT

2 CHANNEL AMPLIFIER

4 X 150 WATT

1 X 300 WATT

5 CHANNEL AMPLIFIER

2 X 600 WATT

2 CHANNEL AMPLIFIER

1 X 540 WATT

1 CHANNEL AMPLIFIER

Ultimate Sound,Inc.

163 University Parkway

Pomona, CA 91768 USA

Tel: 909-594-2604

Fax: 909-594-0191

E mail : technicalsupport@ultimate-sound.com

WWW.ULTIMAT

SOUND.CO

Ultimate Europe AB

Flojelbergsgatan 7A S-431 37

Molndal, Sweden

Tel : 46-31 87 64 50

Fax : 46-31 87 20 04

E mail : europeansupport@ultimate-europe.com

INTRODUCTION

I. Description

This device is a high power, audio amplifier. Use it responsibly. Very

loud music can cause permanent hearing loss. This amplifier is intended

for installation in vehicles with a 12-Volt, negative ground electrical

system. Attempting to connect or operate the amplifier in another type of

electrical system may cause damage to the amplifier or the electrical

system.

II. About This Manual

Read the Instructions-

Be sure that you have read all operating instructions and understand all

safety precautions before installing and operating the amplifier. We

recommend that you have your T3 series amplifier installed by a

specialist.

Follow the Instructions-

The instructions are intended to help you safely obtain the best

performance from the amplifier. Carefully follow all installation and

operating instructions.

Save the Operating Manual-

Keep the manual in a safe place after installing the amplifier. You may

have questions later.

Text Conventions used in this Manual-

Bold-

Headings and important information.

Bold, Underlined-

Very important information.

"Bold"-

As labeled on the amplifier, or quoted from elsewhere in this

manual.

III. Safety and Operating Precautions-

Caution!

This symbol warns the user of a potential risk or hazard if instructions are

not followed.

⇒ This arrow symbol points to a specific instruction for avoiding a

potential hazard.

1. Installation

1.1 Installation- Mounting the Amplifier

Step 1- Disconnect the negative (-) battery cable before mounting the

amplifier or making any connections. Check the battery and alternator

ground (-) connections. Make sure they are properly connected and free of

corrosion

Step 2- Choose a mounting location for your amplifier. Find a location on a

flat surface away from heat and moisture. Be sure the mounting location and

the drilling of pilot holes for mounting will not present a hazard to any

wires, control cables, fuel lines, fuel tanks, hydraulic lines, or other vehicle

systems or components. Common mounting locations are under the front

passenger seat, or in the trunk area. Choose a location with unimpaired air

circulation. The amplifier will dissipate heat more efficiently if mounted

vertically.

Step 3- Use the supplied screws. Place the amplifier in the mounting

location, and mark the positions of the holes with a marker, pen or pencil.

Carefully drill the mounting holes in the marked positions.

Caution!

⇒ Check carefully before drilling any pilot holes.

Step 4- Use the supplied mounting screws to securely fasten the amplifier to

the mounting surface.

1.2 Installation- Power Connections

Step 1- Run a power cable from the battery to the amplifier mounting

location. Use rubber grommets to protect the cable anywhere it has to go

through metal.

T3 4600,T3 4320,T3 2700,T3 2600,T3 2300,T3 5600,T3 1000 Use #8 AWG

or larger power and ground cable.

T3 2160 - Use #10 AWG or larger power and ground cable.

Step 2- Connect one end of an in-line fuse holder to the power cable.

Connect the other end of the fuse holder to the positive battery post with 20

cm (or less) of the same cable. This fuse location will protect the system and

the vehicle against the possibility of a short circuit in the power cable. Be

sure to use a fuse and fuse holder adequate for the application. Do not place

a fuse in the holder at this time.

The maximum fuse rating for each amplifier in the T3 series is:

T3 4600 -2 X 30 A. T3 4320 - 30 A T3 2700 -2 X 30 A.

T3 2600 -2 X 25 A. T3 2300 - 30 A. T3 2160 -15 A.

T3 5600 -3 X 25 A. T3 1000 -2 X 20 A.
