Ultimate t3 5600 Bruksanvisning
Läs nedan 📖 manual på svenska för Ultimate t3 5600 (17 sidor) i kategorin bilradio. Denna guide var användbar för 11 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/17

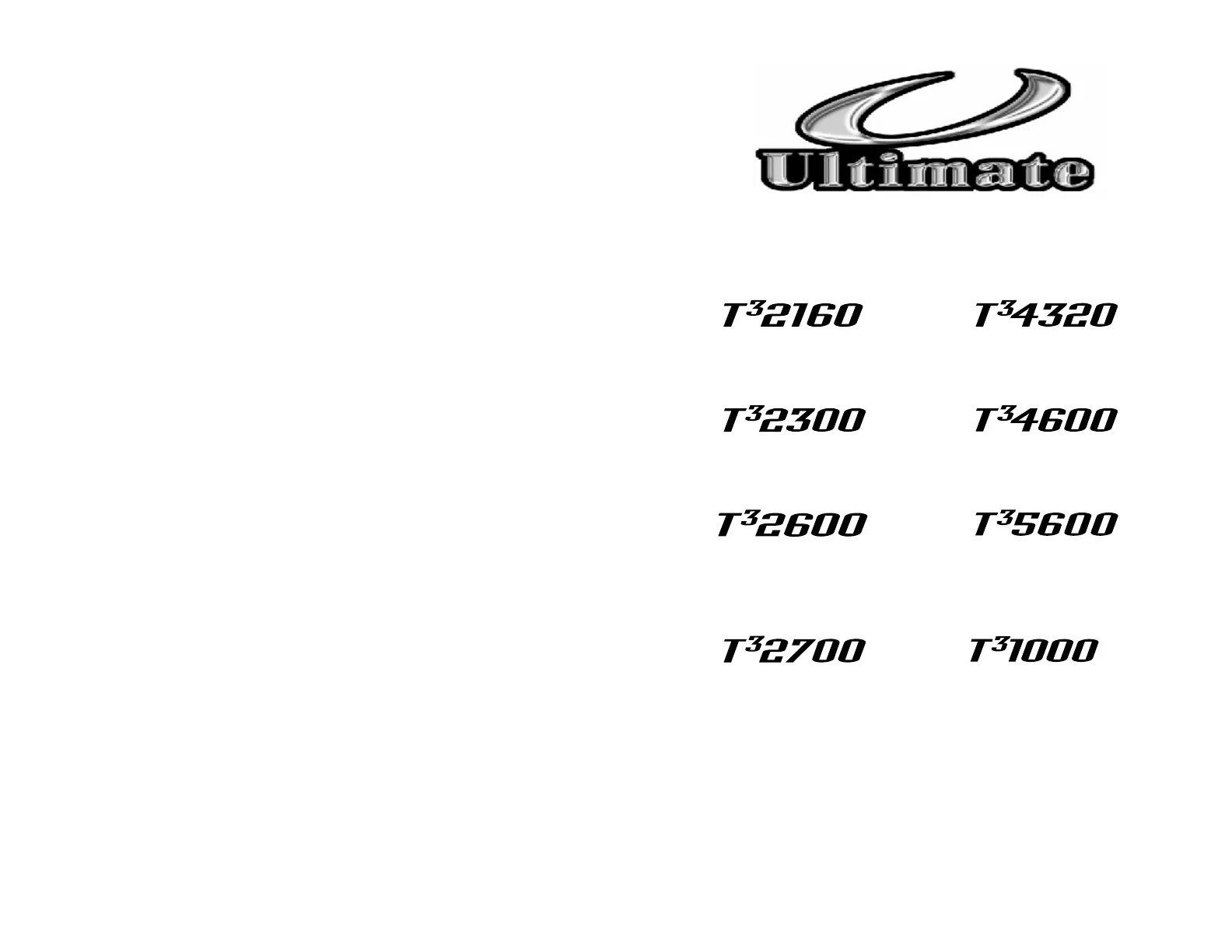

MOBILE POWER AMPLIFIERS
2 X 165 WATT
2 CHANNEL AMPLIFIER
4 X 140 WATT
4 CHANNEL AMPLIFIER
2 X 250 WATT
2 CHANNEL AMPLIFIER
4 X 250 WATT
4 CHANNEL AMPLIFIER
2 X 425 WATT
2 CHANNEL AMPLIFIER
4 X 150 WATT
1 X 300 WATT
5 CHANNEL AMPLIFIER
2 X 600 WATT
2 CHANNEL AMPLIFIER
1 X 540 WATT
1 CHANNEL AMPLIFIER
Ultimate Sound,Inc.
163 University Parkway
Pomona, CA 91768 USA
Tel: 909-594-2604
Fax: 909-594-0191
E mail : technicalsupport@ultimate-sound.com
WWW.ULTIMAT
E
-
SOUND.CO
M
Ultimate Europe AB
Flojelbergsgatan 7A S-431 37
Molndal, Sweden
Tel : 46-31 87 64 50
Fax : 46-31 87 20 04
E mail : europeansupport@ultimate-europe.com
INTRODUCTION
I. Description
This device is a high power, audio amplifier. Use it responsibly. Very
loud music can cause permanent hearing loss. This amplifier is intended
for installation in vehicles with a 12-Volt, negative ground electrical
system. Attempting to connect or operate the amplifier in another type of
electrical system may cause damage to the amplifier or the electrical
system.
II. About This Manual
Read the Instructions-
Be sure that you have read all operating instructions and understand all
safety precautions before installing and operating the amplifier. We
recommend that you have your T3 series amplifier installed by a
specialist.
Follow the Instructions-
The instructions are intended to help you safely obtain the best
performance from the amplifier. Carefully follow all installation and
operating instructions.
Save the Operating Manual-
Keep the manual in a safe place after installing the amplifier. You may
have questions later.
Text Conventions used in this Manual-
Bold-
Headings and important information.
Bold, Underlined-
Very important information.
"Bold"-
As labeled on the amplifier, or quoted from elsewhere in this
manual.
III. Safety and Operating Precautions-
Caution!
This symbol warns the user of a potential risk or hazard if instructions are
not followed.
⇒ This arrow symbol points to a specific instruction for avoiding a
potential hazard.
ii
1
1. Installation
1.1 Installation- Mounting the Amplifier
Step 1- Disconnect the negative (-) battery cable before mounting the
amplifier or making any connections. Check the battery and alternator
ground (-) connections. Make sure they are properly connected and free of
corrosion
Step 2- Choose a mounting location for your amplifier. Find a location on a
flat surface away from heat and moisture. Be sure the mounting location and
the drilling of pilot holes for mounting will not present a hazard to any
wires, control cables, fuel lines, fuel tanks, hydraulic lines, or other vehicle
systems or components. Common mounting locations are under the front
passenger seat, or in the trunk area. Choose a location with unimpaired air
circulation. The amplifier will dissipate heat more efficiently if mounted
vertically.
Step 3- Use the supplied screws. Place the amplifier in the mounting
location, and mark the positions of the holes with a marker, pen or pencil.
Carefully drill the mounting holes in the marked positions.
Caution!
⇒ Check carefully before drilling any pilot holes.
Step 4- Use the supplied mounting screws to securely fasten the amplifier to
the mounting surface.
1.2 Installation- Power Connections
Step 1- Run a power cable from the battery to the amplifier mounting
location. Use rubber grommets to protect the cable anywhere it has to go
through metal.
T3 4600,T3 4320,T3 2700,T3 2600,T3 2300,T3 5600,T3 1000 Use #8 AWG
or larger power and ground cable.
T3 2160 - Use #10 AWG or larger power and ground cable.
Step 2- Connect one end of an in-line fuse holder to the power cable.
Connect the other end of the fuse holder to the positive battery post with 20
cm (or less) of the same cable. This fuse location will protect the system and
the vehicle against the possibility of a short circuit in the power cable. Be
sure to use a fuse and fuse holder adequate for the application. Do not place
a fuse in the holder at this time.
The maximum fuse rating for each amplifier in the T3 series is:
T3 4600 -2 X 30 A. T3 4320 - 30 A T3 2700 -2 X 30 A.
T3 2600 -2 X 25 A. T3 2300 - 30 A. T3 2160 -15 A.
T3 5600 -3 X 25 A. T3 1000 -2 X 20 A.
Produktspecifikationer
| Varumärke: | Ultimate |
| Kategori: | bilradio |
| Modell: | t3 5600 |
