MX-0808-H2A-MK2 Quickstart Guide | 210331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

1 of 4

4K HDR 8x8 Pure HDMI Matrix with Scaling Outputs,

Audio De-embed & ARC

MX-0808-H2A-MK2 Quickstart Guide

WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the

installation process.

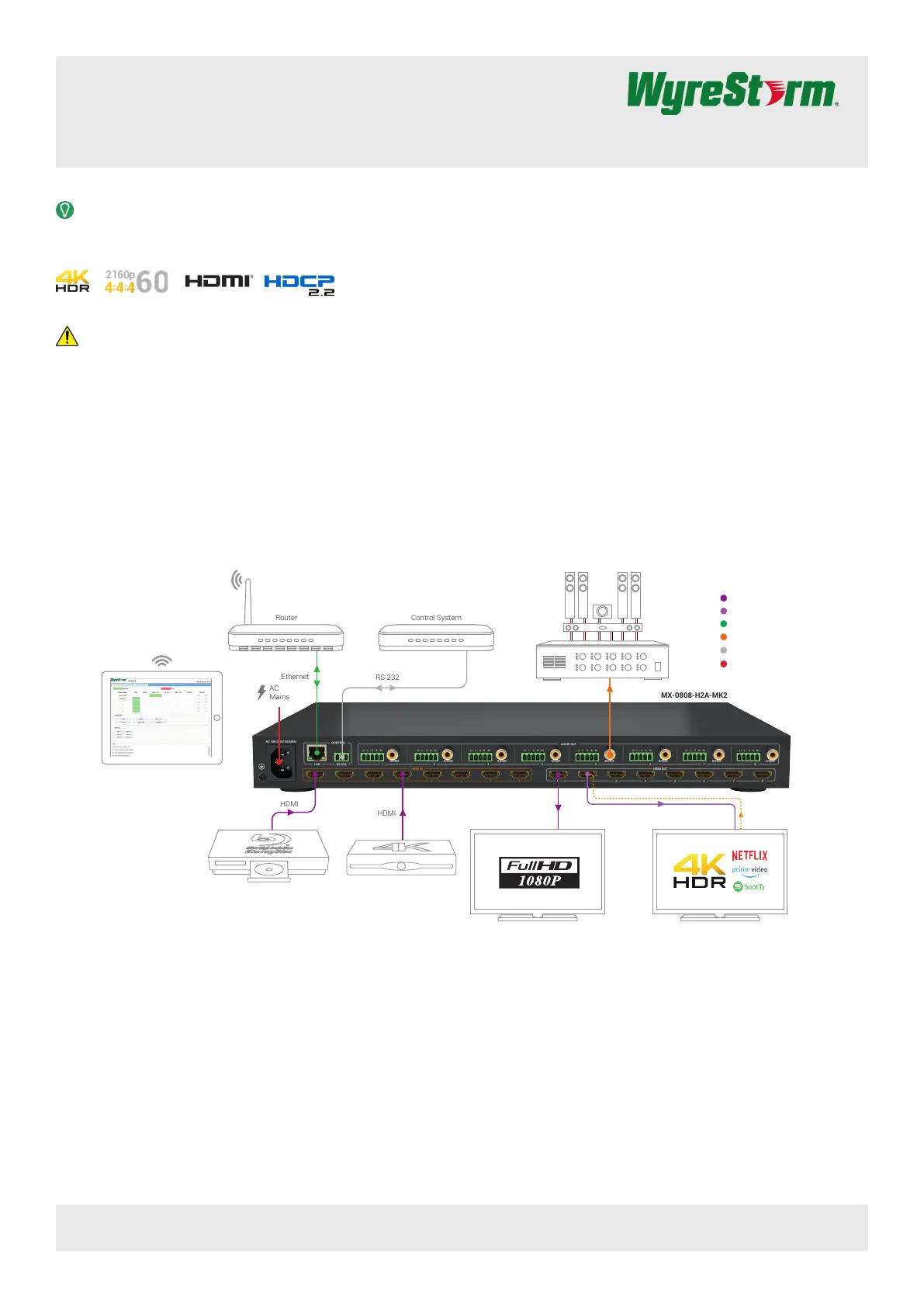

Basic Wiring Diagram

IMPORTANT! Installation Requirements

• Visit the product page to download the latest rmware, document version,

additional documentation, and conguration tools.

• Read through the section for important wiring

Wiring and Connections

guidelines before creating or choosing premade cables.

• While this product supports CEC, WyreStorm cannot guarantee

compatibility with all forms of CEC communication.

In the Box

1x MX-0808-H2A-MK2 Matrix

1x AC Power Cord (US/UK/EU/AU)

8x 3.5mm 5-Pin Terminal Block

1x 3.5mm 3-Pin Terminal Block

1x IR Remote (CR2025 Battery not Included)

2x Matrix Mounting Brackets with screws

1x Quickstart Guide (this document)

HDR Source HDR Source

1080p Display

HDMI

HDR Display

Ampliﬁer

Digtial Audio

KEY

Passive HDMI

Active HDMI

Ethernet

Control

Active HDMI (CAB-HAOC-xx)

Runs of 10m/33ft or more

Power

Digital Audio

Built-in Web UI for Configuration and Control

Requires connection to LAN (Local Area Network)

Audio Return

Channel

MX-0808-H2A-MK2 Quickstart Guide | 210331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

2 of 4

Wiring and Connections

WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in its

entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.

IMPORTANT! Wiring Guidelines

• The use of patch panels, wall plates, cable extenders, kinks in cables, and

electrical or environmental interference will have an adverse effect on

signal transmission which may limit performance. Steps should be taken

to minimize or remove these factors completely during installation for best

results.

• WyreStorm recommends using pre-terminated HDMI due to the complexity

of these connector types. Using pre-terminated cables will ensure that

these connections are accurate and will not interfere with the performance

of the product.

RS-232 Wiring

Most control systems and computers are DTE where pin 2 is RX, this can vary from device to device. Refer to the documentation for the connected device for pin

functionally to ensure that the correct connections can be made.

3rd Party Device

Pin 1 TX (Transmit) > To > RX (Receive)--- ---

Pin 2 RX (Receive) > To > TX (Transmit)--- ---

Pin 3 G (Gro d) > To > G (Gro d)un --- --- un

WyreStorm Co ectornn

Audio Wiring

This matrix contains audio connections for Digital Audio.

Tip: Audio Postive (+)

Shield: Audio Negative (-)

This matrix contains audio connections for Analog Audio.

3rd Party Device

Pin 1 Left Positve (L+) > To > Left Positive (L+)--- ---

Pin 2 Left Negative (L-) > To > Left Negative (L-)--- ---

Pin 3 Gro d (G) > To > Gro d (G)un --- --- un

Pin 4

Right Positive (R+) > To > Right Positive (R+)--- ---Pin 5

Right Negative (R-) > To > Right Neg ive (R-)--- --- at

WyreStorm Co ectornn

MX-0808-H2A-MK2 Quickstart Guide | 210331

UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)

support@wyrestorm.com

3 of 4

Accessing the Web UI

This matrix uses an Auto IP method to generate the initial IP address based on the network connections. By default the IP address is set to DHCP and will pull

the IP address from a connected DHCP server. Should the network not contain a DHCP server the IP address will be generated based on the units mac address.

The above operation will occur unless the IP Address setting in the web UI is set to static.

1. Connect the matrix to the same network as a PC.

2. Using a 3rd party network scanner, scan the network for the IP address of

the matrix.

3. Open a web browser and enter the IP Address of the matrix.

4. Enter the password for the matrix. Default Password: admin

IP Address Notes

• The IP address of the unit can be displayed by pressing and holding the UP

and buttons on the front panel for 3 seconds. The IP address will be Down

displayed on the front panel.

• The installer password and general password are the same by default.

WyreStorm recommends changing the password for installer login to avoid

any unwanted changes being made to the matrix conguration.

Low Power Mode (Standby)

This matrix contains a Low Power Mode that will place the unit into Standby using less power than normal operating mode. While in this mode the Front Panel

display and LEDs will be Off and outputs will be powered down. Once a command is sent via the Front Panel buttons, IR remote/control system, or RS-232/

IP control system the unit will wake from Standby and be fully operational. The unit can be placed back into standby via the Web UI or by sending an API

command as described in the following sections.

Enabling Low Power Mode via Web UI

1. Access the Web UI. Refer to .

Accessing the Web UI

2. Navigate to the Settings tab within the Admin section of the Web UI. Default

password is admin.

3. Under Low Power Mode, select On to enable.

Enabling via RS-232/IP

Refer to the products API document for information on Com port and IP

addressing settings.

• To place the unit into Standby send the command STANDBY<CR><LF>.

• To remove the unit from Standby send the command WAKE<CR><LF>.
