4K HDR HDMI-Over-HDBaseT Receiver
with HDCP 2.2 and PoH
RXV-70-4K-G2 v1 Quickstart Guide
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-4K-G2 v1 Quickstart Guide | 190620
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email: support@wyrestorm.com
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features before beginning the
installation process.

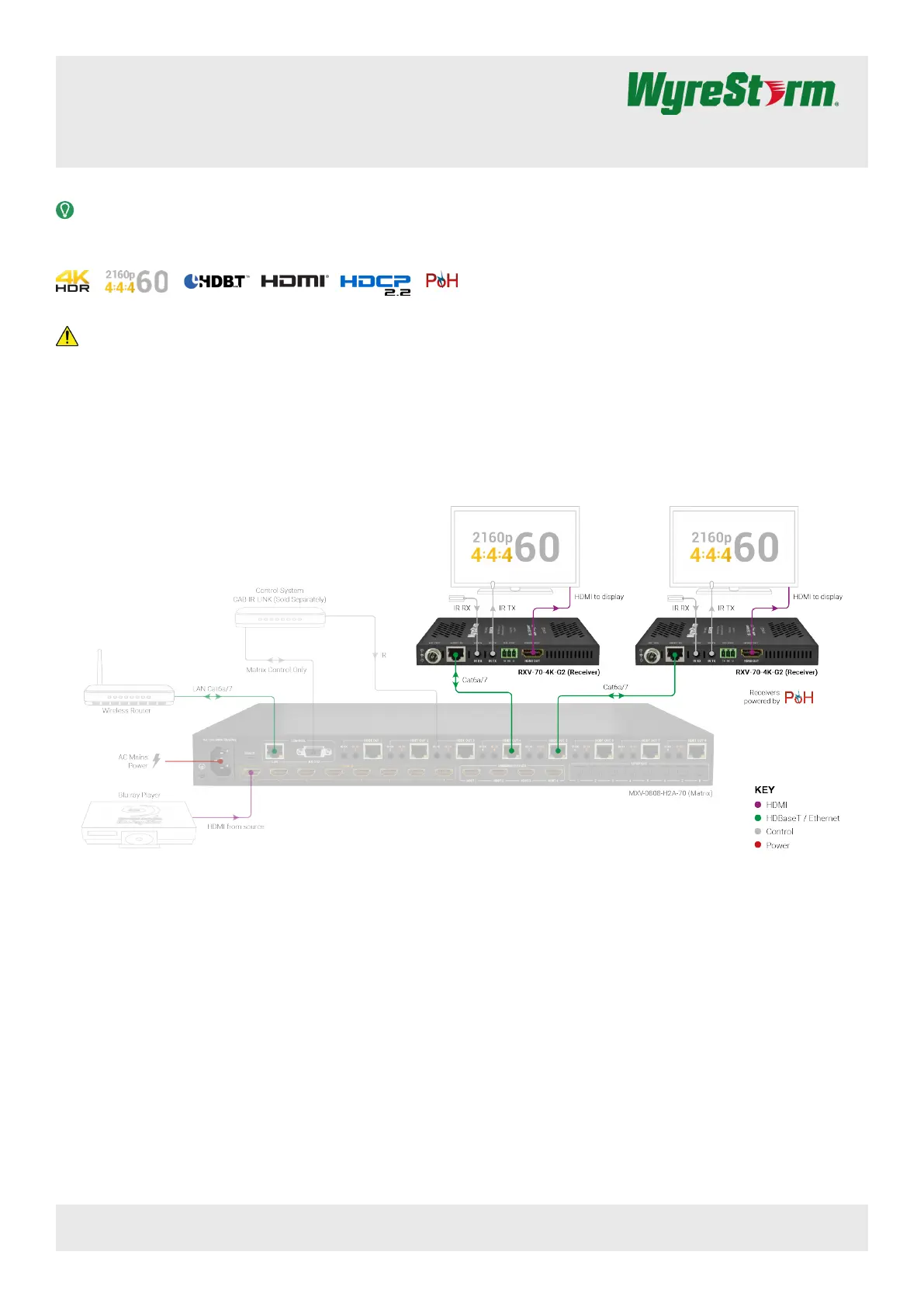

Basic Wiring Diagram
IMPORTANT! Installation Requirements
• Visit the product page to download the latest rmware, document versions,
additional documentation, and conguration tools.
• Read through the section for important wiring Wiring and Connections
guidelines before creating or choosing premade cables.
• While this product supports CEC, WyreStorm cannot guarantee
compatibility with all forms of CEC communication.
In the Box
1x RXV-70-4K-G2 Receiver
1x Wide-band IR Emitter
1x Wide-band IR Receiver (30-50KHz)
2x Mounting Brackets
1x 3-pin Terminal Block
1x Quickstart Guide (this document)
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-4K-G2 v1 Quickstart Guide | 190620
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email: support@wyrestorm.com
2 of 4
Front Panel Rear Panel
Power LED Solid: The receiver is powered On
Off: The receiver is powered Off
Status LED Flashing: The receiver is operating normally.
Off: The receiver is Not operating normally.
HDCP LED
Solid: HDCP content is present.
Flashing: HDCP content is not present.
Off: No signal.
LINK LED
Solid: Link to receiver has been established.
Flashing: Link to receiver has not been
established.
Power Input
5.5mm Screw Down Barrel Jack
Connect to the included 18V DC 1A power
supply to the transmitter or receiver. A power
supply is not required on the other end as it
will be powered using PoH.
HDBT In
8-pin RJ-45 female
Connect the matrix HDBT Out to
receivers HDBT In.
IR TX
IR RX
IR TX - 3.5mm (1/8in) Mono Jack: Connect
to the supplied IR emitter to control a local
device from the remote display location via
HDBaseT
IR RX - 3.5mm (1/8in) Stereo Jack: Connect
to the supplied IR receiver to send IR to the
remote display location via HDBaseT.
See for more IR TX/RX Guidelines
information.
RS-232 1x RS-232: 3-pin Phoenix
HDMI Out 19-pin type A HDMI female
Supports HDMI and DVI/D with adapter
Copyright © 2019 WyreStorm Technologies | wyrestorm.com
RXV-70-4K-G2 v1 Quickstart Guide | 190620
UK: +44 (0) 1793 230 343 | ROW: 844.280.WYRE (9973)
Email: support@wyrestorm.com
3 of 4
Wiring and Connections
WyreStorm recommends that all wiring for the installation is run and terminated prior to making connections to the switcher. Read through this section in it’s
entirety before running or terminating the wires to ensure proper operation and to avoid damaging equipment.
IMPORTANT! Wiring Guidelines
• The use of patch panels, wall plates, cable extenders, kinks in cables, and
electrical or environmental interference will have an adverse effect on
signal transmission which may limit performance. Steps should be taken
to minimize or remove these factors completely during installation for best
results.
• WyreStorm recommends the use of shielded category cable to minimize
signal noise and interference.
• WyreStorm recommends using pre-terminated HDMI cables due to the
complexity of these connector types. Using pre-terminated cables will
ensure that these connections are accurate and will not interfere with the
performance of the product.
.
IR TX/RX Guidelines
• Using WyreStorm infrared emitters and receivers is the best way to ensure
that most IR coding formats are transmitted and received Other 3rd party
emitters and receivers can be used; however, these devices must operate in
the same manner as the WyreStorm devices.
• Due to differences in IR across 3rd party control systems their IR ports
should never be connected directly to a NetworkHD system as an
incompatibility may exist. WyreStorm offers a cable that compensates for
voltage differences as well adjusts for differences in the pins used within
the port. Refer to the product page for more information.CAB-IR-LINK
IR TX Port Pinout
Connection for IR TX (transmit) uses a 3.5mm (1/8in) mono plug.
Tip: Anode
Sleeve: Cathode (IR Signal)
IR RX Port Pinout
Connection for IR RX (receive) uses a 3.5mm (1/8in) stereo jack that outputs
+5V DC to power the included IR receiver.
Tip:
Ring: IR Signal
+5V DC
Sleeve: Ground (GND)
RS-232 Wiring
The RXV-70-4K-G2 uses a 3-pin RS-232 with no hardware ow control. Most
control systems and computers are DTE where pin 2 is RX, this can vary
from device to device. Refer to the documentation for the connected device
for pin functionally to ensure that the correct connections can be made.
3rd Party Device
Pin 1 TX (Transmit) > To > RX (Receive)--- ---
Pin 2 RX (Receive) > To > TX (Transmit)--- ---
Pin 3 G (Gro d) > To > G (Gro d)un --- --- un
WyreStorm Co ectornn
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the transmitter and receiver.
• Verify that the HDBaseT cable is properly terminated following EIA568B
standard.
• Verify that the output resolution of the source and display is supported by
this extender.
• If transmitting 3D or 4K, verify that the HDMI cables used are 3D or 4K rated.
• Verify that all source and HDBaseT connections are not loose and are
functioning properly.
No or Intermittent 3rd party Device Control
• Verify that the RS-232/Ethernet cables are properly terminated.
• Verify that emitters/receivers are compatible with WyreStorm IR.
• If using an IR control system, verify that it is connected using the CAB-IR-
LINK cable.
