1

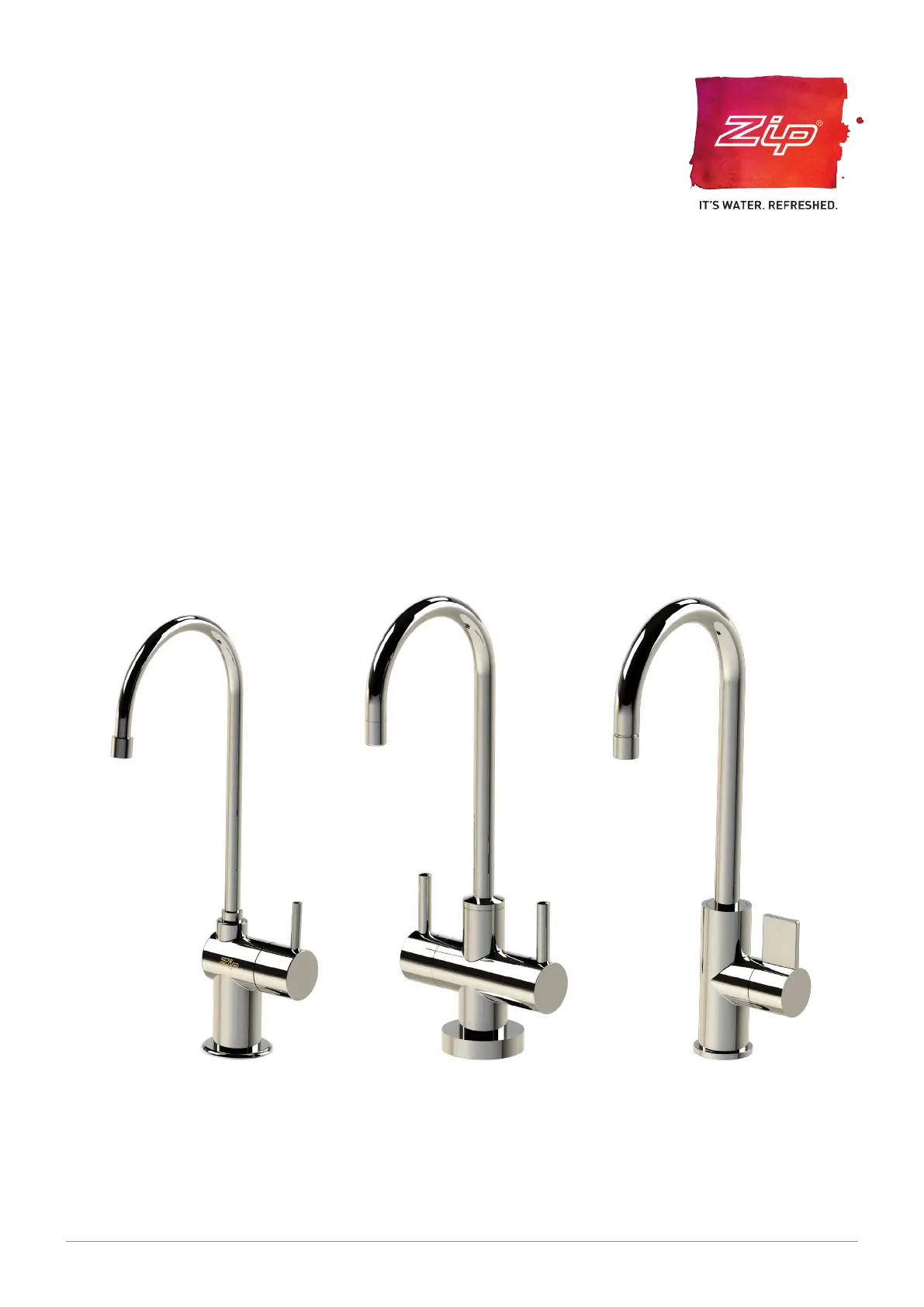

806143 - CW ChillTap UCCT 10.18 v1.03
Installation instructions & user manual
Zip
ChillTap
Filtered, chilled water on tap.
02 806143 - CW ChillTap UCCT 10.18 v1.03
Table of contents
ChillTap Specifications
Before Installation ........................................................................................................................... 3
Warnings and Precautions .............................................................................................................. 3
Technical Specification ................................................................................................................... 4
Installation Requirements ............................................................................................................... 4
Installation Instructions
Tap installation ................................................................................................................................ 5
Ventilation ....................................................................................................................................... 6-7
Chiller installation ............................................................................................................................ 8-9
Commissioning................................................................................................................................ 9
Operation & Maintenance ............................................................................................................... 10
Troubleshooting .............................................................................................................................. 11
Cleaning .......................................................................................................................................... 11
End of Life Disposal ........................................................................................................................ 11
Contact Details ................................................................................................................................ 12
03
806143 - CW ChillTap UCCT 10.18 v1.03
WARNINGS AND PRECAUTIONS
A. Read the instructions.
B. Note: All fittings are supplied with the appliance kit except an isolation valve.
C. Check the water quality to determine if extra filtration will be required.
D. Check the appliance rating plate and ensure correct power is available for the appliance.
E. Check the underbench cupboard supporting the appliance is adequate for the total weight and size of the appliance.
F. Ensure a potable water supply connection with isolating valve inside the cupboard is within reach of the braided
hoses and positioned so that the connection point and the stop cock will not be obstructed when the undersink units
are installed.
Note:
All plumbing must comply with AS/NZS 3500.4.1 & AS/NZS 3500.4.2
All electrical must comply with AS/NZS 3000 wiring rules
All refrigeration must comply with AS/NZS 3350.2.24
The plumbing installation must be done in accordance with local Water Authority regulations and these Installation
Instructions.
As the installer, it is your responsibility to supply (if necessary) and install all valves as required by local regulations and
relevant standards.
1. Please read all Precautions, Installation Requirements, Installation Instructions before installing any Zip ChillTap.
2. Never attempt to install any Zip ChillTap without reading all of the applicable instructions.
3. All electrical connections must comply with current wiring rules.
4. This appliance is not designed for use by young children or infirm people without supervision.
5. Young children should be prevented from having access to ensure they are not able to use or play with the chiller.
6. This appliance must be earthed.
7. If the power supply cord is damaged it must be replaced by a Zip Service Provider or a qualified electrician.
8. The power cord and general power outlet must be in a safe and accessible position after installation.
9. Do not remove the cover of the appliance under any circumstances without first isolating the appliance from the
power supply.
10. This unit is designed for indoor use and must not be installed outdoors or exposed to the elements of nature.
11. This unit must not be positioned in an area that may be cleaned by a water jet.
12. This unit must not be cleaned by a water jet.
13. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. For products sold in Europe, this appliance
can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure
that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
14. This appliance is intended to be used in: staff kitchen areas in shops, offices and other working environments;
Farm houses and by clients in hotels, motels and other residential type environments; Bed and breakfast type
environments; Catering and similar non-retail applications.
15. The appliance must be placed in an upright position.
Before installation
