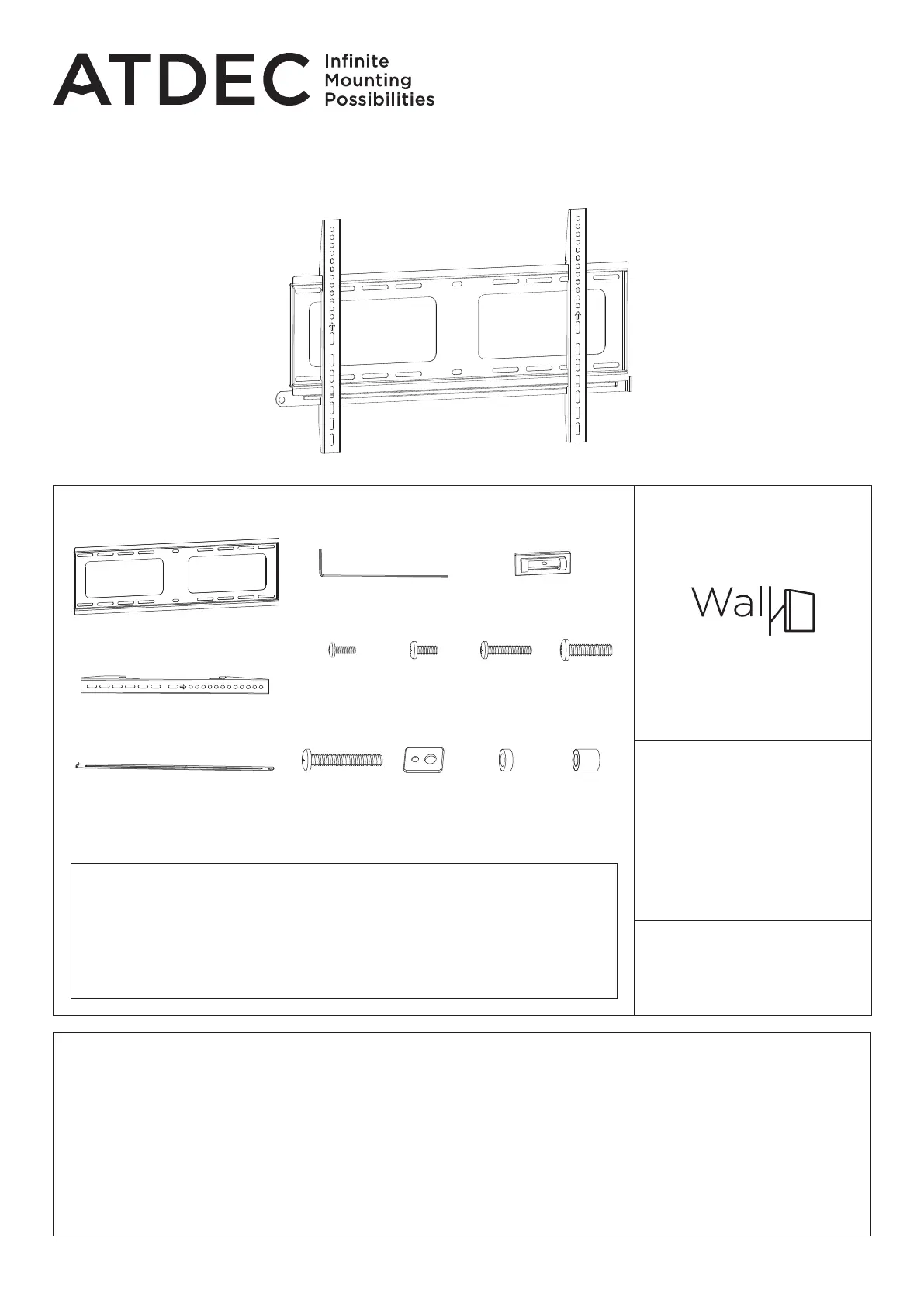

AD-WF-8060 Page 1 of 2
0 - 80kg
(0 - 176lb)
WEIGHT RANGE
Installation Guide
AD-WF-8060
Fixed Wall Mount 8060
A
Wall Plate
D
Hex Key
B
Display Brackets (x2)
C
Security Bar
M-G
Short
Spacer
(x8)
M-H
Long
Spacer
(x8)
M-F
Multi
Washer
(x4)
M-E
M8x50
Screw
(x4)
M-A
M5x14
Screw
(x4)
M-B
M6x14
Screw
(x4)
M-D
M8x30
Screw
(x4)
M-C
M6x30
Screw
(x4)
E
Spirit Level
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.
COMPONENT CHECKLIST
NOTE:
! Wall Plate Mounting Fasteners are supplied with Wall Mounts. NOT
Professional installer to ensure correct Mounting Fastener type, location &
quantity to suit structure where Wall Mount is installed.
! ALWAYS use a washer between the chosen fastener and the wall plate.
! Mounting fasteners to be used as per manufacturers instructions, including
minimum engagement to achieve necessary performance.
REQUIRED TOOLS
• Phillips head screwdriver
• Power drill
• Suitable drill bit
• Driver bit for selected
wall fasteners
• Stud nder
• Spirit level
AD-WF-8060 Page 2 of 2
D
E
Slot Dimension
Ø8 x 54mm
12 3
1. Mount the Wall Plate to the Wall
*Fasteners shown are not included
M-H (OPTIONAL)
SPACER HEIGHT (mm)
M-G (OPTIONAL)
M-A
M-B
M-C
M-D
M-E
(M5x14)
(M6x14)
(M6x30)
(M8x30)
(M8x50)
M-F
403530252015105
3. Hook and Secure the Display onto the Wall Plate ADJUSTMENTS
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20220323
NOTE:
• Choice and supply of appropriate wall plate fasteners is the
responsibility of the installer.
• Consult a preferred fastener supplier or a structural
engineer to select fasteners which are most appropriate for
the weight of the display and wall construction method.
• Wall plate be level. Verify using a quality spirit level must
tool or the included spirit level E.
• On a Stud Wall or Drywall use a good quality Stud Finder
to position mounting fasteners in the centre of studs.
• On a Masonry Wall avoid positioning Wall Plate mounting
fasteners in a mortar join.
2. Attach the Display Brackets to the Display
NOTE:
Ensure level adjustment screws are
retracted with Hex Key before D
attempting to mount display.
3.1. Angle the display and hook the Display Brackets over the top of the
Wall Plate. This should be completed by two people.
If needed, carefully turn the
screws at the top of each
display bracket clockwise
using Hex Key to level the D
display.
NOTE:
Support display whilst turning
the level adjustment screws.
Level Adjustment
3.2. CSlide Security Bar through
the slots at the bottom of each
Display Bracket, ensuring the
Security Bar sits to the rear of the
Wall Plate and the display cannot
be lifted up and off the Wall Plate.
3.3. (OPTIONAL) To prevent theft of
the display, add a padlock to
the end of Security Bar .C
C
Max. Ø11mm
NOTE:
• Always use multi-washers M-F.
• Ensure the display brackets are
not loose and screws are not
forced too deep into the display.
• If spacers are needed, use the
shortest possible combination
between the display bracket and
the display.
