Sida 1/2

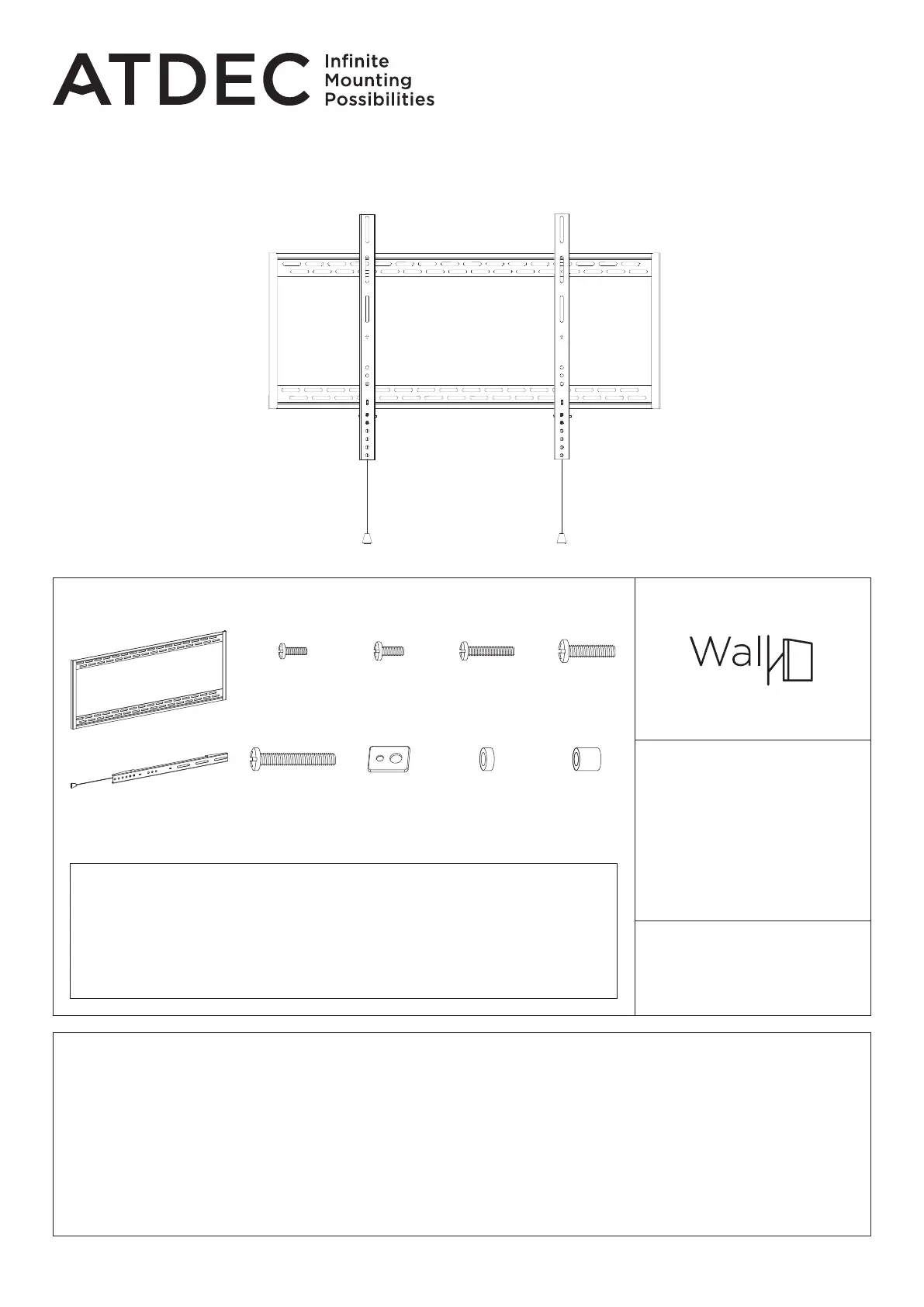

AD-WF-10090 Page 1 of 2
A
Wall Plate
B
Display Bracket (x2)
M-G
Short
Spacer
(x8)
M-H
Long
Spacer
(x8)
M-F
Multi
Washer
(x4)
M-D
M8x30
Screw
(x4)
M-B
M6x14
Screw
(x4)
M-A
M5x14
Screw
(x4)
M-C
M6x30
Screw
(x4)
M-E
M8x50
Screw
(x4)
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to mount this product correctly may cause serious injury/death during or following installation.
! This product is not suitable for outdoor use.
! Do not use this product for mobile applications.
! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.
! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total
weight of all equipment being mounted.
! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid
electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.
COMPONENT CHECKLIST
NOTE:
! Wall Plate Mounting Fasteners are supplied with Wall Mounts. NOT
Professional installer to ensure correct Mounting Fastener type, location &
quantity to suit structure where Wall Mount is installed.
! ALWAYS use a washer between the chosen fastener and the wall plate.
! Mounting fasteners to be used as per manufacturers instructions, including
minimum engagement to achieve necessary performance. 0 - 100kg
(0 - 220lb)
WEIGHT RANGE
Installation Guide
AD-WF-10090
Fixed Wall Mount 10090
REQUIRED TOOLS
• Phillips head screwdriver
• Power drill
• Suitable drill bit
• Driver bit for selected
wall fasteners
• Stud nder
• Spirit level
AD-WF-10090 Page 2 of 2
Slot Dimension
Ø8 x 46mm
12 3
1. Mount the Wall Plate to the Wall
*Fasteners shown are for example only
M-H (OPTIONAL)
SPACER HEIGHT (mm)
M-G (OPTIONAL)
M-A
M-B
M-C
M-D
M-E
(M5x14)
(M6x14)
(M6x30)
(M8x30)
(M8x50)
M-F
403530252015105
3. Hook the Display onto the Wall Plate 4. Check Security and Conceal Straps
3.1. Angle the display and hook the Display Brackets over
the top of the Wall Plate. This should be completed by
two people.
3.2. The silver locking tabs on the Display Brackets will
make a “click” sound to conrm a secure installation.
You may need to gently apply pressure to the
lower half of the display if this does not happen
automatically.
4.1. Gently pull the display forwards from bottom of the
display to ensure the the locking tabs have engaged
with the wall plate and the display cannot be tilted
upwards.
4.2. Conceal straps behind the display using the magnets
at the end of each strap to prevent accidental unlock
and dismount of the display.
NOTE:
Ensure the silver locking
tabs are pushed in prior
to mounting the display.
NOTE:
To unlock display from the Wall Plate for display removal
- retrieve the straps from their concealed position and pull
each strap down once briey until a “click” is heard.
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20220221
NOTE:
• Choice and supply of appropriate wall plate fasteners is the
responsibility of the installer.
• Consult a preferred fastener supplier or a structural engineer
to select fasteners which are most appropriate for the weight
of the display and wall construction method.
• Wall plate be level. Verify using a quality spirit level tool.must
• On a Stud Wall or Drywall use a good quality Stud Finder to
position mounting fasteners in the centre of studs.
• On a Masonry Wall avoid positioning Wall Plate mounting
fasteners in a mortar join.
NOTE:
• Always use multi-washers M-F.
• Ensure the display brackets are
not loose and screws are not
forced too deep into the display.
• If spacers are needed, use the
shortest possible combination
between the display bracket and
the display.
2. Attach the Display Brackets to the Display
