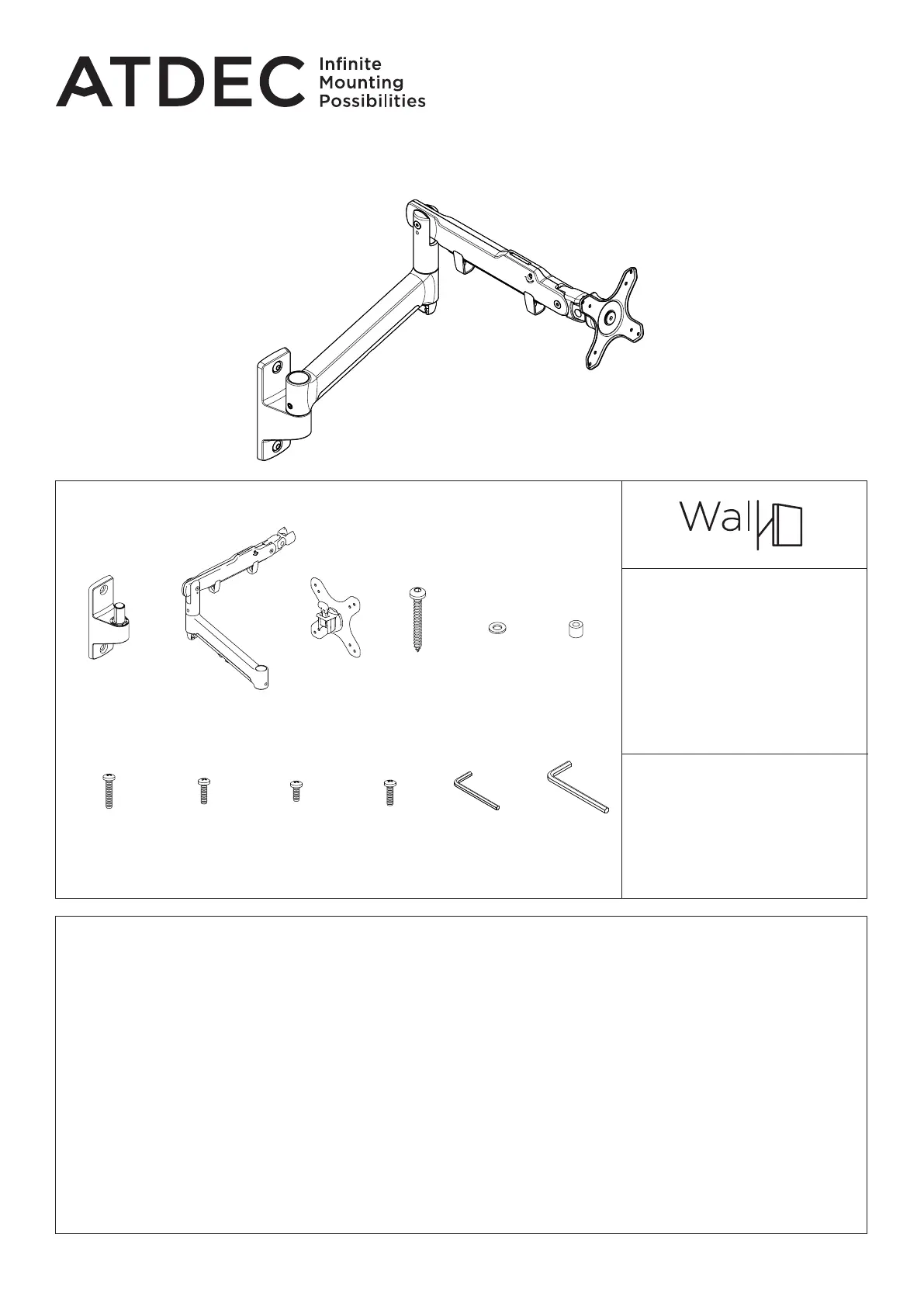

AWMS-DW Page 1 of 4

Installation Guide

AWMS-DW

Dynamic Arm Wall Mount

COMPONENT CHECKLIST

Single Wall

Bracket

(x1)

Screw

M4x25mm

(x4)

Screw

M4x16mm

(x4)

Screw

M4x12mm

(x4)

Spacer

(x4)

Security

Screw

(x1)

Washer

(x2)

Screw

M8x70mm

(x2)

4mm

Hex Key

(x1)

6mm

Hex Key

(x1)

VESA

Head

(x1)

Dynamic

Monitor Arm

(x1)

REQUIRED TOOLS

• Phillips head screwdriver

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

WEIGHT RANGE

Flat Monitor

0 - 9kg (0 - 20lb)

Curved Monitor

0 - 6kg (0 - 13.5lbs)

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Do not remove or throw away the plastic sleeve on wall bracket and arm links.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to install this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! This product should only be installed by professional installers of good mechanical aptitude, who have experience with

building construction, and fully understand these instructions and the consequences of incorrect installation.

! Supplied wall fasteners are for timber stud wall constructions . For other wall constructions, such as masonry, alternative only

suitable wall fasteners should be sourced by the installer.

! To safely achieve the full capacity of this product, wall fasteners must have a pull-out (tension) force rating of at least 100kg

(1000N) per fastener. This rating must include a safety factor.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts),

and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor

weight may be within the stated range. Please contact Atdec if you would like further information.

AWMS-DW Page 2 of 4

4.1 Check VESA mounting

compatibility.

3.1 Push arm onto the wall bracket

shaft. Ensure grub screw is retracted

before doing so.

4. Attach VESA head to monitor

1. Mount the Wall Bracket to the Wall

Using the

Single Wall

Bracket as

a template,

mark the

two xing

hole positions

for drilling.

NOTE: On a timber

stud wall, use a good

quality stud nder to

position mounting

fasteners in the

centre of studs.

NOTE: Wall bracket

must be level. Verify

using a quality spirit

level tool positioned

along the side edge

of the wall bracket.

NOTE:

• Alternative wall constructions, such as masonry,

will require different fasteners than what is

supplied with the product.

• Selection and sourcing of alternative wall mounting

fasteners is the responsibility of the installer. See

‘Important Information’ above for more details.

NOTE: Thickness of sheeting and cladding

over the timber stud, including plaster board,

should not exceed 15mm ( ”).⅝

70mm (2 3

4”)

Stud

32”)

4mm

Timber Stud

2. (Optional) Set arm rotation to 360°

Note rotation is set to 180 by default. This will protect the wall by preventing the arm swinging into it.°

2.1 Remove plastic

sleeve from wall

bracket

2.2 Remove

rotation ring.

2.3 Place rotation ring in

desired position and replace

plastic sleeve.

3. Fit arm to Single Wall Bracket

3.2 Ensure arm is fully

pushed onto bracket

3.3 Tighten the set screw with

4mm Hex Key to secure the arm

in place.

NOTE: Check

the joint

rotation is

smooth after

tightening.

NOTE:

Ensure

plastic

sleeve is on

shaft before

tting arm.

4.2 Attach VESA head onto monitor with

provided screws.

NOTE: Spacers may be required for curved,

recessed or uneven monitor surfaces.

100mm

75mm

100mm

75mm

NOTE: For other sizes, use a suitable

adaptor plate (sold separately).

180°

Default

Position

360°

Flipped

Position

Flush

Too long Too short

Spacer

5mm 12mm

NOTE: Be sure to use a screw

length that suits the monitor.

AWMS-DW Page 3 of 4

5. Mount monitor

5.1 Insert VESA head into the

monitor arm.

5.3 Push the lever down to

secure it to the arm assembly.

5.2 Ensure that the VESA head sits

ush within the monitor arm. There

should be gap.no

Monitor arm Gap No gap

6. Adjust tilt tension & Install security screw

Loosen

Tighten

6.1 Use the provided Hex Key to adjust the tilt tension until

the monitor holds in a vertical position at the end of the arm.

NOTE: Support

monitor while adjusting

6.2 (OPTIONAL) To install the optional security

screw tilt the head upwards.

7. Adjust arm tension

Heavier

Monitor

Lighter

Monitor

7.1 To accurately set the tension of the arm,

position the monitor at 90 degrees

7.2 Use the allen key to adjust the arm tension to the weight

of the monitor. Follow steps to set the tension.7.3 to 7.5

90°

7.3 If the monitor sags or falls down,

increase the arm tension by rotating

the screw clockwise.

7.5 If the monitor oats or hovers

in all positions the arm tension

is balanced and does not require

further adjustment.

7.4 If the monitor springs upwards

from the bottom position, decrease

the arm tension by rotating the

screw anti-clockwise.

Monitor Falls

(from top)

Increase Tension

Monitor ‘Floats’

(all positions)

Balanced

Monitor Springs

(from bottom)

Reduce Tension
