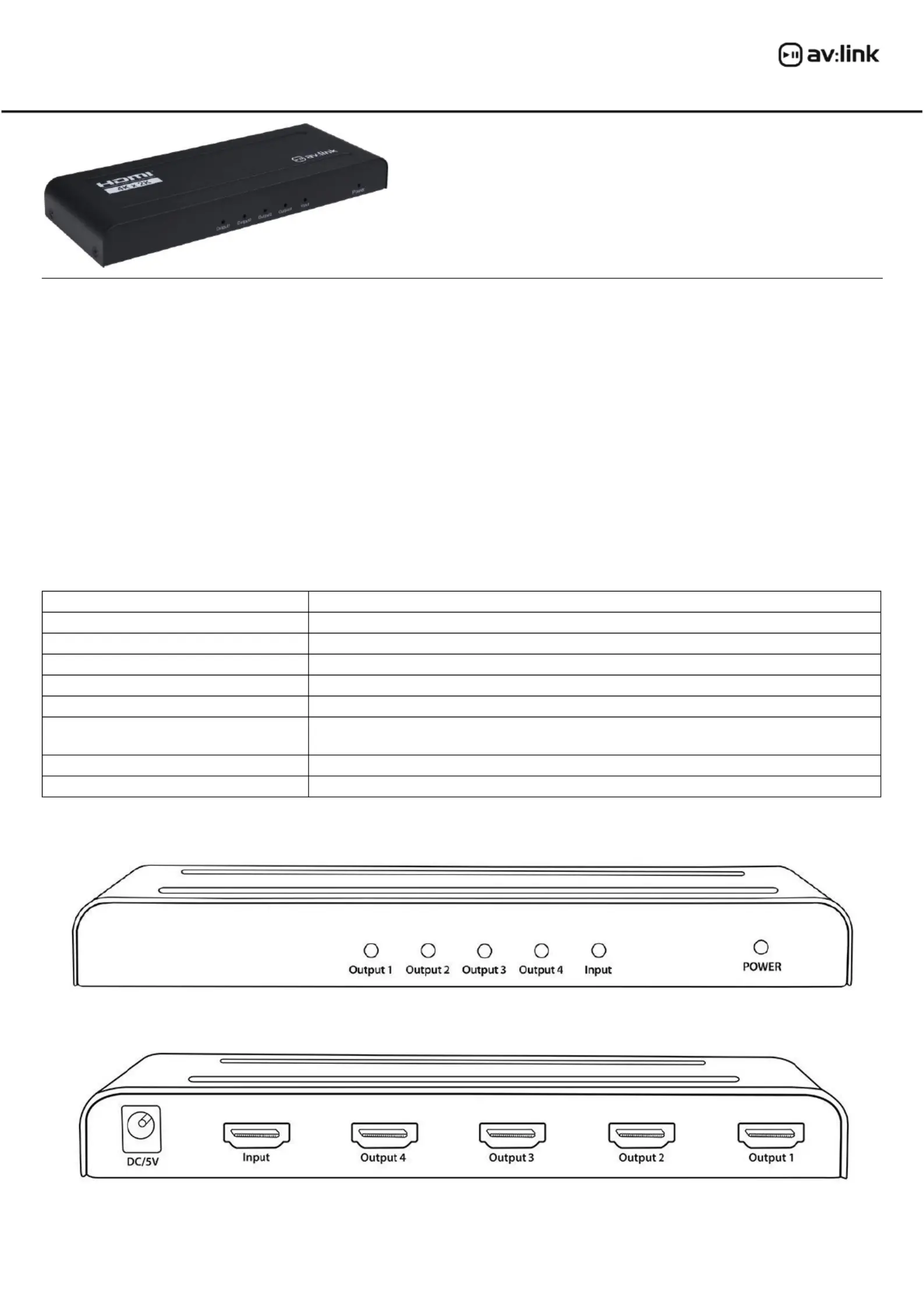

128.827 User Manual UK

4K HDMI Splitter 1x4

Item ref: 128.827 UK

User Manual

4K HDMI splitter to connect a single HDMI source to up to four displays at the same time. Use with HDMI

cables of a combined 25m per output for HD resolution, or a combined 16m per output for 4K resolution,

without signal loss.

• Simple connection and installation

• Gold plated HDMI connectors for optimum signal transfer

• Supports HDMI v1.4b resolutions up to 3840 x 2160 @ 30Hz

• Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats

• Ideal for entertainment, hospitality and other commercial venues requiring multiple display feeds from a

single HDMI source

• UK power adaptor supplied

Technical Specifications and Features

HDMI Version

1.4b

Video Resolution

Up to 3840 x 2160 @ 30Hz

Display Colours

8/10/12bit deep colour

Audio Format

DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD

Max. Bandwidth

340 MHz

Max. Baud Rate

3.4Gbps

Transmission Distance

25m max HD or 16m max 4K (15m input/10m output @ 1080p and 8m

input/output @ 4K)

Dimensions

178 x 66 x 20mm

Weight

220g

Front View

Back View

128.827 User Manual UK

Connection Instructions

• Connect the output of the source device to the input of the splitter. Use an HDMI cable of up to 10m for

HD signal or 8m for 4K signal. (NB: to maintain 4K resolution, always use 4K certified cables)

• Connect the outputs of the splitter to the inputs of the display devices. Use HDMI cables of up to 15m per

output for HD signal or 8m per output for 4K signal. (NB: to maintain 4K resolution, always use 4K

certified cables)

• Connect the 5V power adaptor (supplied) to the splitter; plug into a mains outlet and switch on.

• Green LEDs on front of the splitter will illuminate when the source and display devices are connected and

switched on.

In The Box

1. HDMI Splitter 1x4

2. 5V DC Power Adaptor

3. User Manual

Warning

• For reasons of electrical safety, this device must never be immersed in water, exposed to damp conditions

or excessive force.

• Do not use this device if you find that it is damaged in any way.

• Only use the power supply provided by the manufacturer.

• When not in use for long periods, disconnect the power supply from the mains.

• Do not attempt to repair this device or take apart under any circumstances, as this will invalidate your

warranty.

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at

the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.

Taylor Road, Trafford Park, Manchester. M41 7JQ. North Point Bus. Park, New Mallow Road, Cork, Ireland.
