AXAMP-CH8
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 2/7/25 INSTAXAMP-CH8
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties • Multimeter
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Adding Amp/Amps to a Factory System
Non-amplified 3 ......................................................
Amplified 4 ..............................................................
Rebooting the U-Connect Radio 5 ..........................
Troubleshooting: LED Feedback 6 ...........................
APPLICATIONS
Visit for current application list
AxxessInterfaces.com

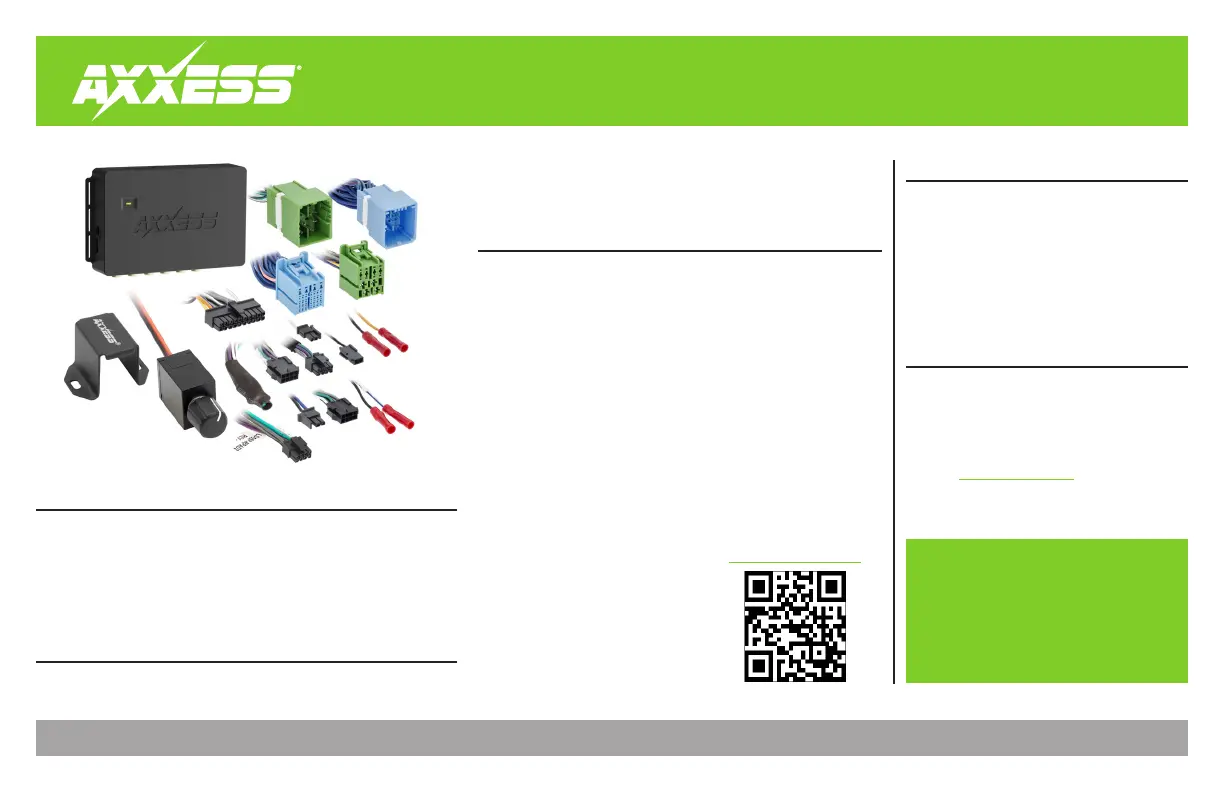

INTERFACE COMPONENTS
• AXAMP-CH8 Amplifier Integration interface
• AXAMP-CH8 vehicle T-harness
• Bass knob
Amplifier Integration Interface
Fits Chrysler Select Models
2021-Up
www.MetraOnline.com
• Designed for both amplified and non-amplified models
• Provides 6 channels of 5-volt RMS audio
• Channels 5 & 6 are non-fading full range output
• Includes plug-n-play harnessing
• Simple behind the radio installation
• Dual colored LED feedback
• Input Power handling 50 Watts per channel
• Amp on turn-on output is rated at 250mA
• 2 channel S/PDIF out (Fronts)
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• LD-DSP-RPAD2
For refer Dash Disassembly Instructions,
to Enter the year, make, metraonline.com.
and model of the vehicle in the Vehicle Fit
Guide for Radio Install kits.
Visit for more detailed AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications.
2
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether
amplified*or non-amplified. (Refer to )Page 3
* For amplified models the amp must be bypassed/unplugged. Refer to for
www.MetraOnline.com
the vehicle specific amplifier bypass harness.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. AXAMP-CH8 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXAMP-CH8 vehicle T-harness AXAMP-CH8 interface Plug the to the .
4. AXAMP-CH8 interface harness AXAMP-CH8 interface Plug the to the .
5. Connect the amp turn-on wire.
6. Adjust your aftermarket amplifier to a desired listening level.
7. The Bassknob is used to adjust the output of channels 5 & 6 of the AXAMP.
Adjustment is as follows:
Counterclockwise turn lowers the volume of channels 5 & 6.
Clockwise turn raises the volume of channels 5 & 6.
* For dash disassembly instructions, refer to Enter the year,
www.MetraOnline.com.
make, and model of the vehicle in the and find instructions under Vehicle Fit Guide
Metra Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 2/7/25 INSTAXAMP-CH8
ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM
8-Pin
2-Pin
DO NOT 2 Pin connect
LD-BASSKNOB
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB 2 PIN
20 PIN
CHIME VOL
UPDATE
PORT
Interface
R
LD-PAW-CH8
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UP DATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
2-Pin
RCA Cable
(sold separately)
If connecting multiple amps, Metra recommends incorporating
an ( ). Metra SPDT Relay part #: SPDT Relay not included E-123
SPDT Relay
Blue/White - Amp Turn-On Wire
FL
FR
RR
RL
LD-PAW-EXT
1 of 2
LD-PAW-EXT
2 of 2
Factory Radio Harness
32-Pin
12-Pin
Factory Radio Harness
Factory Radio
*BACK*
12-Pin 12-Pin
A
B
C
Connect to , then A B
C Resistor pad to the (LD-DSP-RPAD2).
LD-DSP-RPAD2
Non-amplified
A Toslink cable can
be used to provide 2
channel audio to an
amplifier/processor
**
CHIME VOLUME
VOL +VOL -
Chime volume is
used to lower and raise
backup/front sensor chimes.
**
Aux Ground output for accessories
TOSLINK
