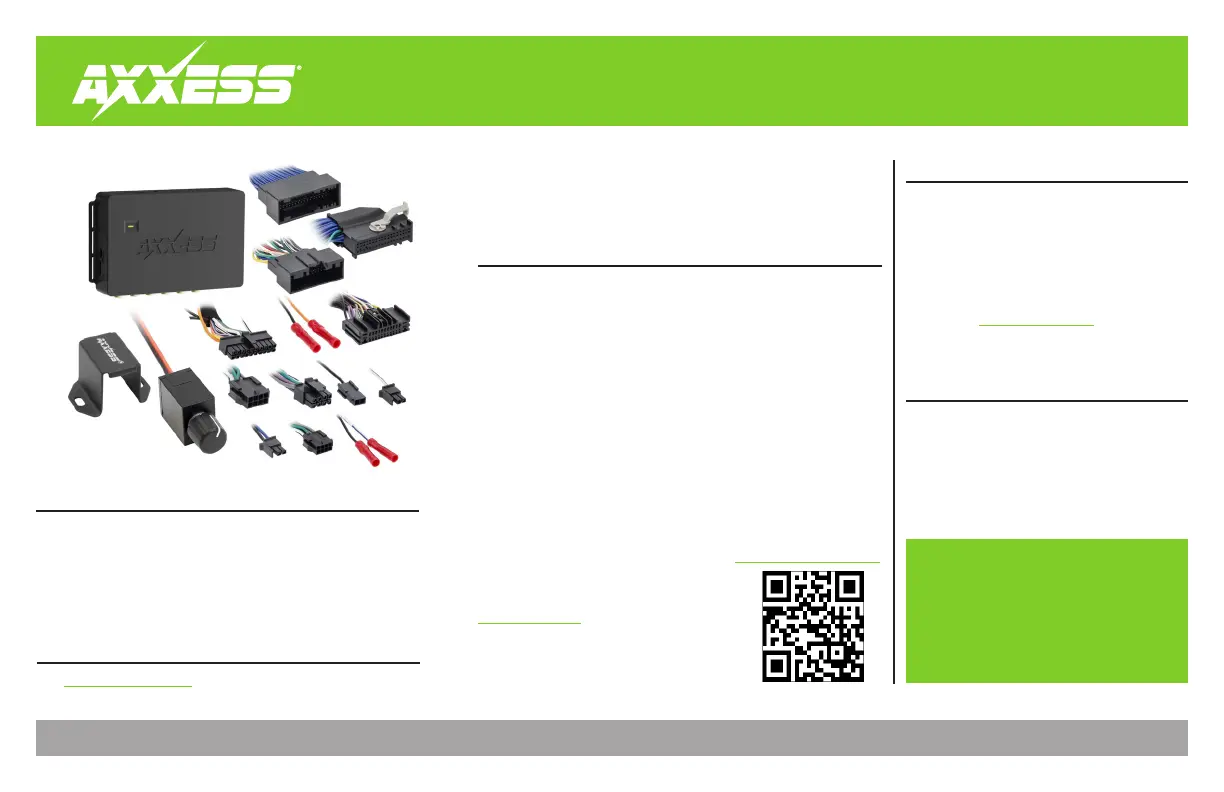

AXAMP-FD2
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 1/30/25 INSTAXAMP-FD2
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Adding Amp/Amps to a Factory System
Non-amplified 3 ......................................................
Amplified 4 ..............................................................
Troubleshooting: LED Feedback 6 ...........................
Amplifier Integration Interface
Fits Ford
2011-2023
• Designed for amplified and non-amplified models
• Provides 6 channels of 5-volt RMS audio
• Non-fading full range output (Channels 5 & 6)
• Includes plug-n-play harnessing
• Simple behind the radio installation
• Dual colored LED
• Input power handling 50 Watts per channel
• Amp turn-on trigger (DC) 250mA
• 2 channel S/PDIF out (Fronts)
APPLICATIONS
Visit for current application list
Axxessinterfaces.com
www.MetraOnline.com
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip ties
• Multimeter
ATTENTION: With the key out of the ignition, disconnect
the negative battery terminal before installing this
product. Ensure that all installation connections,
especially the air bag indicator lights, are plugged in
before reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• AXAMP-FD2 Amplifier Integration interface
• AXAMP-FD2 vehicle T-harness
• AXAMP-FD2 display T-harness
• Bass knob
Visit for more
AxxessInterfaces.com
detailed information about the product and
up-to-date vehicle specific applications.
For refer toDash Disassembly Instructions,
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
2
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether amplified*
or non-amplified. (Refer to )Page 3
* For amplified models the amp must be bypassed/unplugged. Refer to for www.MetraOnline.com
the vehicle specific amplifier bypass harness.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Remove the factory radio*, then unplug all connectors.
2. AXAMP-FD2 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3.
For NAV models only: AXAMP-FD2 display T-harness Install the to the vehicle and
make all necessary connections.
4. AXAMP-FD2 vehicle T-harness AXAMP-FD2 interface Plug the to the .
5. AXAMP-FD2 interface harness AXAMP-FD2 interface Plug the to the .
6 Connect the amp turn-on wire.
7.
The Bassknob is used to adjust the output of channels 5 & 6 of the AXAMP.
Adjustment is as follows:
Counterclockwise turn lowers the volume of channels 5 & 6.
Clockwise turn raises the volume of channels 5 & 6.
* For dash disassembly instructions, refer to . Enter the year, make,
metraonline.com
and model of the vehicle in the and find instructions under Vehicle Fit Guide Metra
Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 1/30/25 INSTAXAMP-FD2
A
2-Pin
DO NOT 2 Pin connect
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB 2 PIN
20 PIN
CHIME VOL
UPDATE
PORT
Interface
R
LD-PAW-FD2
2-Pin
RCA Cables
(sold separately)
8-Pin
Blue/White - Amp Turn-On Wire
FL
FR
RR
RL
LD-PAW-EXT
1 of 2
LD-PAW-EXT
2 of 2
B
C
Factory Radio
*BACK*
22-Pin
22-Pin
Factory Radio Harness
LD-BASSKNOB
Factory Radio
*SCREEN*
54-Pin 54-Pin
Connect to D ,F
disregard
E.
D
E
F
Connect to A .B
Disregard . connecter C
Voice Prompts (Navigation models)
*
Non-amplified
Chime volume
is not used in
this application.
A Toslink cable can
be used to provide 2
channel audio to an
amplifier/processor
**
Aux Ground output for accessories
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
If connecting multiple amps, Metra recommends incorporating
an ( ). Metra SPDT Relay part #: SPDT Relay not included E-123
SPDT Relay
**
TOSLINK

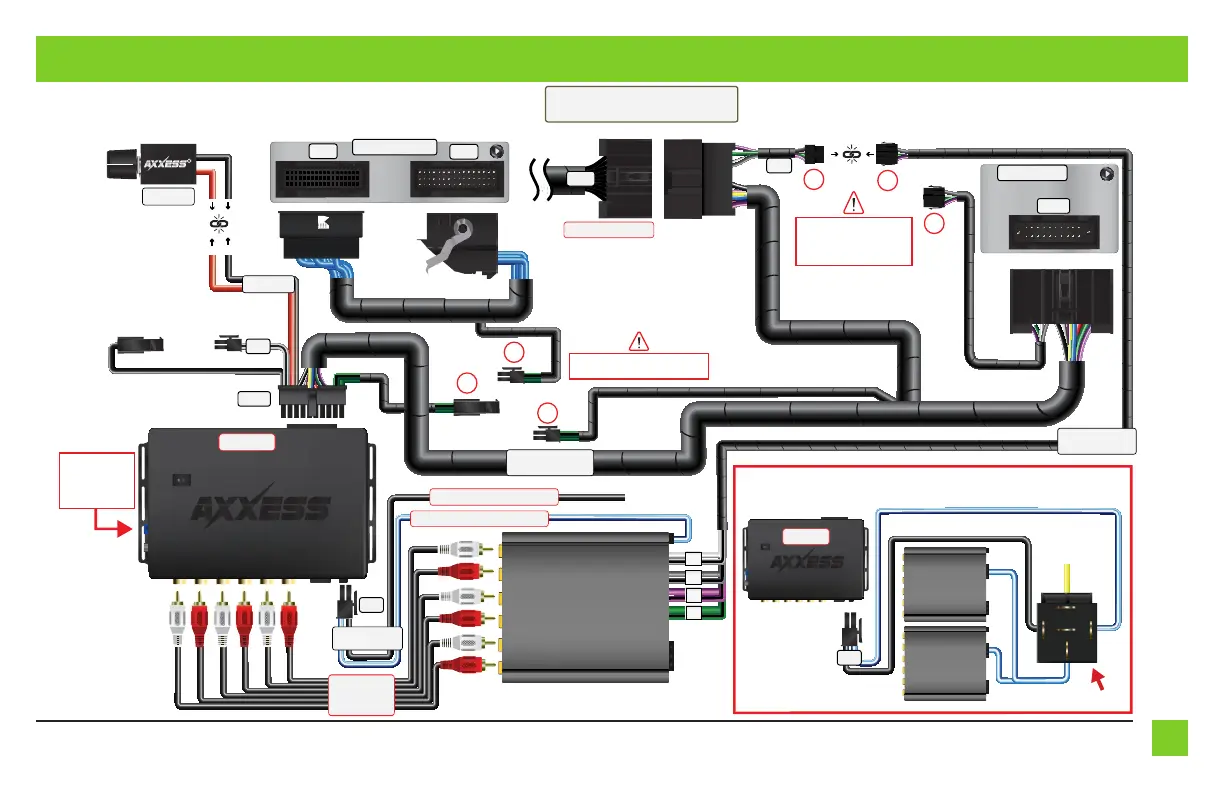

ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM
