AXBUCH-TYCAM26V
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 2/11/25 INSTAXBUCH-TYCAM26V
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
TABLE OF CONTENTS
Connections: LD-TYCAM2 2 ......................................
Back Up Camera Retention Harness
Fits Toyota
2006-2013
APPLICATIONS
• Retains the factory backup camera to an aftermarket radio
• Includes the AXCSD-6V 12-volt to 6-volt step-down converter
Toyota
4-Runner* 2012-2013 ......................................................................................
4-Runner 2006-2011 .......................................................................................
Avalon 2011-2012 .............................................................................................
Camry.............................................................................................2007-2011
Highlander 2008-2012 ....................................................................................
Prius 2010-2011 ................................................................................................
Sequoia* 2008-2012 .......................................................................................
Tundra* 2007-2013 ..........................................................................................
Venza (with NAV) 2009-2012 ........................................................................
*With Factory Amp

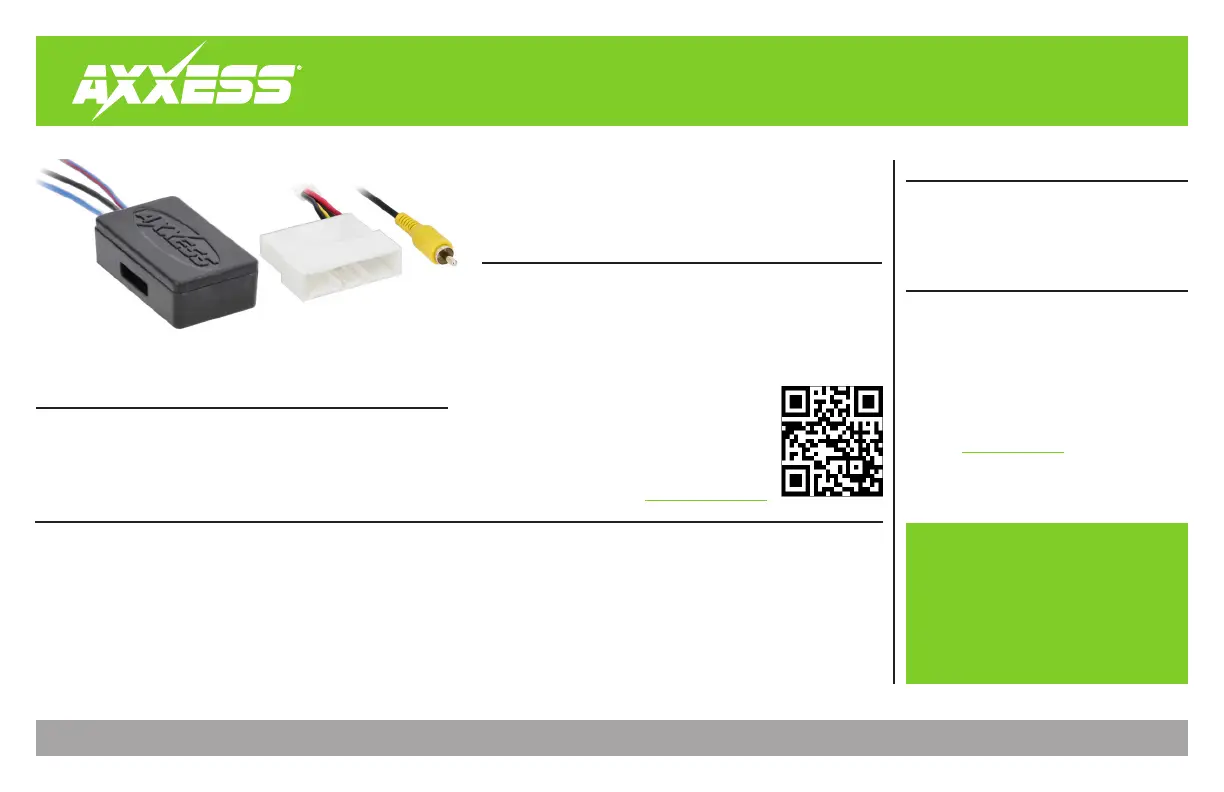

• AXBUCH-TYCAM26V harness
• AXCSD-6V 12-volt to 6-volt step-down converter Visit for more detailed
AxxessInterfaces.com
information about the product and up-to-date
vehicle specific applications.
www.MetraOnline.com
For refer toDash Disassembly Instructions,
metraonline.com. Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide for
Radio Install kits.
2

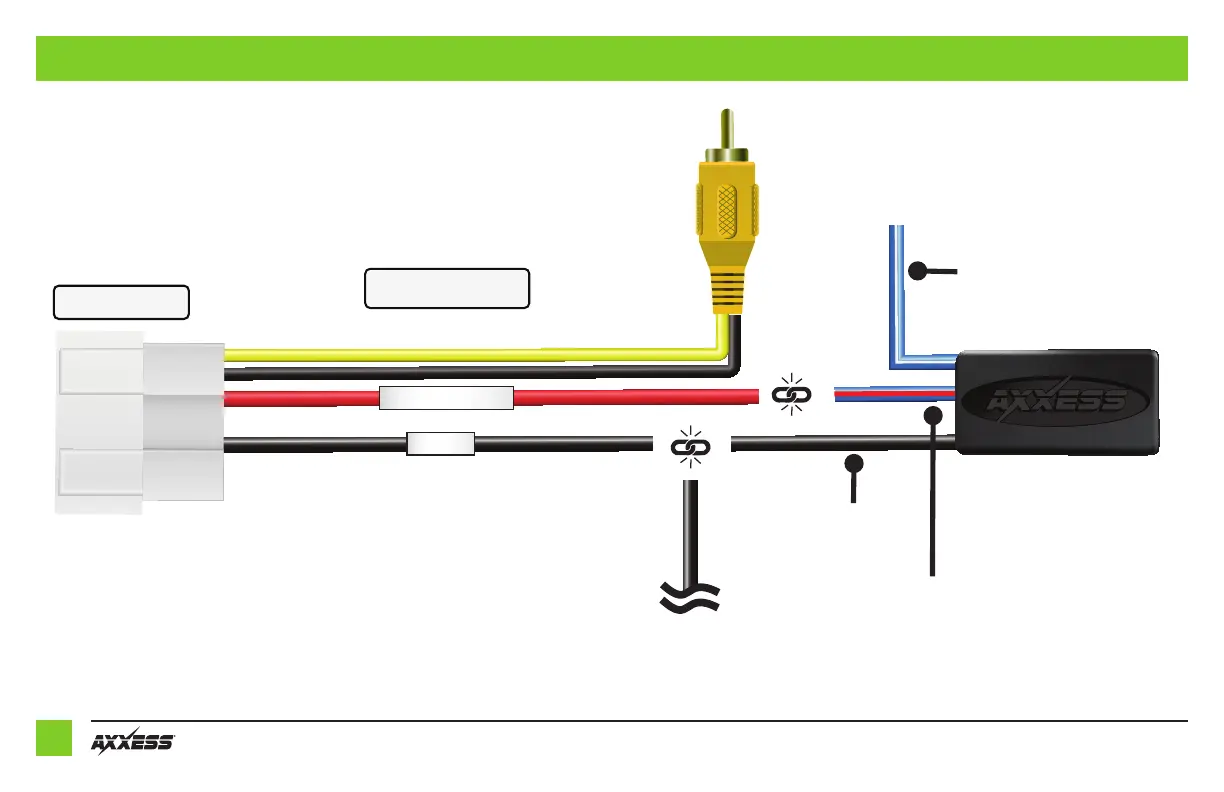

CONNECTIONS: LD-TYCAM2
LD-TYCAM2
Chassis ground
Vehicle Connector
AXCSD-6V
Black -
Chassis ground
Blue/Red -
Camera power
6V CAMERA POWER
GROUND
Blue/White - Reverse trigger input
(Connected to radio reverse
trigger input and interface
reverse trigger output)
12v Reverse Trigger Input
3
REV. 2/11/25 INSTAXBUCH-TYCAM26V
