AXAMP-TY4
I N S T A L L A T I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 2/5/25 INSTAXAMP-TY4
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape
• Wire cutter
• Zip-ties
• Multimeter
TABLE OF CONTENTS
Installation & Installation Options 2 ........................
Adding Amp(s) to a Factory System 3 ....................
Troubleshooting.....................................................4
APPLICATIONS
Visit for current application list
AxxessInterfaces.com
INTERFACE COMPONENTS
• AXAMP-TY4 Amplifier Integration interface
• AXAMP-TY4 vehicle T-harness
• Bass knob
Amplifier Integration Interface
Fits Toyota
2011-2022
www.MetraOnline.com
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• Designed for amplified models
• Provides 6 channels of 5-volt RMS audio
• Non-fading full range output (Channels 5 & 6)
• Includes plug-n-play harnessing
• Simple behind the radio installation
• No programming required
• Dual colored LED
• Input: 50 Watts per channel
• Amp turn-on trigger (DC) 250mA
• 2 channel S/PDIF out (Front)
For refer toDash Disassembly Instructions,
Metraonline.com . Enter the year, make, and
model of the vehicle in the Vehicle Fit Guide
for Radio Install kits.
2
Adding a full-range amplifier and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system.* (Refer to )Page 3
* For amplified models the amp must be bypassed/unplugged. Refer to for
www.MetraOnline.com
the vehicle specific amplifier bypass harness.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. AXAMP-TY4 vehicle T-harness Install the to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. AXAMP-TY4 vehicle T-harness AXAMP-TY4 interface Plug the to the .
4. AXAMP-TY4 interface harness AXAMP-TY4 interface Plug the to the .
5. Connect the amp turn-on wire.
6. Adjust your aftermarket amplifier to a desired listening level.
7. The Bassknob is used to adjust the output of channels 5 & 6 of the AXAMP.
Adjustment is as follows:
Counterclockwise turn lowers the volume of channels 5 & 6.
Clockwise turn raises the volume of channels 5 & 6.
* For dash disassembly instructions, refer to Enter the year,
.www.MetraOnline.com
make, and model of the vehicle in the and find instructions under Vehicle Fit Guide
Metra Radio Install kits.
INSTALLATION OPTIONS INSTALLATION
3
REV. 2/5/25 INSTAXAMP-TY4
LD-PAW-EXT
2 of 2
LD-BASSKNOB
LD-BASSKNOB
20-Pin
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSLINK
CHIME VOL
UPDATE
PORT
6-Pin
Factory Radio Harness
Interface
R
Factory Radio
*BACK*
RCA Cables
(sold separately)
Blue/White - Amp Turn-On Wire
LD-PAW-TY4
Factory Radio Harness
Factory Radio Harness
10-Pin
28-Pin
6-Pin 28-Pin 10-Pin
LED
FRONT
REAR
SUB 2 PIN
20 PIN
TOSS
LINK
CHIME VOL
UPDATE
PORT
Interface
2-Pin
30
86
85
87
To 12v
Constant
If connecting multiple amps, Metra recommends incorporating
an ( ). Metra SPDT Relay part #: SPDT Relay not included E-123
SPDT Relay
2-Pin
Chime volume
is not used in
this application.
*
A Toslink cable can
be used to provide 2
channel audio to an
amplifier/processor
*
**
Aux Ground output for accessories
To Amp
bypass harness

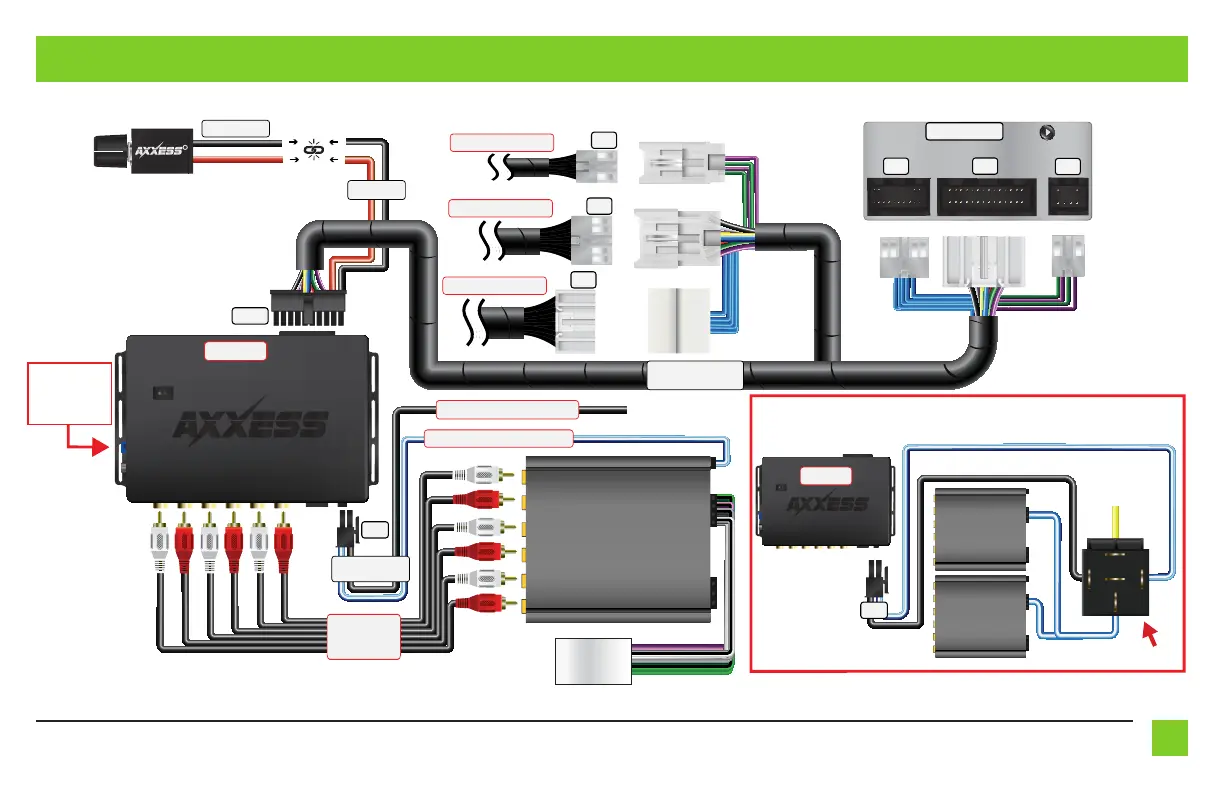

ADDING AMPLIFIER/AMPLIFIERS TO A FACTORY SYSTEM
