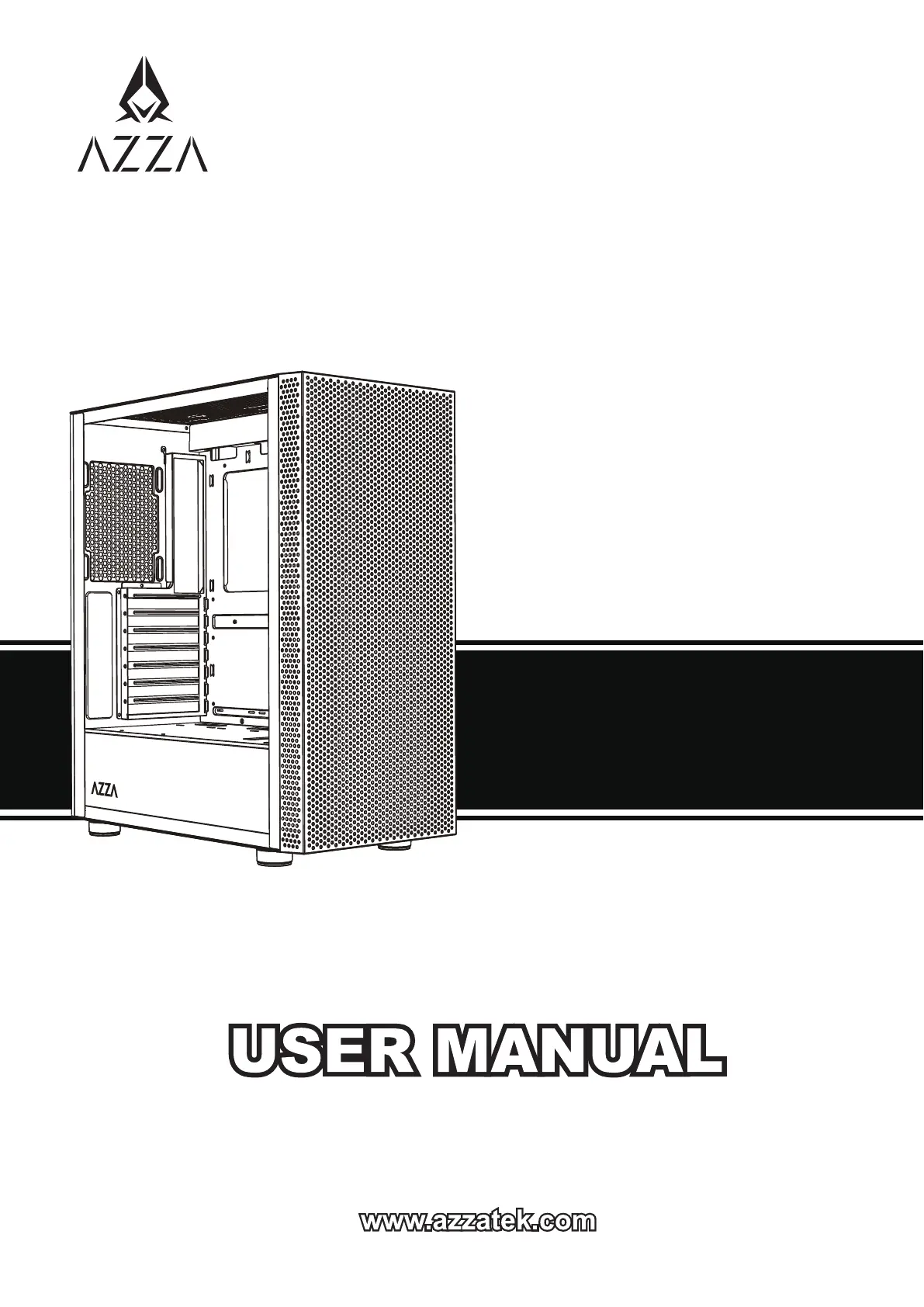

Celesta 340
Installation Instructions
1. Specifications
2. Chassis Parts
3. Control Panel Functions
4. 3.5”/2.5” HDD/SSD Installation
5. Cooling System Installation
6. ARGB Control Modes Switching
Specifications
Model
Model Name:
Model Number:
Specifications
Type: ATX Mid Tower
Color: Black/Black(interior)
Side Panel Window: Le side panel: tempered glass with rubber mounts
Max CPU Cooler Height: UP to 165mm
Max Video Card Length:
Power Supply: Not included
Motherboard Compa bility:<275mm EATX ATX Micro ATX ITX、 、 、
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays: Up to 4
Internal 3.5" Drive Bays: Up to 2
Expansion Slots: 7
Top Ports: Power bu on, reset bu on,led bu on, HD Audio, USB 3.0 x 1, USB2.0x2
Physical Specifications
Case Dimension (HxWxD)
Weight: 6kg /13.2lbs
Tempered Glass Sides Window: High-quality tempered glass side window allows for clear visuals to inner components
Addressable RGB Light E ects:ff
Addressable RGB light strip in the front controlled the lighng by the LED buon.
To synchronize all addressable RGB light devices, it needs to be switched to be controlled
only by the motherboard.
Available Fan Ports:
3x120mm or 3x140mm Fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm Fan port in the rear
Water Cooling:
The available fan included:
Supports radiators up to mm in the Front
280/360
Supports radiators up to mm in the Top 240
CSAZ-340F: Rear - 1 x Black fan
CSAZ-340 : Case only.
Dust Filters: Removable (magnetic) dustproof net on the top, steel dust filter on bottom of chassis.
Power Supply Support: Bo om mounted ATX Power Supply
Expansion
Features
478X210X400mm/18.8X8.3X15.7 inches
CELESTA 340
CSAZ-340/ CSAZ-340F
Up to 320mm long video card
Produktspecifikationer
| Varumärke: | AZZA |
| Kategori: | Computerbehuizing |
| Modell: | Celesta F |
