AZZA Luminous 110 Bruksanvisning
AZZA
Computerbehuizing
Luminous 110
Läs nedan 📖 manual på svenska för AZZA Luminous 110 (4 sidor) i kategorin Computerbehuizing. Denna guide var användbar för 4 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/4
1
2
3
7
8
5
6
4
1
2
3
4
5
6
7
8
Right side panel
RGB logo plate
Front panel
Left side tempered glass panel
Screws for side glass panel
2.5"SSD brackets X2
Power button
LED changes button
Power Indicator
Hard disk Indicator
Mic
Audio
USB2.0
USB3.0(Blue)
Optional USB type C slot
Removable (magnetic) dustproof net
L UM INOUS 11 0
6

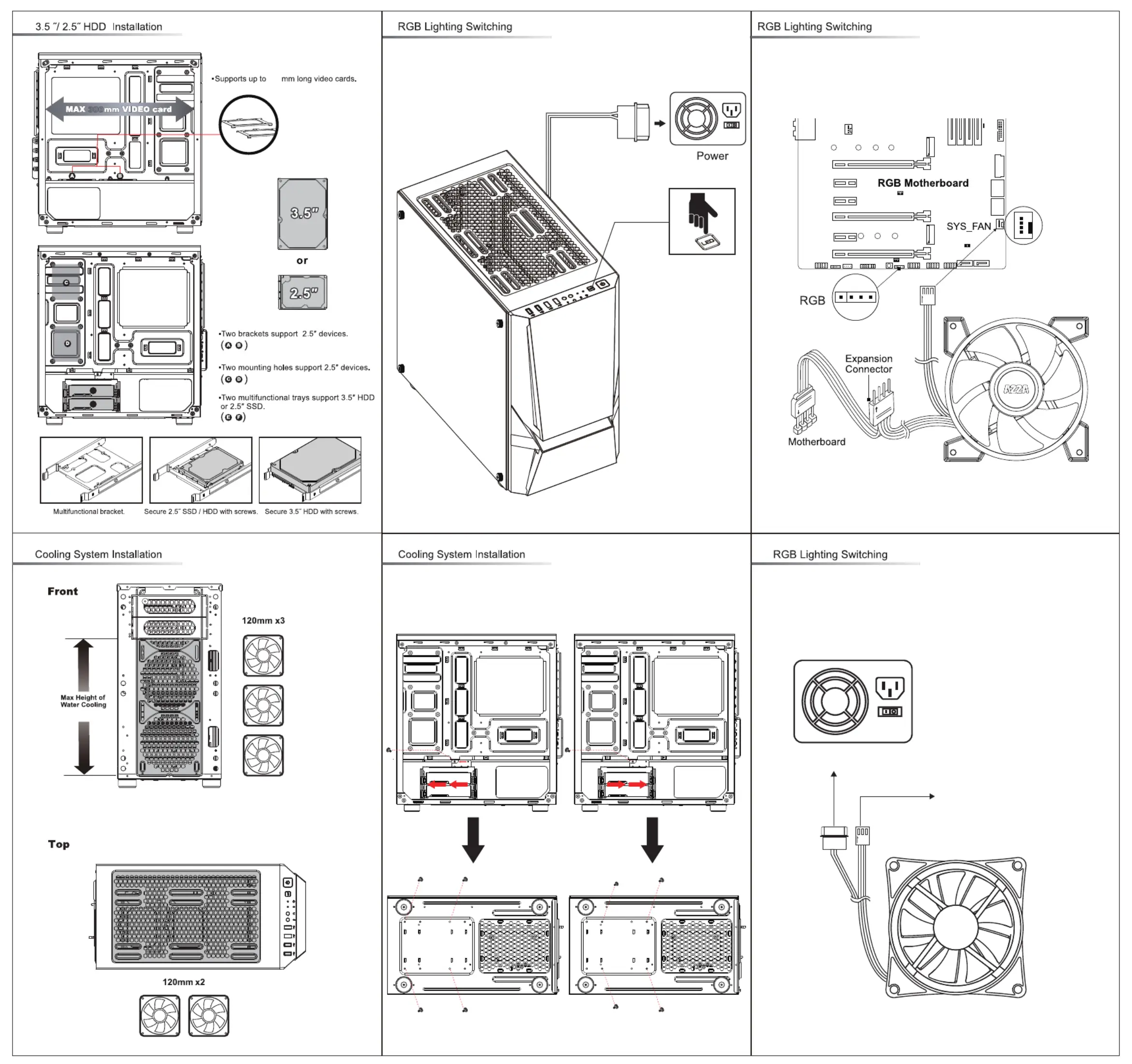

3.5"HDD brackets X2
5
300
2.5"SSD brackets X2
240mm
E
F
▪Front panel LED connector.
Logo with RGB light effects on the front panel.
▪Press the LED button to
cycle through different
RGB lighting modes.
Connect to power molex connector
Connect to sys-Fan of MB
connector
Built-in automatic lighting mode Digital RGB Fan with
Molex header connect to computer Power Supply .
The RGB fan connected to the compatible RGB motherboard
with 4 pin header.
(Model: CSAZ-110RF1)
(Model: CSAZ-110ADF)
Plug the RGB fans 4pin connector into your motherboard RGB header.
You can adjust fan light colors with your compatible RGB motherboard software
300300
300
Move HDD cage to install the fan
on the front panel
Move HDD cage to install the Radiator
and fan on the front panel
Produktspecifikationer
| Varumärke: | AZZA |
| Kategori: | Computerbehuizing |
| Modell: | Luminous 110 |
