Sida 1/15

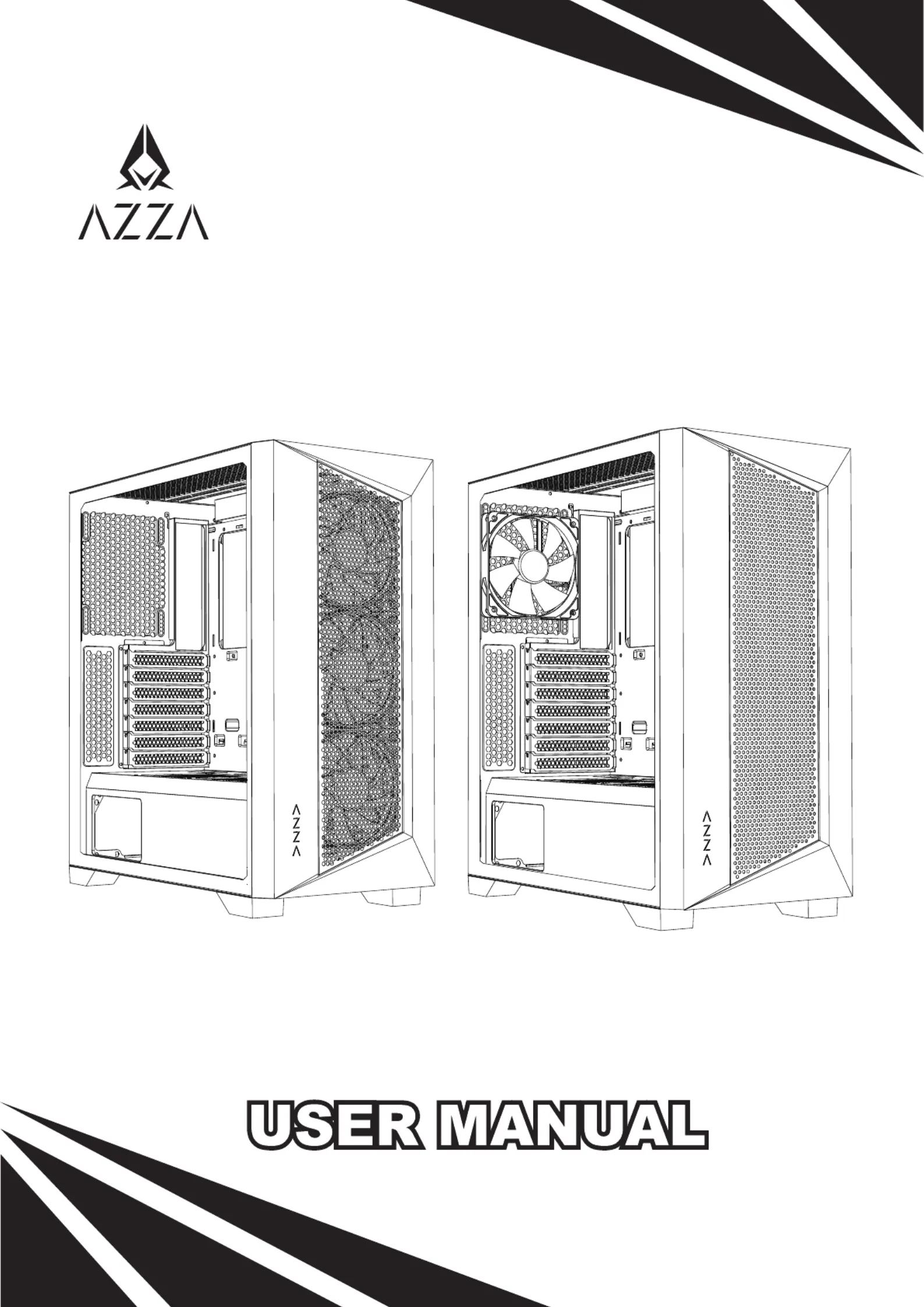

Octane
CSAZ-460A CSAZ-460B
Installation Instructions
1. Specifications
2. Chassis Parts
3. Control Panel Functions
4. 3.5”/2.5” HDD/SSD Installation
5. Cooling System Installation
6. ARGB Control Board
7. ARGB Control Modes Switching
Model
Model Name:
Model Number:
Specifications
Type: ATX Mid Tower
Color: Black/Black(interior), White/White(interior)
Side Panel Window: Le Side panel: Slidable tempered glass panel
Max CPU Cooler Height: UP to mm
165
Max Video Card Length: Up to 360mm long video card
Power Supply: Not Included
Motherboard Compa bility: <270mm E-ATX、 、 、ATX Micro ATX ITX
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays: Up to 4
Internal 3.5" Drive Bays: Up to 2
Expansion Slots: 7
Top Ports: Power bu on, reset bu on,Led bu on, HD Audio, USB 3.0 x 1, USB2.0x2
Physical Specifications
470x215x443/18.5x8.5x17.4 inches
Weight:
Tempered Glass Sides Window: High-quality tempered glass side window allows for clear visuals to inner components
Addressable RGB Light E ects:ff
CSAZ-460A:
All ARGB light synchronize devices connect to the ARGB control board.
CSAZ-460B:
Addressable RGB light strip in the front and all ARGB light synchronize devices make
connecons.
Allowing the LED buon to directly control the ARGB lighng, or switched to be controlled
by the motherboard synchronize soware.
Available Fan Ports:
3x120mm or 3x140mm Fan ports in the front(CSAZ-460A: 3x120mm ARGB fan included)
3x120mm or 2x140mm F an ports on the top
1x120mm Fan port in the rear(CSAZ-460B: 1x120mm black fan included)
2x 120 mm fan ports on top of the power supply shroud
Water Cooling: Supports radiators up to mm in the Front
280/360
Supports radiators up to mm in the Top 240
Dust Filters:
Power Supply Support:
Removable (magnetic) dustproof net on the top, iron net on bottom of chassis.
CSAZ-460B: LED light guide mesh on the front.
Bo om mounted ATX Power Supply
Octane
Expansion
Features
CSAZ-460A/CSAZ-460B
Specifications
Case Dimension (HxWxD)
6.4kg /14.1lbs
