Sida 1/10
7400 SIS, SISJ, SISH, SISJH
Spring stop arm for regular, top jamb mount
with hold open (SISH, SISJH)
Installation instructions
08279501 – 01-2021
| | EN
27400 Surface Applied Closers 01-202108279501
dormakaba 7400 SIS, SISJ, SISH, SISJH Installation Instructions Table of Contents
Table of contents
1 Technical specifications 3
1.1 Overview 3
1.2 Tools recommended 3
1.3 Handing the door 3
2 Installation - regular mount 4
2.1 Installing the surface closer 4
1.4 Surface closer components 4
2.2 Securing main arm to door/frame 5
2.3 Securing main arm to closer 5
3 Instructions - top jamb mount 6
3.1 Mounting backplate/top plate (BP89) 6
3.2 Installing the surface closer 6
3.3 Securing main arm to door/frame 7
3.4 Securing main arm to closer 7
4 Adjustments 8
4.1 Adjust closing speeds: sweep, latch, backcheck,
delayed action 8
4.2 Adjust optional hold open 8
5 Install covers 9
4.3 Adjust spring force 9
dormakaba 7400 SIS, SISJ, SISH, SISJH Installation Instructions
08279501 01-20217400 Surface Applied Closers 3
Technical specifications
1 Technical specifications
. Overview
Caution: sex nuts are required for attachment of
components to unreinforced doors and to wood
or plastic faced composite type fire doors, unless
an alternative method is identified in the
individual door manufacturer’s listings.
Maximum door opening degree is 180°.
Maximum 4-1/2” reveal on top jamb mounts for
110° degree openings.
Know the swing of the door which is being
installed prior to installation.
Verify closer spring size prior to installation.
Make sure door efficiently operates prior to
installing closer.
Drill bits: #3 phillips screwdriver
Metal: 7/32” drill bit; 1/4-20
tap
1/2” or 13mm box wrench
Wood: 5/32” bit 10” adjustable wrench
DPK: 1/8” 3/16” hex key
Sex nuts: 3/8” 5mm hex key
. Tools recommended
Table

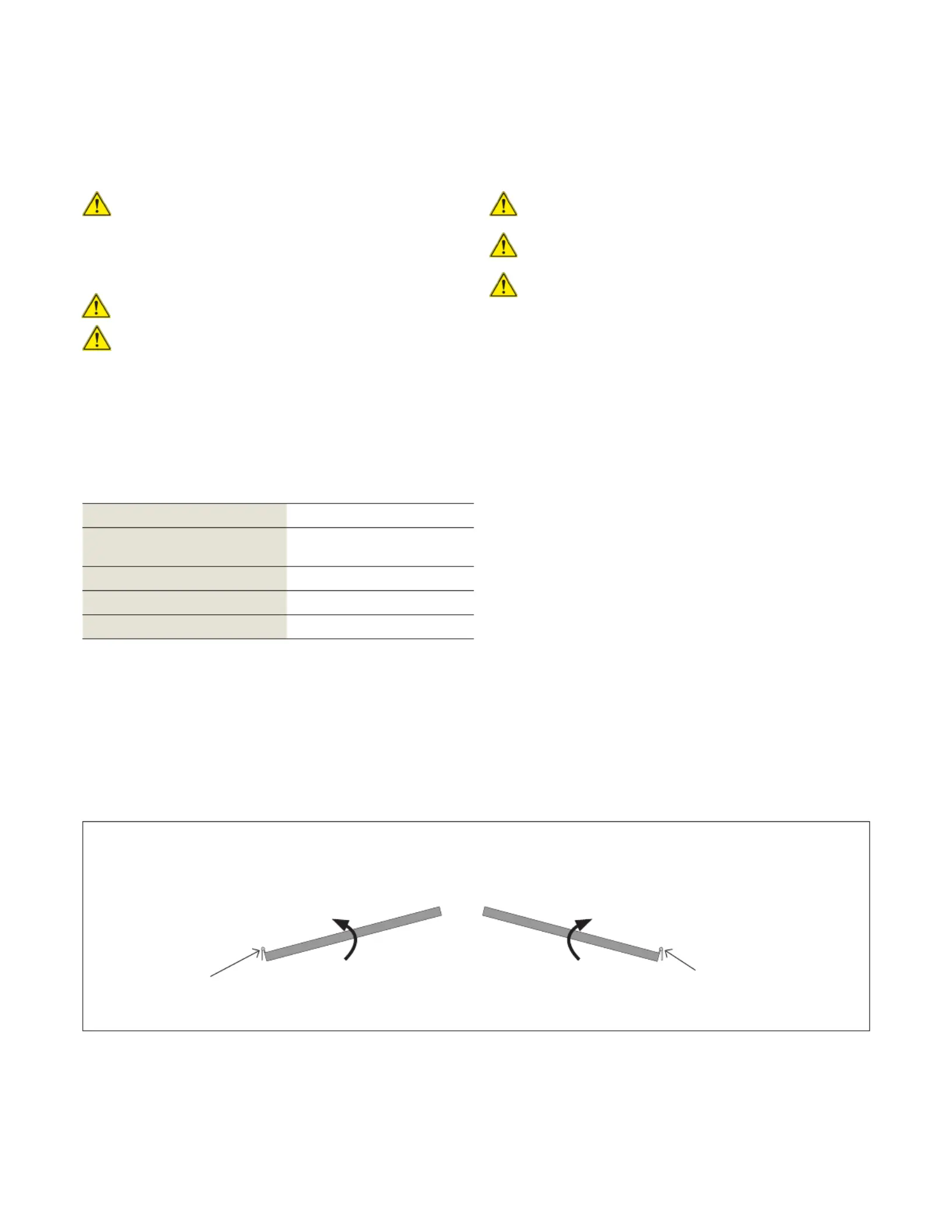

. Handing the door
Fig.
Hinge Hinge
Interior side of door
Left hand door (LH) Right hand door (RH)
