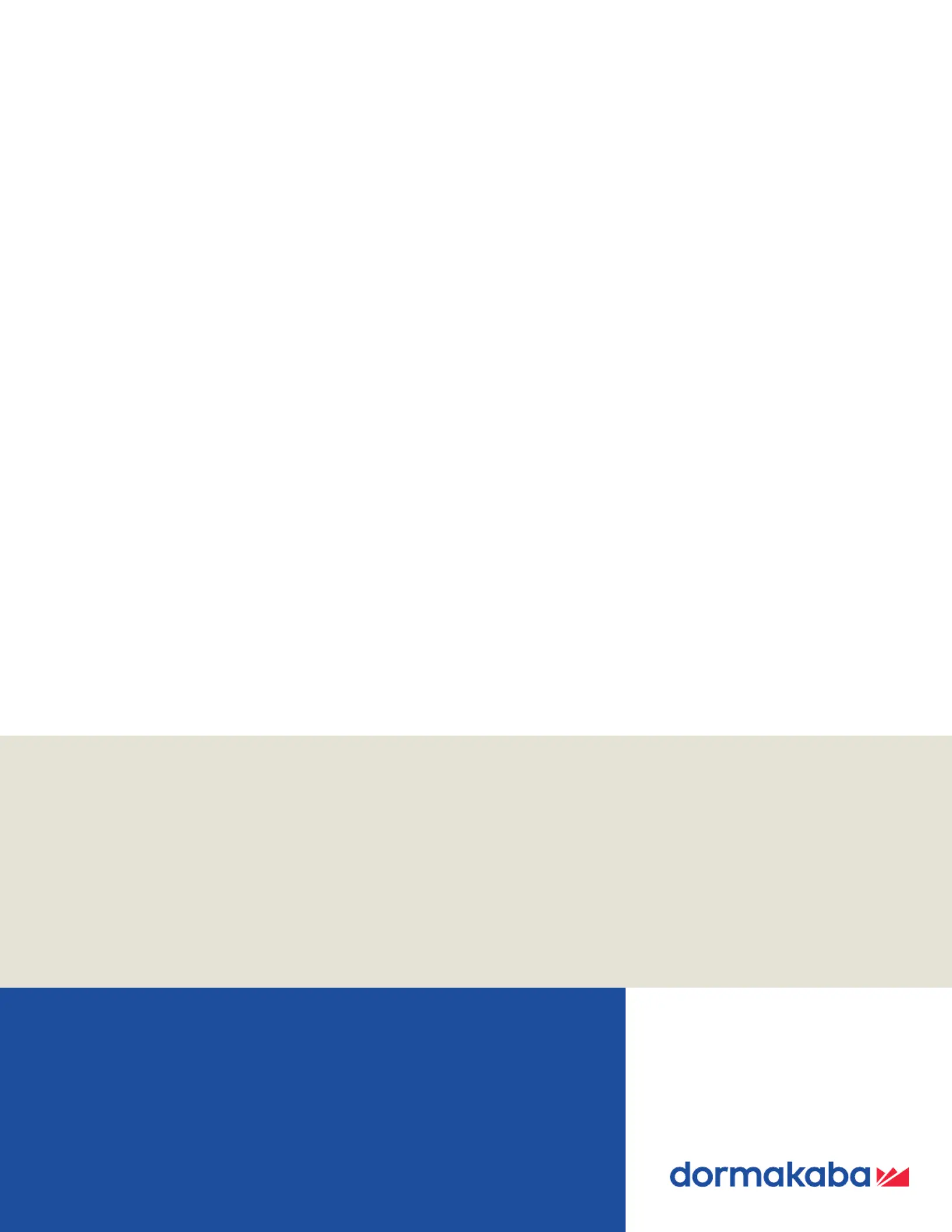

Sida 1/10
BTS75V/E,F, 75V BF/E,F, 80/E,F
Package E & F
20 minute-rated and 3-hour rated
3/4” offset hung, single acting
Installation instructions
08076345 – 02-2021
| | EN
2BTS80 Closers 02-202108076345
dormakaba BTS75V/E,F, 75V BF/E,F, 80/E,F
Installation Instructions
Table of Contents
Table of contents
1 Installation 3
1.1 Attach spindle and install closer 3
1.2 Install top pivot 3
1.3 Install bottom arm in bottom of door (75323) 3
1.4 Install the door 4
2 Templates 5
2.1 Top pivot template 5
2.2 Bottom arm (75323) template 6
2.3 Cement case template 7
3 Adjustments 8
3.1 Adjust bottom door clearances (if necessary) 8
3.2 Adjust closing speeds 8
3.3 Adjust spring tension (if necessary) 9
3.4 Sealing compound (optional) 9
4 Covers 9
4.1 Install cover 9
dormakaba BTS75V/E,F, 75V BF/E,F, 80/E,F
Installation Instructions
08076345 02-2021BTS80 Closers 3
Spindle and closer
Pivot
Pivot channel
. Attach spindle and install closer
1 Installation
Fig.
1.1.1 Slide washer over tapered
square end of spindle until
fully seated in groove.
1.1.2 Fasten spindle with
spindle screw provided.
1.1.3 Tighten securely with
5mm hex key.
1.1.4 Center closer in cement case.
1.1.5 Tighten fastening screws.
NOTE: Top of cement case must be flush with finished floor.
NOTE: Cement case must be level and installed parallel to frame.
NOTE: Spindle center line must be accurately located.
NOTE: Grout cement case in place.
CRITICAL:
WASHER MUST BE INSTALLED
Spindle screw
Spindle
Washer
Fastening screws
Finished floor
. Install top pivot
Fig.
1.2.1 Remove set screw, cover cap and pivot pin.
1.2.2 Install top pivot.
1/8” hex key
. Install bottom arm in bottom of door ()
Fig.
Bottom of door
Cover cap
Undercut
Set screw
Frame portion
Door portion
Pivot pin
Bottom arm
