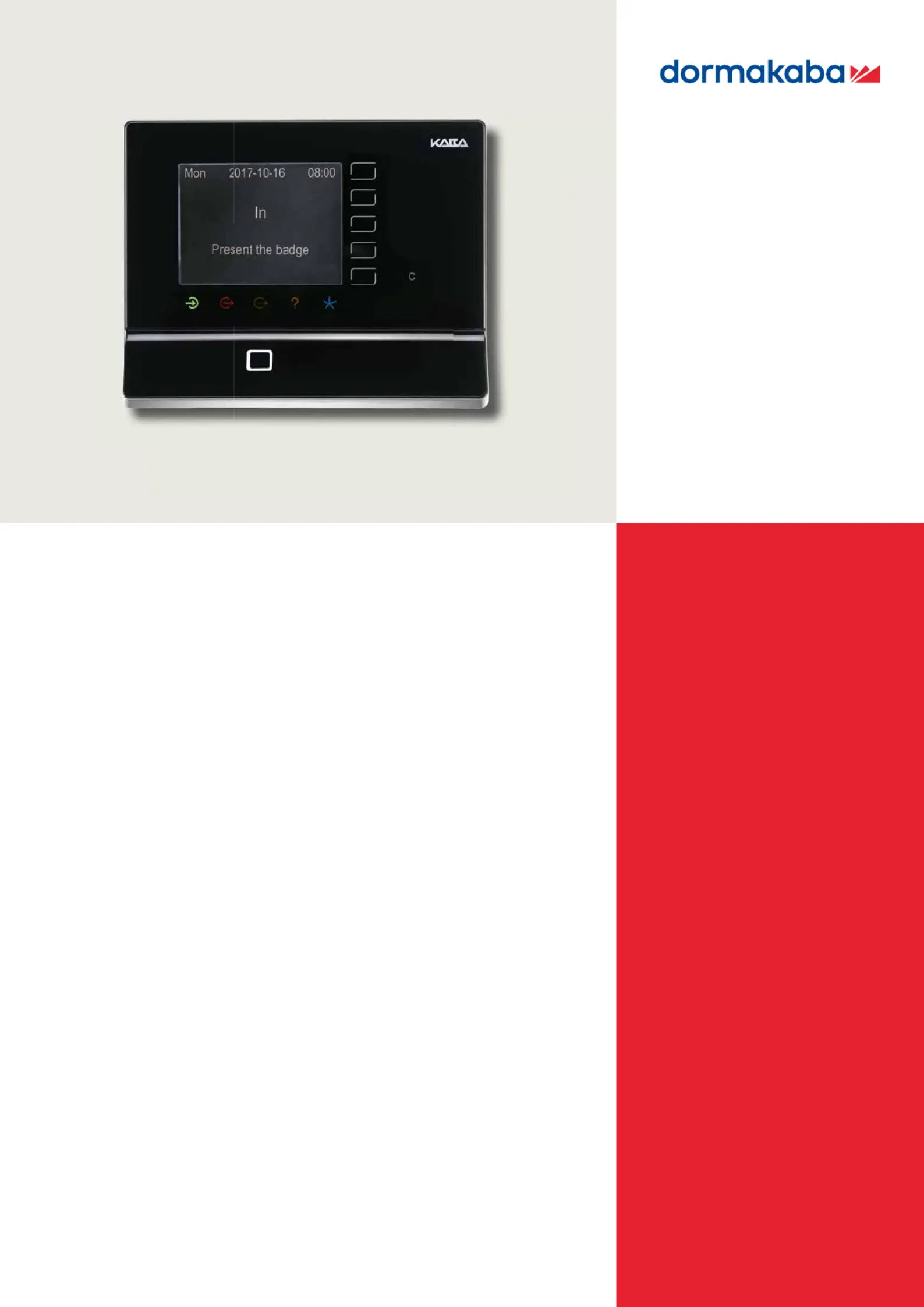

The B-web 93 40 – ideally suited
for all your requirements for a
time and attendance terminal.
Its special feature: ‘Guide by
Light’. With this intuitive concept,
you operate the terminal simply,
conveniently and securely. The
full-screen glass front has an
individually illuminated capacitive
keypad. It consists of five func-
tion keys (In/Out/Official
Absence/Inquiry/Special Func-
tion), five special keys (for list
selection or language selection)
and a numeric keypad for date
code or other code input. An
interplay of bright and dimmed
keys guides you reliably through
all applications.
The time bookings of your emplo-
yees are done via RFID readers –
preferably LEGIC, MIFARE or
HID. The memory is designed for
2,000 employees and can be
adapted individually depending
on the planned number of mas-
ter and booking records.
The application package B-web
93 40 includes all the functions
that you currently need for your
time and attendance. In addition,
you can use the B-web 93 40 for
access control: The terminal
monitors doors and communica-
tes with access readers.
The CardLink function integrates
offline door components into a
security solution. These functions
can be extended very easily with
additional usage licenses. Intelli-
gent service features such as
1-Click Installation or 1-Click
replacement in combination with
the communication software
B-COMM guarantee a high sys-
tem availability.
Terminal B-web 93 40
Modern time and attendance
Your benefits at a glance
• meets all the requirements of
modern time and attendance
• simple and intuitive operation
through ‘Guide by Light’
• full-screen glass front with
wear-resistant keypad
• support of all conventional
RFID standards
• integration of biometric identifi-
cation and verification solutions
• access control functionality
through the connection and
control of access readers
• standard power supply via
Power over Ethernet (PoE)
• Reliable and fast 1-Click
installation
• innovative 1-Click analysis and
1-Click replacement in combina-
tion with B-COMM
Performance features
Subject to technical alterations.
© 2017 dormakaba. Version 09/2017
Standard
Option
Not possible
1 Optional equipment with a circuit board in accordance with the selected power supply, interface
and/or digital I/Os.
2 Determination of the version when the product is ordered. Changed design possible by replacing
the terminal.
3 If changed subsequently, the docking station must be replaced.
4 Installation is done in the substructure housing when ordering and is not possible subsequently.
Remark: The effective functions available of the
product depend on the system context in which it is
used.
Hardware B-web
93 00
B-web
93 20
B-web
93 40
B-web
93 60
Basic device with Docking station ● ● ● ●
Capacitive keypad
QVGA Display  x  Punkte
User guidance Guide by Light ○ ○ ● ●
Readers
RFID reader (LEGIC, MIFARE, HID)
Other RFID readers ○ ○ ○ ○
Biometric module , . or .
persons ○ ○ ○ ○
Magnetic stripe reader ○ ○ ○ ○
Interfaces
/ Ethernet interface ● ● ● ●
RS- / RS- communication
Power supply
PoE according to IEEE .af ● ● ● ●
 V AC/DC ○ ○ ○ ○
 V internal power supply unit ○ ○ ○ ○
Uninterruptible power supply
Memory options
Number of persons  ● ● - -
Number of persons , - -
Number of persons , -
Number of persons ,
Software modules
Basic software TA "offline" - - -
Basic software TA "offline/online"
Enhanced input
list entry, numeric input, soft keys,
language selection
○ ○ ● ●
Enhanced information
display info, mailbox texts, plain text info ● ● ●
Option access incl. support of up to 
subterminals
○ ○ ● ●
Option data encryption ○ ○ ○ ●
Option CardLink (write LEGIC, MIFARE) ○ ○ ● ●
Optional AVISO programming
Any questions? We would be
happy to answer any questions
you may have.
dormakaba Deutschland GmbH
DORMA Platz 1
58256 Ennepetal
T: +49 2333 793-0
F: +49 2333 793-49 50
www.dormakaba.com
