Confidant RFID
Complete Lock with ASM Mortise /
Tubular Latch
Installation instructions
PK3621-T - 2022 - 09
EN
2 Confidant RFID ASM Mortise / Tubular Latch PK3621_T 09-22
Confidant RFIDTM Installation Instructions
IMPORTANT: Wear Safety glasses before starting the installation process.
Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1. Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
American Steel Mortise (ASM) 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tubular Latch 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. Install Spindle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. Install Outside Lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5A. Adjust Handing (Tubular latch lock with privacy only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5B. Prepare Inside Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5C. Change Position of Stopper if Required (ASM and ADB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5D. Apply privacy thumb turn sticker
(applicable only for multihousing locks or locks with automatic dead bolt) . . . . . . . . . . . . . . . . . . . . 9
6. Install Lock on Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
American Steel Mortise (ASM / Tubular Latch) 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7. Install Inside Trim Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
8. Plug Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
9. Test Lock Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10. Program Lock - With Jack Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
11. Install Battery Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Annex A 13
Installation of Standard ASM Mortise 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Reversing the Mortise Handing 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Annex B 17
Install Outside Housing with Gasket 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Annex C 17
Remove Battery Holder 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Annex D 18
Install Bluetooth and Messenger module 18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Annex E 20
Remove cover of Bluetooth and Messenger module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Drilling Templates are in the center of the Installation Guide
Model: Confidant RFID
IC: 4652A-CRFID
FCCID: Q8SCONFIDANT-RFID
Regulatory Compliance: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Any changes or modifications of this product, not approved by manufacturer will void the user’s authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Made in Canada ©2018 dormakaba. All trademarks and registered trademarks are the property of their respective owners.
Confidant RFID ASM Mortise / Tubular Latch PK3692_T 09-22 3
Disclaimer

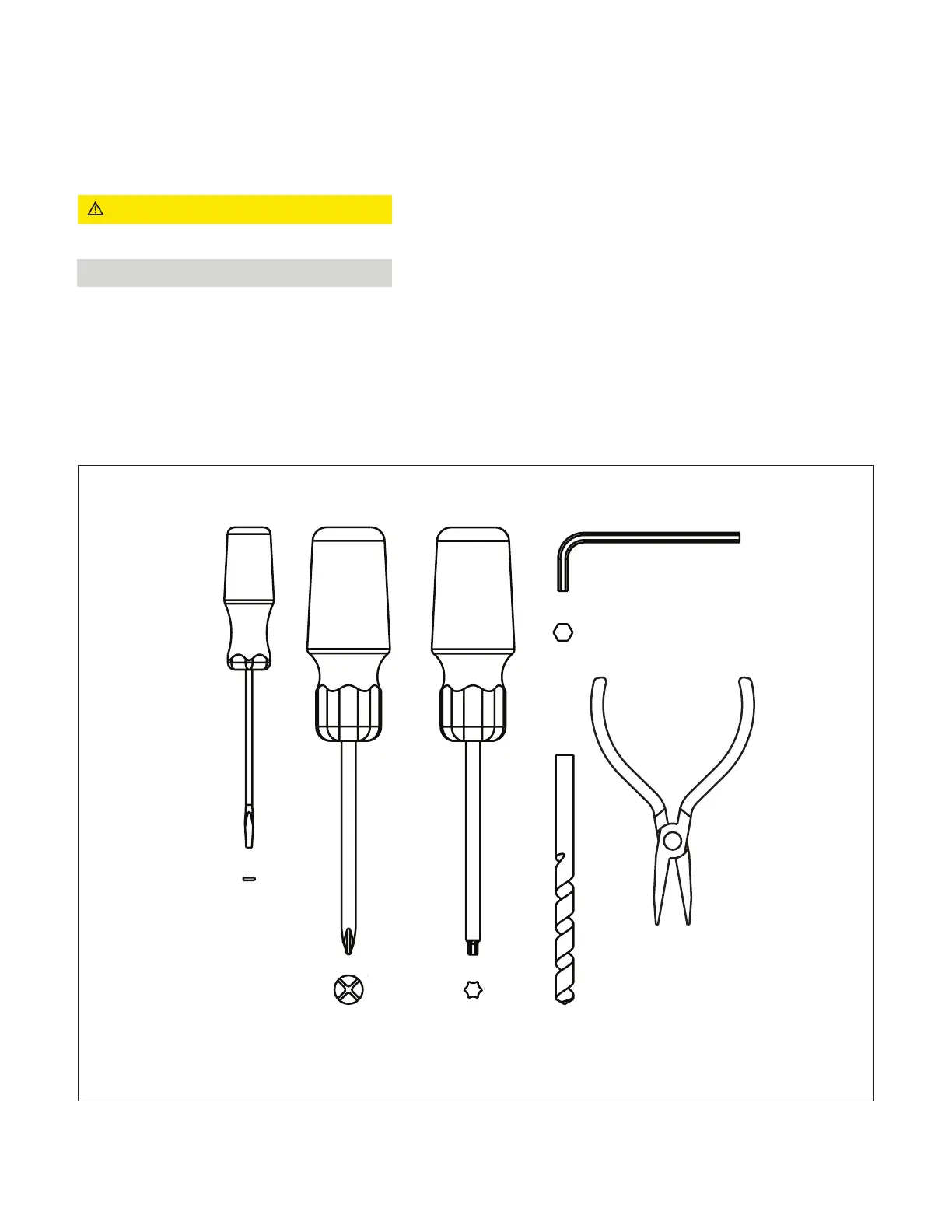

1- Tools
ABC D
EF
A - Screw Driver Small Flat
B - Screw Driver Phillips #1 & #2
C - Screw Driver Torx T-20
D - Hexagonal Key 3 mm
E - 25mm / 24mm / 19mm / 12mm / 10mm Drill Bit
F - Needle Nose Pliers
CAUTION
Please read and follow all directions carefully. Wear safety glasses when making the holes.
IMPORTANT
Carefully inspect windows, doorframe, door, etc. to ensure that the recommended procedures will not
cause damage. Kaba Lodging Systems standard warranty does not cover damages caused by installation.
Respect applicable building codes regarding handle height.
Note: that the centerline of an ESM mortise does NOT pass through the screw holes on the strike.
