INSTALLATION INSTRUCTIONS

AC-225 KEYPAD

08105683 2/03

GENREAL

480 entry codes, from 1 to 6 digits in length, can be pro-

grammed. They can activate either, or both of the relay

outputs. Relay #1 has a 5 Amp capacity. Relay #2 has a

1 Amp capacity.

Two LED indicators show the status of the entry system.

The left LED lights red to indicate power, then turns

green when access is granted. The right LED lights yel-

low when the keypad is in "lockout" condition (from too

many incorrect code entries). The keypad's courtesy light

illuminates the keys for two minutes after any key is

pressed. An internal sounder beeps when each key is

pressed.

The DOOR SENSE/INHIBIT RELAY #1 input can be

used two ways. If used for "door position switch", the

switch on the door detects forced entry or door ajar situa-

tions. If used for "inhibit/disable", the input can be wired

to a "service" switch or automatic timer that will disable

the Relay #1 when required.

REQUEST-TO-ENTER/EXIT input can be wired to a

pushbutton or fire access keyswitch to provide codeless

entry for authorized personnel. In a door control applica-

tion, this input is also known as a request-to-exit. The

"anti-passback" feature prevents using the same code

twice before the programmed time elapses.

The ALARM SHUNT output activates when access is

granted. This output can be wired to shunt alarm con-

tacts on the access door/gate to prevent triggering of an

alarm when authorized access occurs.

Two solid state outputs, capable of switching 100 mA to

common, are programmable to signal forced entry, door

ajar, lockout, alarm circuit shunting, request-to-enter/exit

and keypad active conditions.

The AC-225 is powered from a 12-24 Volt AC or DC

source. Power can be obtained from the access device

or a separate power supply. The EEPROM memory

retains all entry codes and programming, even without

power.

SPECIFICATIONS

ELECTRICAL MECHANICAL

Voltage:12-24 Volts AC or DC Case dimensions:4.0" W x 5.5" H x 3.0" D

(AC supply must be transformer isolated)

Current:10 mA typical, 150 mA maximum ENVIRONMENTAL

Outputs:Relay #1 Temperature:-20°F to 130°F (-29°C to 54°C)

Form "C" 5 Amps @ 24 Volts maximum Humidity:5% to 95% non-condensing

Relay #2

Solid state outputs (Outputs #3 & #4)

Short-to-common 100 Ma

@ 30 VDC maximum

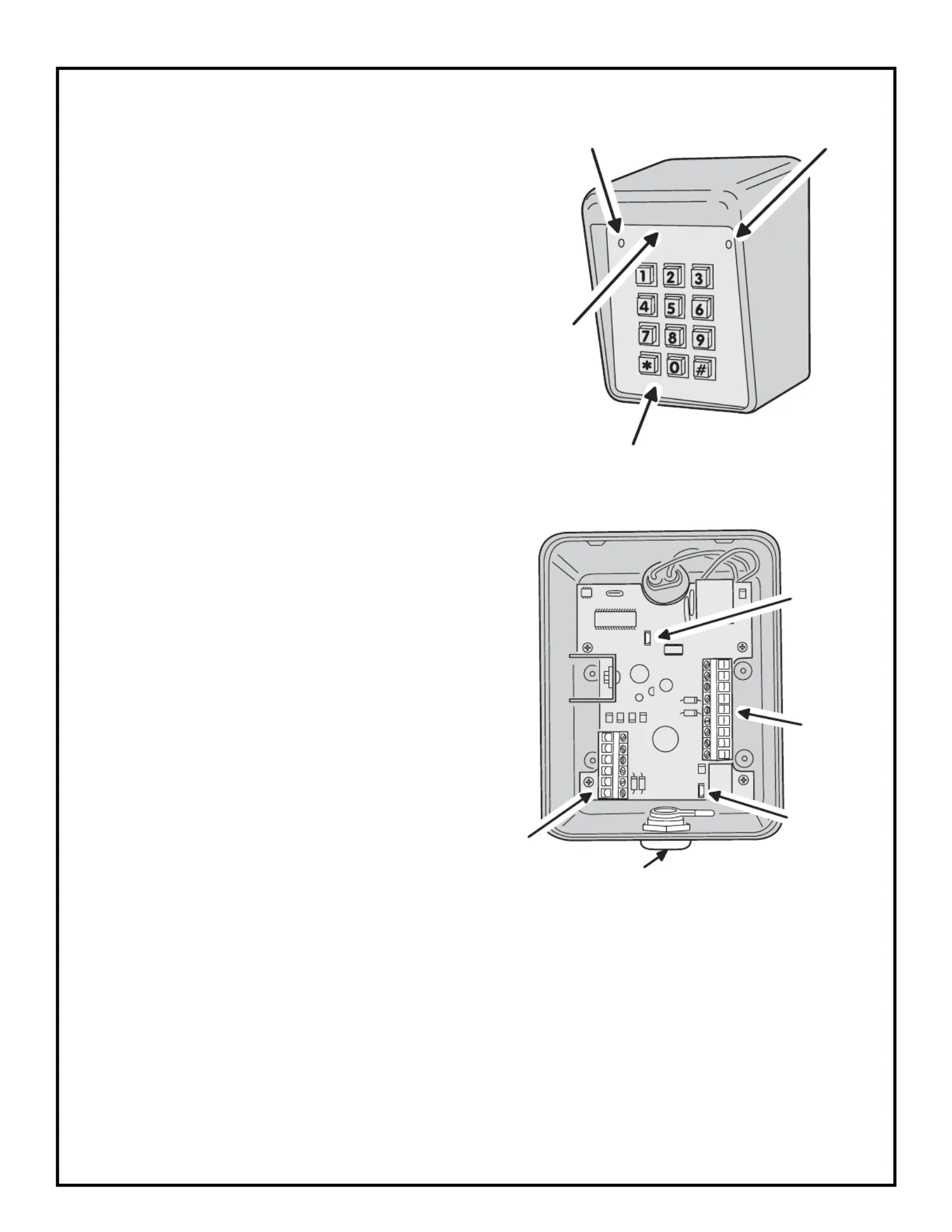

TACTILE

KEYPAD

YELLOW

"LOCKOUT"

INDICATOR

RED/GREEN

POWER/ACCESS

INDICATOR

NIGHT

LIGHT

ERMINAL BLOCK J4

OWER AND INPUTS

IKEYLOCK

TERMINAL

BLOCK J3

OUTPUTS

JUMPER JP1

REMOVE TO

REDUCE

BEEPER SOUND

JUMPER JP2

RESETS

MASTER CODE

INSTALLATION

To avoid damage to the unit from static discharges, con-

nect the EARTH GROUND terminal to a good earth-

grounding point. Suggested wiring size is 18 AWG for

earth ground and for power, up to 500ft. (use larger wire

for longer runs). Use22 AWG or larger (depending on the

load) for all other connections.

CAUTION: Do not ground either side of the power

inputs when using AC power.

Select a location for the keypad. For door access control

installations, mount the keypad near the controlled door.

For gate control installations, mount the keypad in clear

view of the gate, but far enough from the gate so the user

cannot touch the gate from the keypad.

WARNING: TO AVOID SERIOUS INJURY OR DEATH,

MAKE SURE THAT THE UNIT IS FAR ENOUGH FROM

THE GATE SO THAT THE USER CANNOT TOUCH

THE GATE WHILE OPERATING THE KEYPAD. HOW-

EVER, THE GATE MUST BE FULLY VISIBLE FROM

THE KEYPAD.

MOUNTING

The AC-225 keypad can be mounted directly to a wall or

flat surface. Use the appropriate fasteners to secure the

keypad's backplate to the mounting surface. When

mounting the keypad to a concrete wall, use concrete

wedge anchors or molly anchors.

EXPOSED MOUNTING

The AC-225 keypad can be mounted on a standard

pedestal or exterior frame assembly. Use four security

bolts and locking nuts to secure the keypad’s backplate to

the pedestal or exterior frame assembly.

Mounting Keypad Backplate

MOUNT BACKPLATE WITH

SECURITY BOLTS AND LOCKNUTS

PEDESTAL OR EXTERIOR

FRAME ASSEMBLY

USE CONCRETE

WEDGE ANCHORS

OR MOLLY ANCHORS

WALL MOUNTING
