Sida 1/2
1
Every building is a story and the entrance sets the scene. By selecting a
Crane 3000 Series revolving door, the scene is limited only by imaginati-
on and vision. Any building can benefit from the value of a revolving
door; some buildings deserve the stylized choice of the industry’s
signature product, a Crane 3000. Whether the design includes the
old-world elegance of mahogany or a sleek and contemporary steel
finish, or anywhere in between, the 3000 offers premium construction
and unrivaled custom design. The Crane 3000 Series is the only fully
formed and welded revolving door in the market with a 5-year standard
warranty.
Standard 3000-A features include an advanced microprocessor control;
a safety sensor system that monitors the door and its occupants;
heavy-duty bookfold mechanism finished to match the door; and a
smooth-surface canopy without pie wedges or visible supports.
3000-A Series
Automatic Revolving Door
The 3000-A Series features the torque-
driven Crane Modular Drive System. The
reliable advanced microprocessor control
monitors the door and occupants to ensure
safe operation.
• Every Crane 3000 Series revolving door is
a work of art as unique as the building it is
a part of.
• Virtually every component of the door—
push bars, canopies, glass panels, and
more—can be customized to complement
the building’s exterior and interior design.
• Every revolving door is designed,
engineered, and fabricated by union
craftsmen in our Chicago factory.

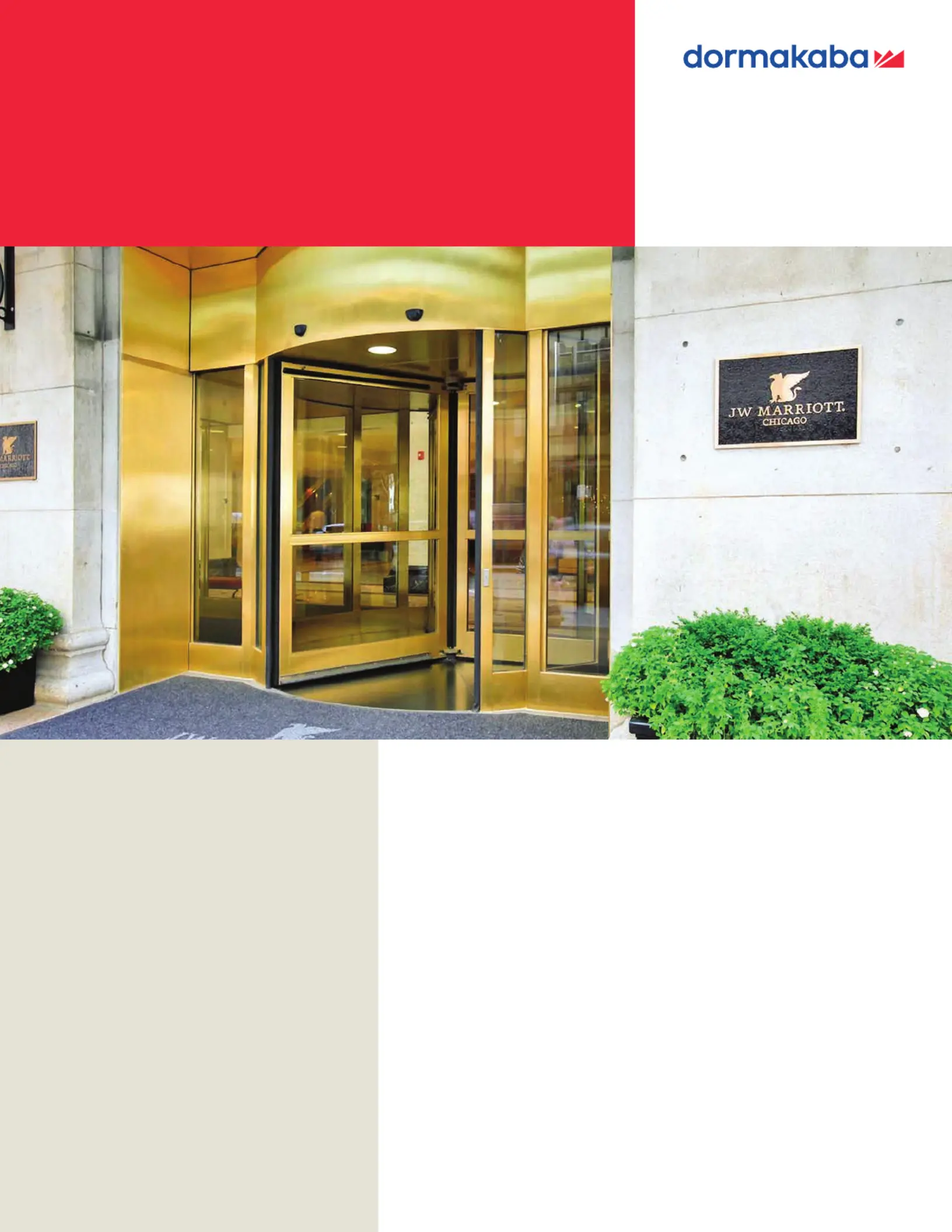

Crane BZ3000-A (Complete Entrance)
JW Marriott Chicago, Chicago, IL,
Architect: Lucien Lagrange & Assoc.
3000 Series
Crane Revolving Doors
Crafted Construction
Crane 3000 Series revolving doors are cut,
formed, and precisely welded from heavy USS
16 gauge stainless steel or 14 B&S gauge
bronze sheet and compatible bar stock to
create the sturdiest structural elements
possible. The exterior surface metal is fully
welded to the interior reinforcing substructure.
The four door wing corners and the interior
enclosure-post-to-base connections are all
welded. Canopy fascia are visually seamless
and attached to the ceiling soffit with concealed
welds. All exposed surfaces are ground and
polished to eliminate blemishes from rolling,
forming, and welding.
The Only Tailor Made Door Wing on the Market
Fully customizable 3000 Series door wings can
be fabricated from wood (e.g. mahogany or
oak), welded stainless steel or bronze, or some
other custom material. dormakaba's meticu-
lous fabrication process makes Crane door
wings the strongest in the industry.
Automatic Drive System
The 3000-A Series door features the Crane
Modular Drive System, which includes a reliable
advanced micro processor control and is torque
driven for safety. The advanced control utilizes
two redundant obstruction systems to ensure
the ultimate in pedestrian safety.
Bookfold
Mechanism
The heavy-duty Crane bookfold mechanism is
constructed from a high grade chilled bronze
casting—heavy-duty hardware compliant with
all state and federal requirements for providing
emergency egress. The pressure required to
engage the bookfold mechanism is adjustable
to meet local elements such as stack condi-
tions, negative pressure, and wind conditions.
Energy Savings
Installing a 3000-A Series revolving door
provides the most sustainable entrance
possible. It allows continuous traffic flow while
creating a barrier to prevent air infiltration.
This barrier separates inside and outside
environments, while enhancing the comfort
of everyone inside and ensuring the owner’s
return on investment.
Safety is Paramount
All Crane 3000-A Series revolving doors exceed
the ANSI 156.27 standard for automatic
revolving doors. The drive and safety sensor
system continuously monitors the door and its
occupants. Standard safety features include:
• Enclosure wall safety bumper (2 per door)
• Heel guards (1 per wing)
• Wing sensors (1 per wing)
• Breakout detection
• Torque-limited drive system
• Handicap door speed
reduction switches (2)
• Emergency stop button (1)
• Activation
• Force detection
Additional Option—Welded Floor Grilles
Floor grilles can be integrated into the revolving
door design to ensure a working system and
proper aesthetics. Fabricated from concentri-
cally rolled bars of stainless steel, the grilles are
curved to the radius of the revolving door, which
allows the door to spin properly and minimizes
damage to the bottom door sweep. The hea-
vy-duty floor grilles are welded and formed
from 304 or 316 solid stainless steel, 1/4" × 1"
solid bars polished to a #4 satin finish. The
recessed grille pan is welded from 12 gauge
stainless steel and can have a drainage fitting
added. Tolerances for the grilles aligning
concentrically are to a 1/64" variance.
NOTE: Floor grilles are not included in air
infiltration testing.
Customizable Options
• Push bars
• Ceiling lights
• Finishes
• Dimensions and sizes
• Canopy
• Glass
Service and Maintenance
Servicing and maintaining your 3000-A Series
door is vital to ensuring your entrance is fully
functional and secure at all times. dormakaba
offers a variety of service plans to meet your
needs. To find out more, visit:
go.dormakaba.com/ServiceAMER
1 2
3
4
Crane
Bookfold
Mechanism
DORMA USA, Inc.
Dorma Drive,
Drawer AC
Reamstown, PA 17567
844-SPECNOW
(844-773-2669)
www.dormakaba.com
NOTE
Contact us or visit our
web site for information
about other Crane
products.
11.16 EO
