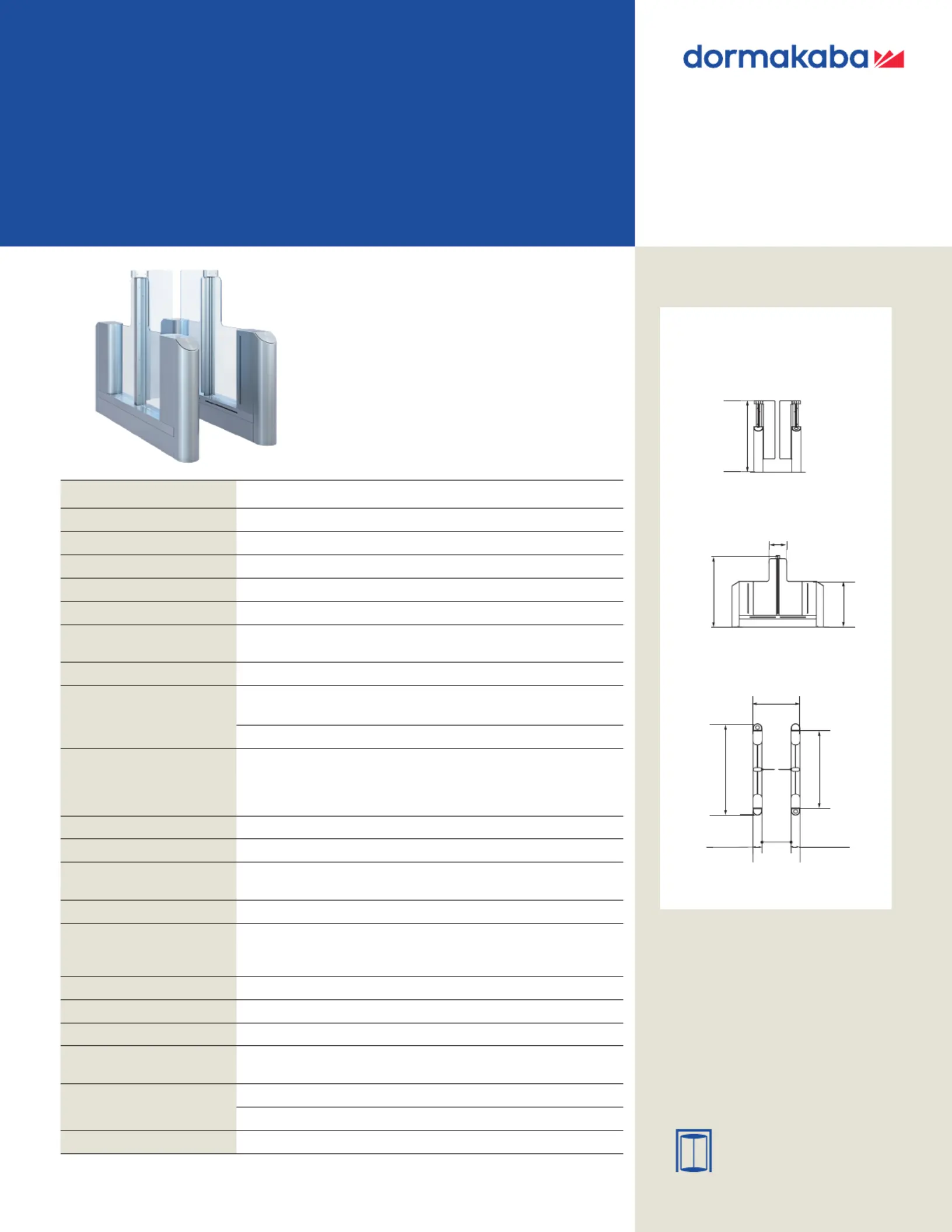

HSB-E12 sensor barriers
Premium
Premium units offer tailgating
monitoring. The enhanced
sensor system includes luggage
and child detection.
Standard units HSB-E12
Note: Description of single unit
Interlock height 63" (1600)
Interlock length 80-11/16" (2050)
Passage width 25-9/16" (650)
Total width 41-5/16" (1050)
Housing, base columns,
guiding elements
AISI 304 stainless steel with satin finish.
ADA compliance 36" (915 mm) width available.
Barrier elements Two door leaves made of transparent polycarbonate, upper edge
35-7⁄16" (900).
Swinging area monitored by separation sensors.
Security Passage area monitored by enhanced sensor system with an
optimized installation length and arrangement (increased level of
single passage monitoring in both irections). Integrated sneak-by
guard, detection of children and luggage or rolling cases.
Finish Stainless steel semi-gloss smooth finish.
Safety Low energy drive with energy content less than 1.18 lb/ft.
Function Type 2–power assisted motion; two servo-positioning drives/
electrically controlled in both directions.
Drives Integrated in the swing tube.
Operating modes Optical.
Normally closed.
Normally opened. (Barriers close on tailgate event.)
Electrical equipment Control system and power supply integrated in the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power consumption 17 VA
Standard adjustment in case
of power failure
Door leaves move freely.
Installation Dowelled on finished floor level, FFL.
Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP43.
63" 1600) (
HSB-E12
41-5/16"
(1070)
80-11/16"
(2050)
68-1/8"
(1730)
15-3/4"
(400)
40-3/16"
(1020)
63" 1600 ( )
7-7/8"
(200)
7-7/8"
(200)
Entrance systems
dormakaba HSB-E12 sensor barriers
EO 8.18
HSB-E12
Installation drawings
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
for anchoring
5-1/16" (128)
7-7/8" (200)
3- 1/8" (80)
area
Ø3-1/8" (Ø80)
for conduits
74-7/16" (1890)
2-15/16" (75)
9/16"
(14)
1-1/2"
(100)
conduit
1/2"
(12.7) conduit
5" (127)
PW =
25- 16" (650) 9/ PW = 36" (915)
80-11/16" (2050)
43-5/16" (1100) 33-7/16" (850)
(1890) 74-7/16"
inside
outside
40-3/16 " (1020)
63" (1600)
15-3/4"
(400)
FFL
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).
