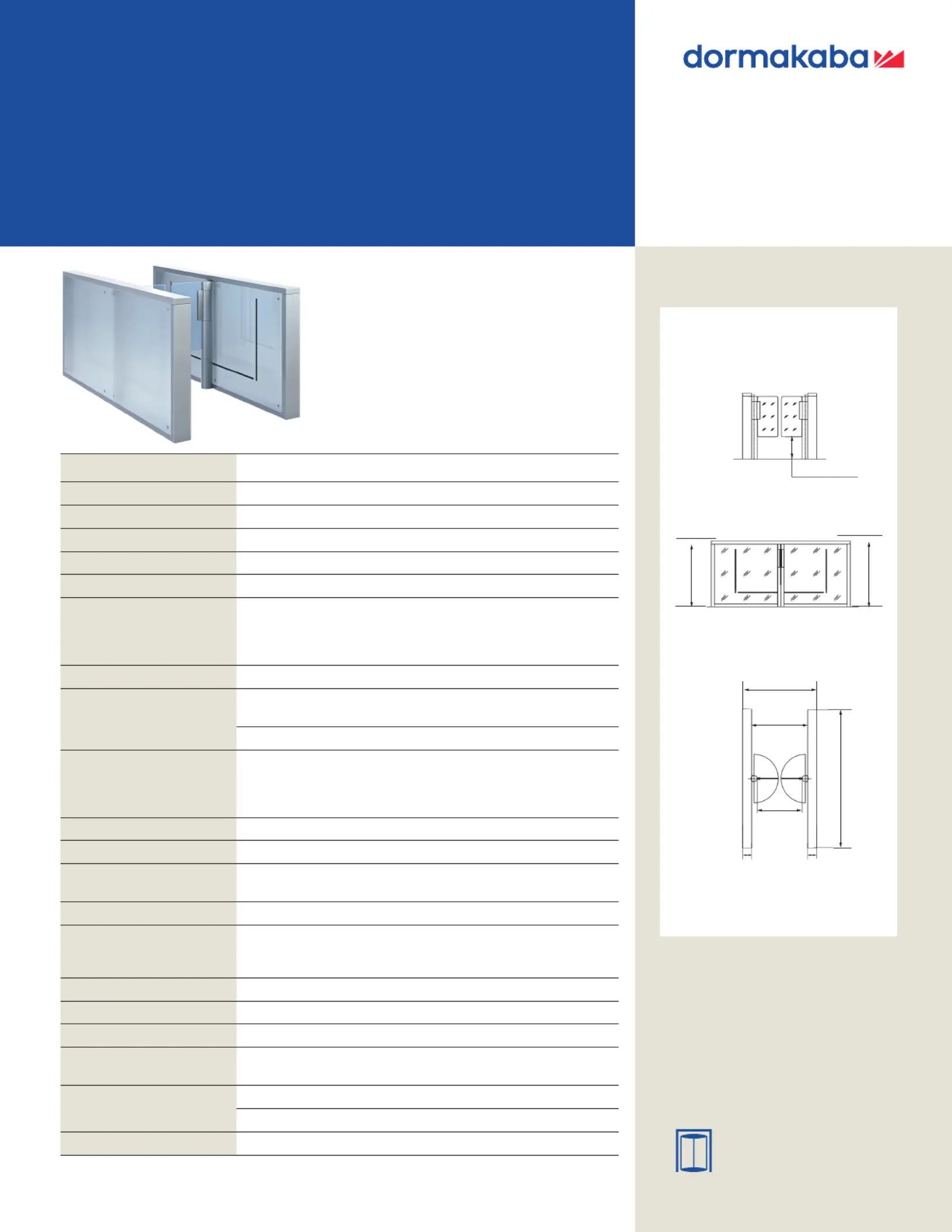

HSB-S05 sensor barriers
Premium
Premium units offer tailgating
monitoring. The enhanced
sensor system includes
luggage and child detection.
Standard units HSB-S05
Note: Description of single unit
Interlock height 37-3⁄16" (945)
Interlock length 79-1/8" (2010)
Passage width 25-9⁄16" (650)
Total width 42-1/8" (1070)
Housing, base columns,
guiding elements
Rectangular AISI 304 stainless steel posts with 5⁄16" (8) satin-
finished toughened safety glass panel and AISI 304 stainless steel
handrail as well as horizontal and vertical sensors integrated in the
guiding elements.
ADA compliance 36" (915) width available.
Barrier elements Two door leaves made of transparent polycarbonate,
upper edge 35-7⁄16" (900).
Swinging area monitored by separation sensors.
Security Passage area monitored by enhanced sensor system with an
optimized installation length and arrangement (increased level of
single passage monitoring in both irections). Integrated sneak-by
guard, detection of children and luggage or rolling cases.
Finish Stainless steel semi-gloss smooth finish.
Safety Low energy drive with energy content less than 1.18 lb/ft.
Function Type 2–power assisted motion; two servo-positioning drives/
electrically controlled in both directions.
Drives Integrated in the swing tube.
Operating modes Optical.
Normally closed.
Normally opened. (Barriers close on tailgate event.)
Electrical equipment Control system and power supply integrated in the unit.
Power supply 110 – 230 VAC, 50/60 Hz. 368 VA
Standby power consumption 17 VA
Standard adjustment in case
of power failure
Door leaves move freely.
Installation Dowelled on finished floor level, FFL.
Not suitable for outdoor installation.
Protection classes Housing IP32, components conducting supply voltage IP42.
31-7/8"
(810)
5-1/8"
(130)
5-1/8"
(130)
79-1/8"
(2010)
42-1/8"
(1070)
12-5/8" (320)
25-9/16"
(650)
35-7/16"
(900)
37-3/16"
(945)
HSB-S05
Entrance systems
dormakaba HSB-S05 sensor barriers
EO 8.18
HSB-S05

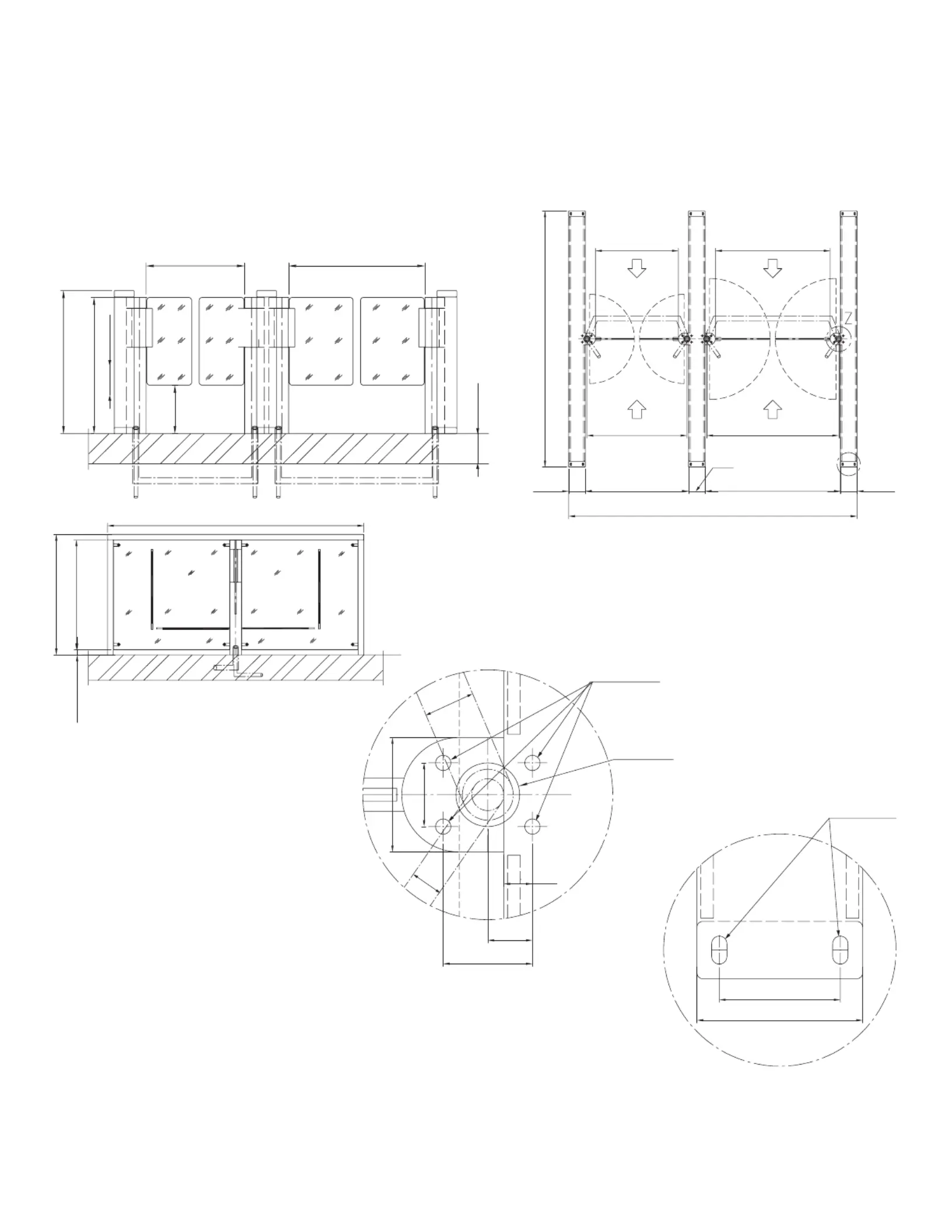

Installation drawings
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
for anchoring
for anchoring
2-3/4" (7 0)
5-1/8" (130)
3-3/4" (95)
1-3/8"
(35)
3- 16" 9/ (90)
2" (50)
area
Ø2" 50)(Ø
for conduits
7/8"
(22.5)
1-1/2"
(100)
conduit
1/2"
(12.7)
conduit
5" (127)
5" (127)
PW = 25-9/16" (650) 15) PW = 36" (9
35-7/16" (900)
12-5/8"
(320)
37-3/16" 45) (9
5-1/8"
(130)
5-1/8"
(130)
PW =
25- 16" (650) 9/ PW = 36" (915)
79-1/8" (2010)
40-3/4" (1035) 30-15/16" (785)
41-3/4" (1060) 5-1/8"
(130)
89" (2260)
31-7/8" (810)
inside
34" (863)
1- 16" 9/ (40)
37-3/16" 45) (9
79 ) -1/8" (2010
Note
Dimensions shown as inches
followed by millimeters; for
example, 1” (25).
