HTS-E01
Waist height turnstiles
Note
Dimensions are shown as
inches followed by millimeters;
for example, 1" (25).

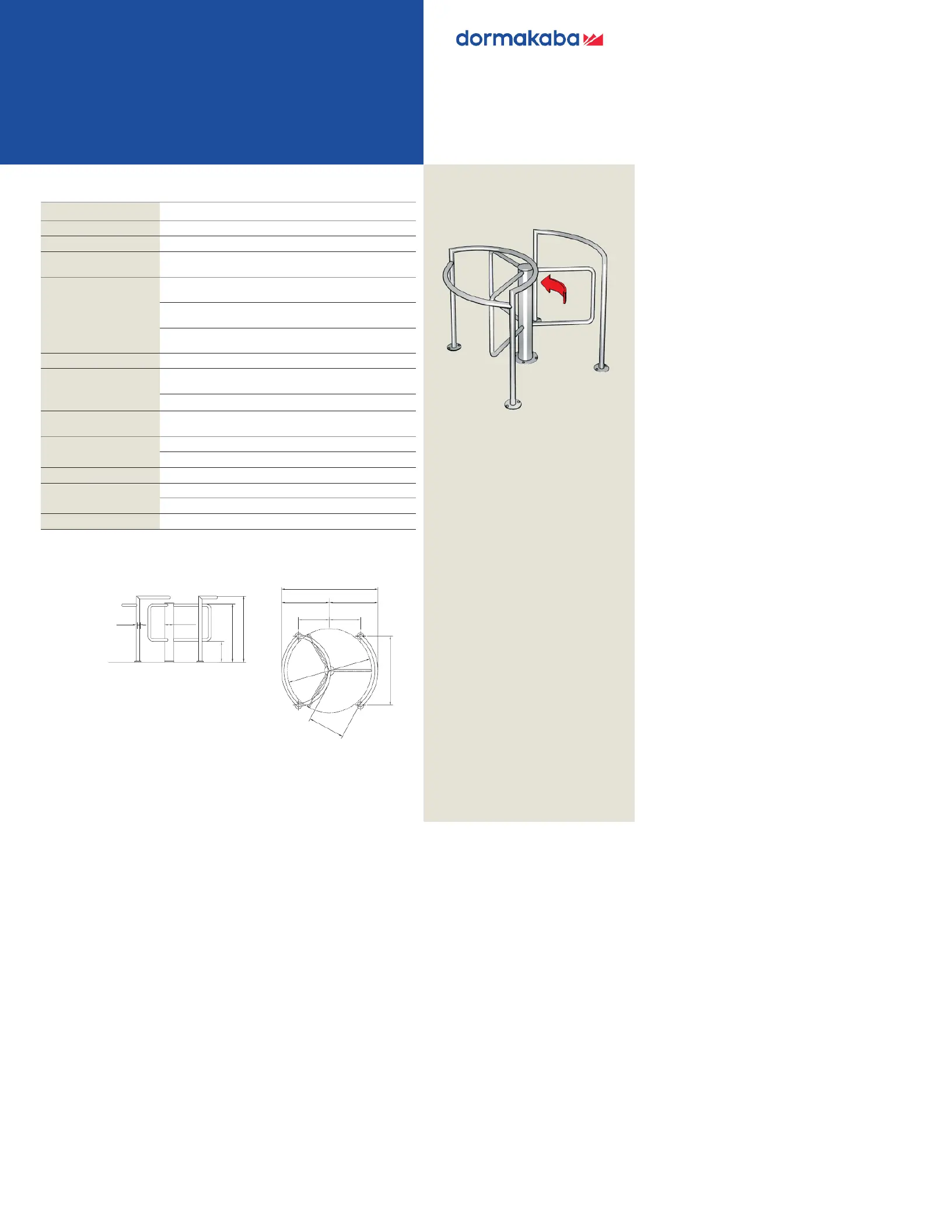

HTS-E01 elevation drawings
Standard units HTS-E01
Construction
Material AISI 304 stainless steel.
Side barrier elements Made of AISI 304 stainless steel tubing Ø1-7/8" (Ø48 mm),
mitered.
Rotating units With tubular column Ø5-1/2" (Ø140 mm) made of AISI 304
stainless steel.
With three U-shaped barrier elements made of AISI 304 stainless
steel tubing Ø1-9/16" (Ø40 mm).
Locking system, drive and toothed clutch installed in tubular
column.
Finish Stainless steel satin finish.
Function Power assist; servo-positioning drive/electrically controlled in 2
directions.
Passage side can be selected - inwards right or inwards left.
Electrical equipment Control unit in external switch cabinet:
H 11-1/8" × W 6-5/8" × D 4-1/2" (H 283 mm × W 168 mm × D 115 mm).
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
In case of power failure both directions free
Standby power consumption 15 VA.
Installation Finished floor.
Suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
Ø1-7/8"
(Ø48)
Ø5-1/2"
(Ø140)
12-5/8"
(320) 35-7/16"
(900)
40-1/4"
(1023)
22-3/8"
(568)
58-11/16"
(1491)
29-1/8"
(740)
29-9/16"
(751)
18 /8"-7
(480)
18 /8"-7
(480)
Ø51-3/16"
(Ø1300)
42-1/8"
(1070)
dormakaba HTS-E01 waist height turnstiles
EO 8.18
HTS-E01
Installation examples
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
Function
Barrier elements with glass panel.
Electrical equipment
Installation preparation with adapter or mounting plate.
Consoles with adapter made of plastic or aluminium (also available in stainless steel for an
additional charge).
Operating panels and frames or surface mount housing.
optional
Options
Ø5 /2"-1
(Ø140)
Ø1 /8"-7
(Ø48)
5/16"
(8)
5/16"
(8)
9-7/16"
(240)
5-1/2"
(140)
Guiding elements
Column
