Subject to change without notice

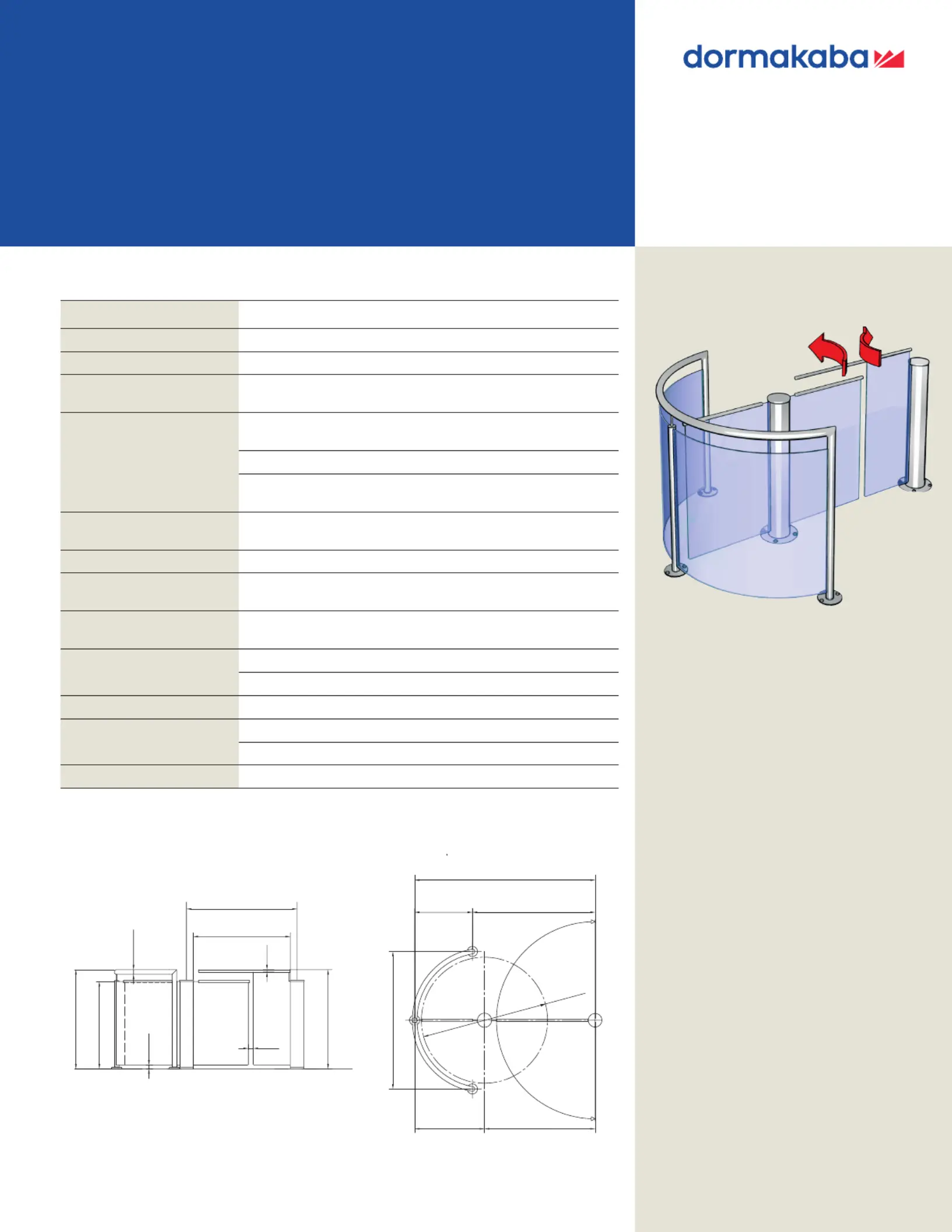

HTS-M01
Waist height turnstiles
HTS-M01 elevation drawings
Standard units HTS-M01
Construction
Material AISI 304 stainless steel / toughened safety glass, 3/8" (10 mm).
Side barrier elements Made of AISI 304 tubular stainless steel, Ø1-7/8" (Ø48 mm),
mitered, with 8 mm tempered safety glass.
Rotating unit 180° rotating unit; tubular column made of AISI 304 stainless
steel, Ø5-1/2" (Ø140 mm).
With two tall glass elements and stainless steel bar handles.
Locking system, drive, and toothed clutch installed in tubular
column.
HTS-M01 swing door Tubular column made of Ø5-1/2" (Ø140 mm) stainless steel with
3/8" (10 mm) TSG glass element and bar handle.
Finish Stainless steel satin finish.
Function Power assist; servo-positioning drive/ electrically controlled in
both directions.
Electrical equipment Two control units in external switch cabinet:
H 11-1/8" × W 6-5/8" × D 4-1/2" (H 283 mm × W 168 mm × D 115 mm).
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
In case of power failure both directions free.
Standby power consumption 15 VA.
Installation Finished floor.
Not suitable for outdoor installation.
Protection classes Housing IP43, components conducting supply voltage IP54.
/8"44-7
(1140)
39 /8"-3
(1000)
2"
(50)
35-7/16"
(900)
40-1/4"
(1023)
40-1/4"
(1023)
Ø1"
(Ø25)
Ø1-7/8"
(Ø48.3)
1- 16"9/
(40)
55-13/16"
(1418)
73 "-1/4
(1860)
23-7/16"
(595)
49-13/16"
(1265)
/8"44-7
(1140)
28-3/8"
(720)
Ø51-3/16"
(Ø1300)
Note
Dimensions are shown as
inches followed by millimeters;
for example, 1" (25).
dormakaba HTS-M01 waist height turnstiles
EO 8.18
HTS-M01
Installation examples
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
Electrical equipment
Installation preparation with adapter or mounting plate. ○
Consoles with adapter made of plastic or aluminium (also available in stainless steel for an
additional charge). ○
Operating panels and frames or surface mount housing. ○
○ optional
Options
Ø5 /2"-1
(Ø140)
Ø1 /8"-7
(Ø48)
5/16"
(8)
5/16"
(8)
9-7/16"
(240)
5-1/2"
(140)
Guiding elements
Column
