© 2015 DORMA
USA: DORMA DRIVE, DRAWER AC, REAMSTOWN, PA 17567 PHONE: (800) 523-8483 (717) 336-3881 FAX: (717) 336-2106
EMAIL: archdw@dorma-usa.com dorma-usa.com WEBSITE:

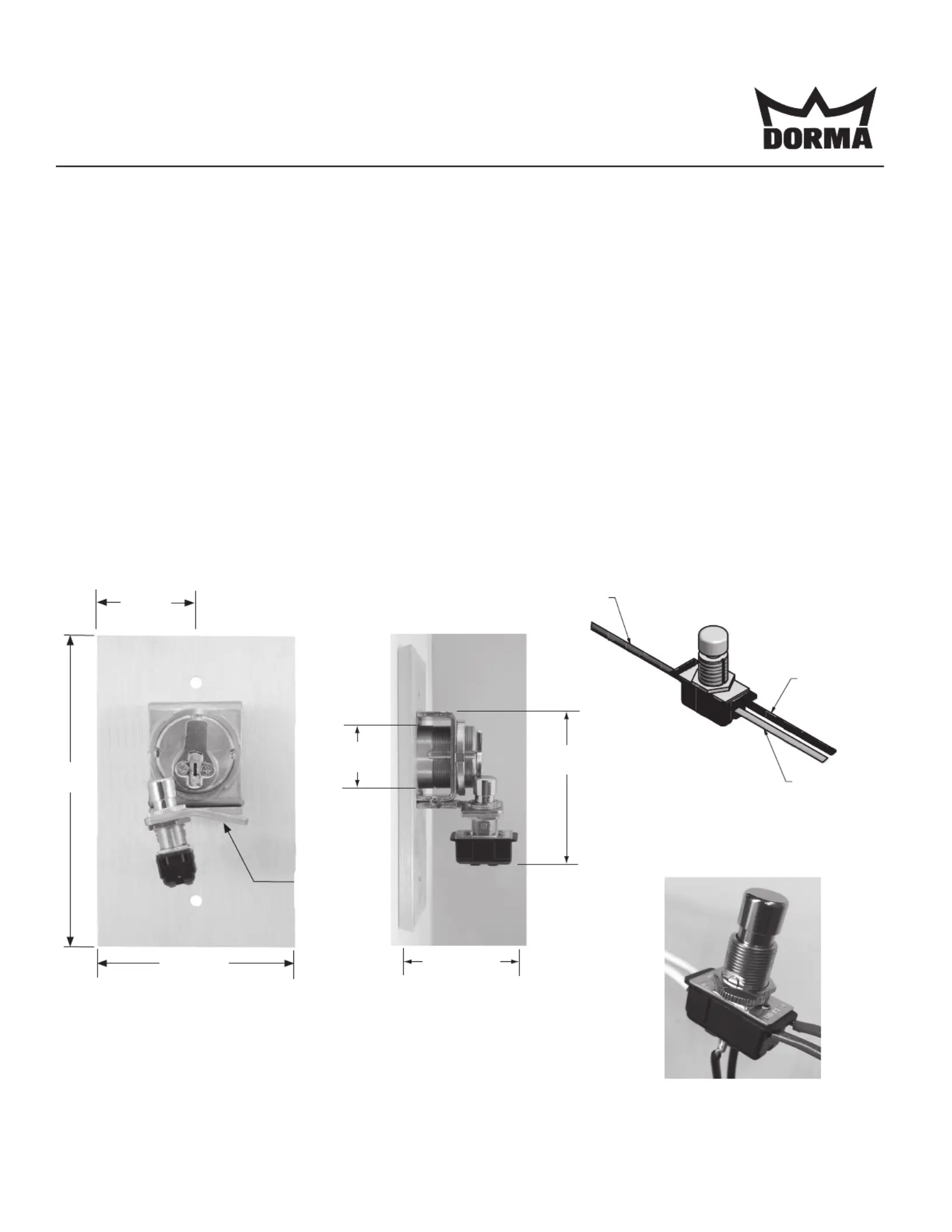

1. Place the mortise cylinder through the 1-3/16 hole "
in the center of the aluminum faceplate.
2. Mount the cylinder/switch bracket on the reverse
side of the faceplate (see photosbelow). Make sure
that the teeth are positioned inside the grooves
along the cylinder. Attach the cylinder nut to fasten.
3. Insert the switch(es) into the 1/2 holes located on "
the bracket below the cylinder. For ideal installation
thread the top nut an 1/8 down and tighten bottom "
nut using a 9/16 wrench."
4. Make wire connections as shown below.
5. Fasten faceplate assembly to electrical box with the
tamperproof 6-32 machine screws and spanner
hand tool supplied.
Instructions
Red N/C
Black (Common)
Red N/O (Maintained)
Green N/O (Momentary)
SPDT Wire Connection
ISKS
08281320
Key Switches
I N S T A L L A T I O N
KS500, KS800 SERIES
Rear Profile
Optional DPDT Switch Connection
Side Profile
1-3/4" (44mm)
1-3/16"
(30mm)
2-3/4"
(70mm)
(N) = Narrow Style KS5
3" (76mm)
1-11/16" (N)
(43mm)
1-1/2"
(38mm)
27/32" (N)
(21.5mm)
1/2" (13mm)
Switch Mounting
Hole
4-3/4"
(120.6mm)
N/C 1
(Red)
N/O 2
(White)
N/O 1
(White)
Common 2
(Black)
Common 1
(Black)
N/C 2
(Red)
PCN15052
R10/15TG-1
KS502PA, KS802PA

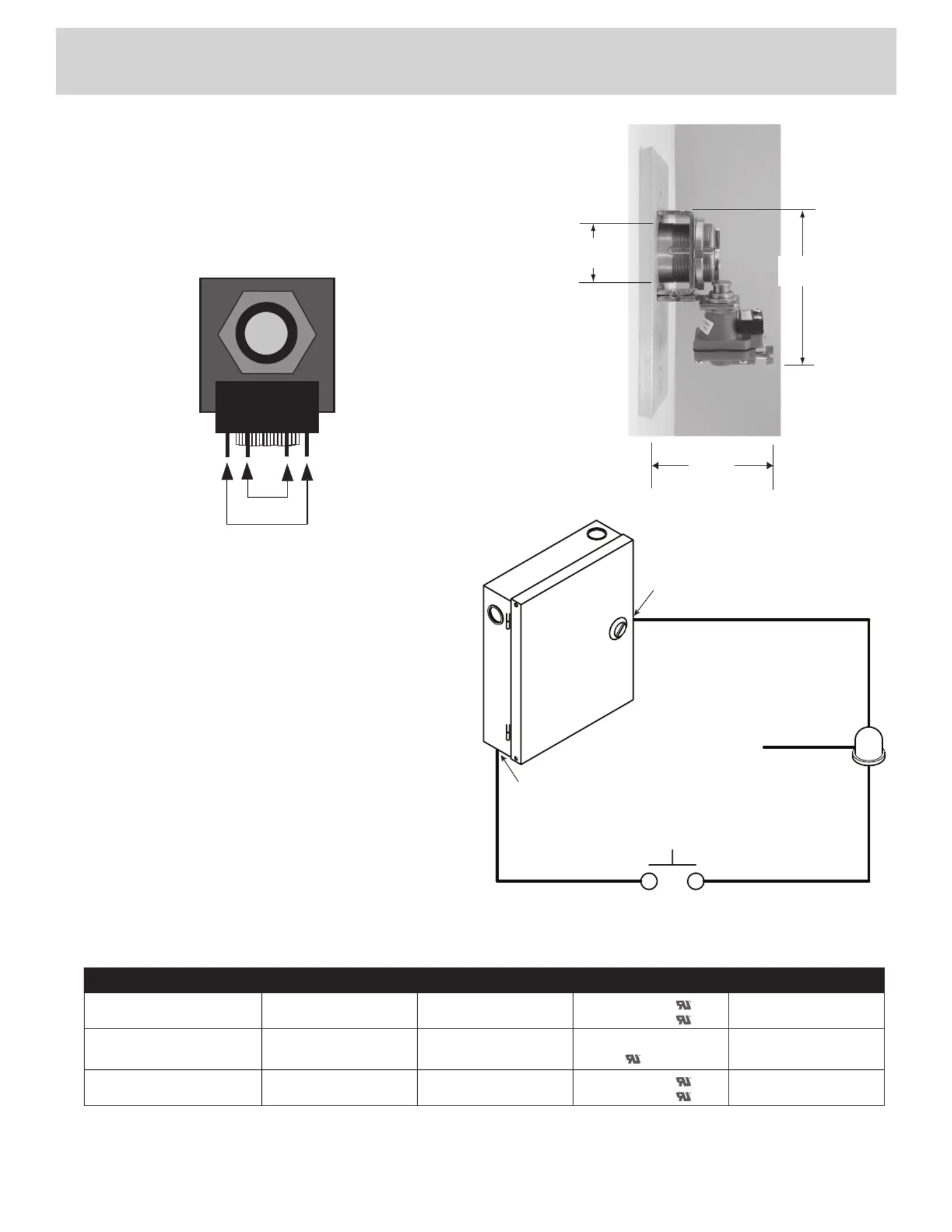

Pneumatic Time Delay Installation
1. Follow the same mounting steps 1- thru 3 as the
momentary and maintained switches on the front.
2. Make wire connections as shown below.
3. Fasten faceplate assembly to electrical box with the
tamperproof 6-32 machine screws and spanner
hand tool supplied.
Specifications
Time Range: 2 to 60 seconds
Switch Rating: 10AMP @ 125-250VAC
Terminals: Solder type Flying leads
Temperature Range: +15° to 120°F (-9° to +49°C)
To Decrease Time Delay:
Use slot screwdriver and turn time adjustment knob
counter clockwise.
To Increase Time Delay:
Use slot screwdriver and turn time adjustment knob
clockwise.
N/C (Red)
N/O (White)
KS Series Keyswitch Wiring Instructions
NOTE: Specifications are subject to change without notice.
Wire to Negative (-) of Power Supply
Black Wire
Green Wire
Red Wire
Wire to Positive (+) of Power Supply
NOTE: To wire LED for green light instead of red light —
disconnect red wire from switch point and connect green wire.
KS Series Bi-Color LED Installation
2
Description Switch Mode Switch Configuration Switch Rating Standard Finish
KS802 / KS502 Key Switch Momentary Action SPDT N/O & N/C 3A @ 125 VAC/VDC & CSA
1A @ 250 VAC/VDC & CSA
628 or 710
628 or 710
KS802PA / KS502PA Key Switch 2 to 60 seconds 1 x SPST N/O & 1 x SPST N/C 10A @ 125-250 VAC
& CSA 628 or 710
KS801 / KS501 Key Switch Maintained Action SPDT N/O & N/C 3A @ 125 VAC/VDC & CSA
1A @ 250 VAC/VDC & CSA
628 or 710
628 or 710
© 2015 DORMA
USA: DORMA DRIVE, DRAWER AC, REAMSTOWN, PA 17567 PHONE: (800) 523-8483 (717) 336-3881 FAX: (717) 336-2106
EMAIL: archdw@dorma-usa.com dorma-usa.com WEBSITE:
2-1/2"
(64mm)
1-3/16"
(30mm) 2-7/8"
(73mm)
