Subject to change without notice
Description
dormakabas Panther Series consists
of 900 MHz or 433 MHz wireless
technology integrated into 6" round,
4.75" round, and 4.75" square push
plates.
With an integrated wireless trans-
mitter and mounting box, the Panther
Series reduces installation time by
eliminating the need to run wires
from the push plate or use additional
mounting hardware. This offers
greater mounting flexibility in areas
where hard-wired push plates cannot
be mounted.
NOTE: Corresponding wireless receiver
sold separately.
Features & benefits
1⁄16" thick stainless steel for
maximum durability.
Concealed fasteners minimize
vandalism.
NEMA 4 rated housing creates a
weather resistant barrier that
enables the push plates to be
mounted in outdoor environments
or wash down applications.

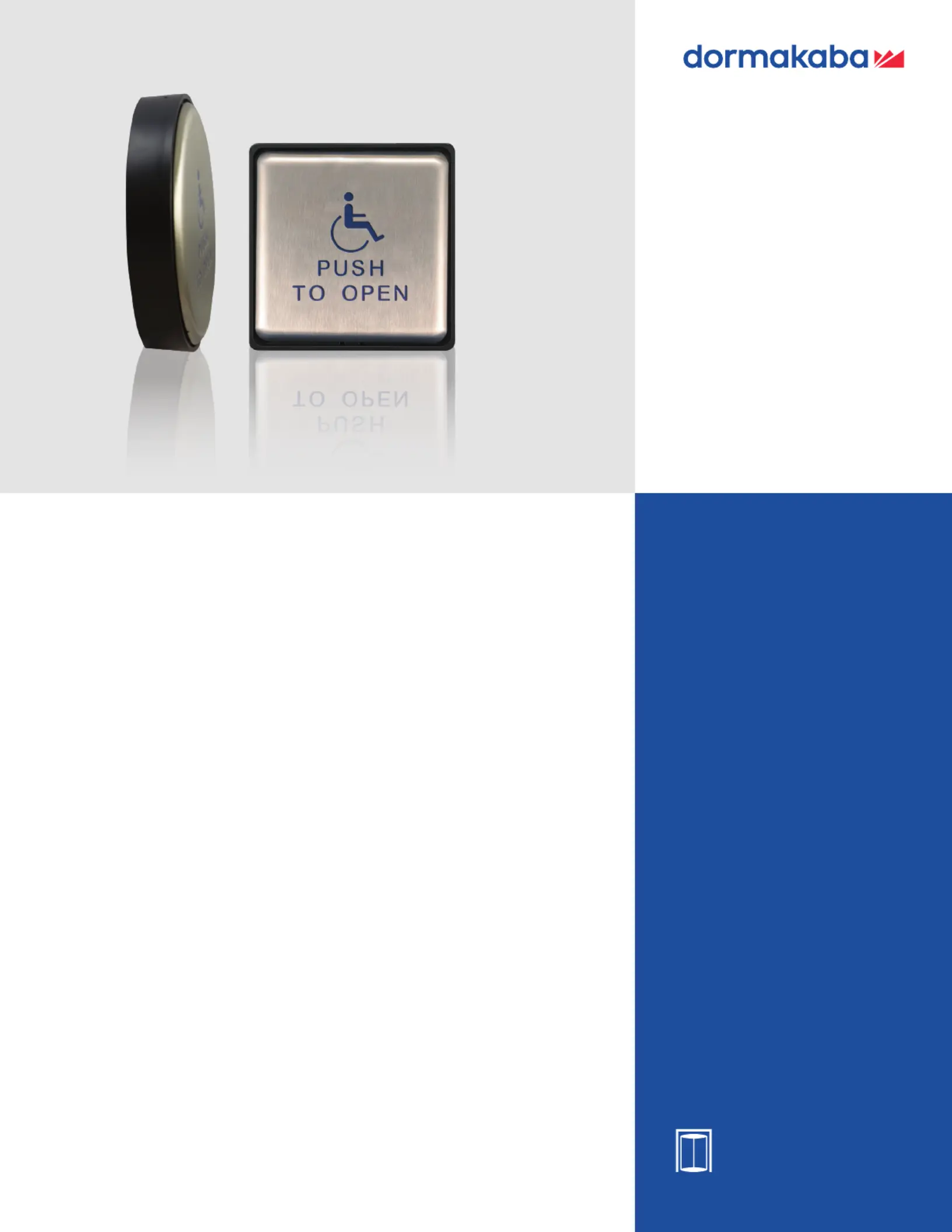

Panther Series
Push plates with integrated
wireless technology
Entrance systems
dormakaba Panther Series push plates with integrated wireless technology
Technical specifications
Panther Series push plate dimensional drawings
dormakaba Canada
1680 Courtney Park Dr. Unit 13
Mississauga, ON L5T 1R4
800.387.4938
www.dormakaba.ca
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844-SPECNOW
www.dormakaba.us
Panther Series push plates
DX3339-020
6" ROUND WITH 433 MHZ TEXT
& INTERNATIONAL SYMBOL FOR
ACCESS ISA ICON
DX3339-010
4.75ROUND WITH 433
MHZ TEXT & ISA ICON
DX3339-030
4.75SQUARE WITH 433
MHZ TEXT & ISA ICON
Dimensions
6" Round
4.75" Round
4.75" Square
6.33" (ø) × 1.45" (D)
5.12" (ø) × 1.42" (D)
5.12" (W) × 5.12" (H) × 1.42" (D)
Weight
6" Round
4.75" Round
4.75" Square
1.2 lb
1.14 lb
1.04 lb
Mounting options Surface or bollard mount
Transmitter
frequency
433 MHz or 900 MHz
Power (1) 12 V Type A23
(2) CR2032
Material 16 Gauge, 304 2B Stainless Steel
ABS plastic
Degree of protection NEMA 4 / IP65
FCC IC Part 15 approved
6" round
1.45"
Ø 6.33" Ø 5.12"
5.12"
1.42"
5.12"
1.45"
4.75" round
4.75" square
EO • 9.18 • 07000499-7
