© 2011 DORMA
USA: DORMA DRIVE, DRAWER AC, REAMSTOWN, PA 17567 PHONE: (800) 523-8483 (717) 336-3881 FAX: (717) 336-2106
EMAIL: archdw@dorma-usa.com WEBSITE: dorma-usa.com

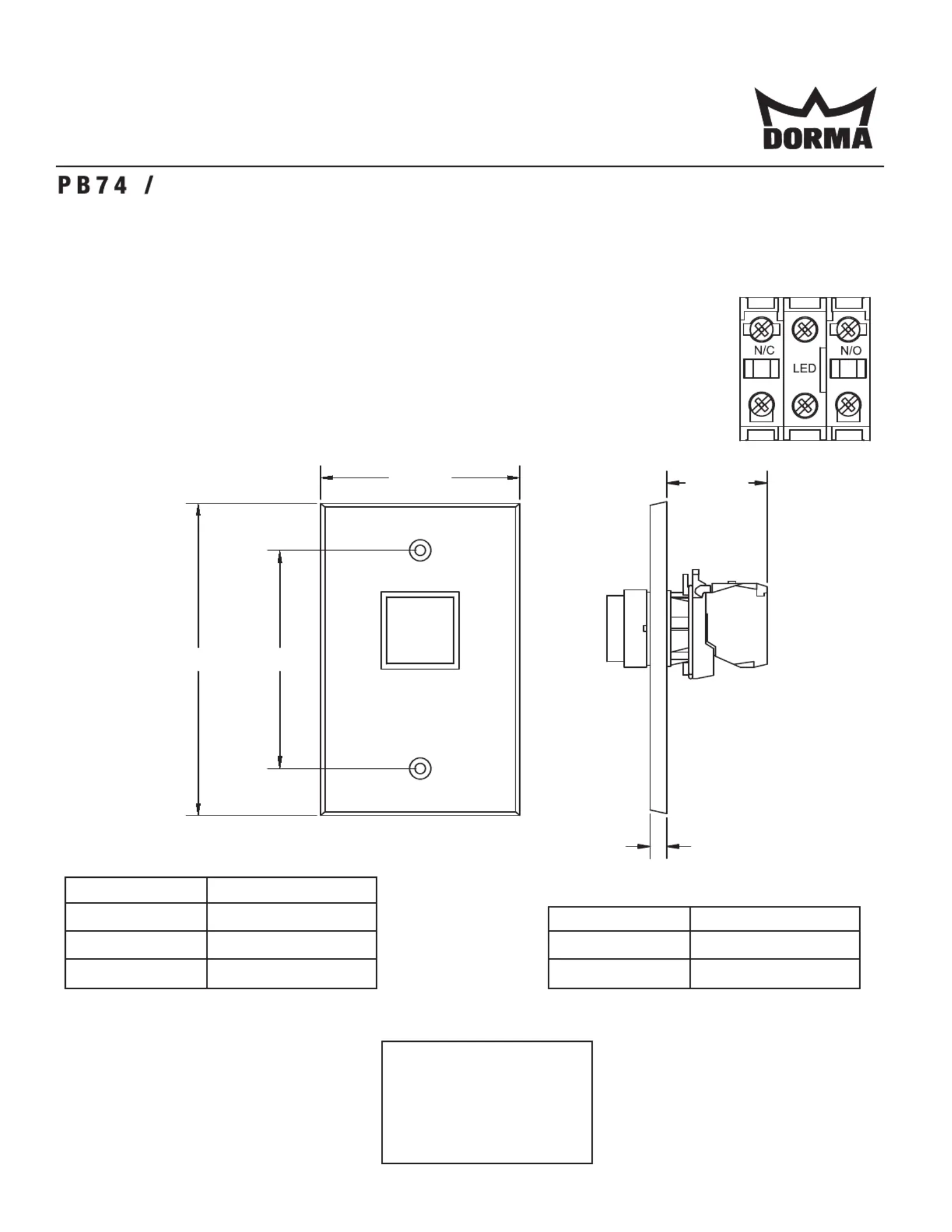

ISPB74/PB75
08281340
PCN110055
R12/11SH
4.7”
(119.4mm)
3.3”
(83.8mm)
3.0”
(72.6mm) 1.5”
(38.1mm)
0.25”
(6.4mm)
Instructions
1. Connect device to be controlled to N/O or N/C terminals as required.
2. Connect appropriate supply voltage to LED power terminals (optional)
3. Insert excess wiring into electrical box (not provided) and install switch cover plate to box.
NOTE: Contact and LED modules may be different than example shown depending
on which model is ordered. See back of Switch for details on configuration.
Cycle Rating of Switch modules: 5,000,000 cycle Operating Temperature: - 13°F to 158°F (-25°C to 70°C)
Items Include:
PB74 (12V) or PB75 (24V)
Pushbutton (1)
#6 Spanner Head Screws (3)
Thumb Driver Tool (1)
Installation Instructions (1)
Switch View
Voltage Current Rating
24VAC 4A Max
120VAC 8A Max
24VDC 0.5A Max
LED Voltage LED Current Draw
12VAC/DC 36mA
24VAC/DC 18mA
Switch Contact Specifications
LED Module Specifications
I N S T A L L A T I O N
P B 7 5
Push Buttons
