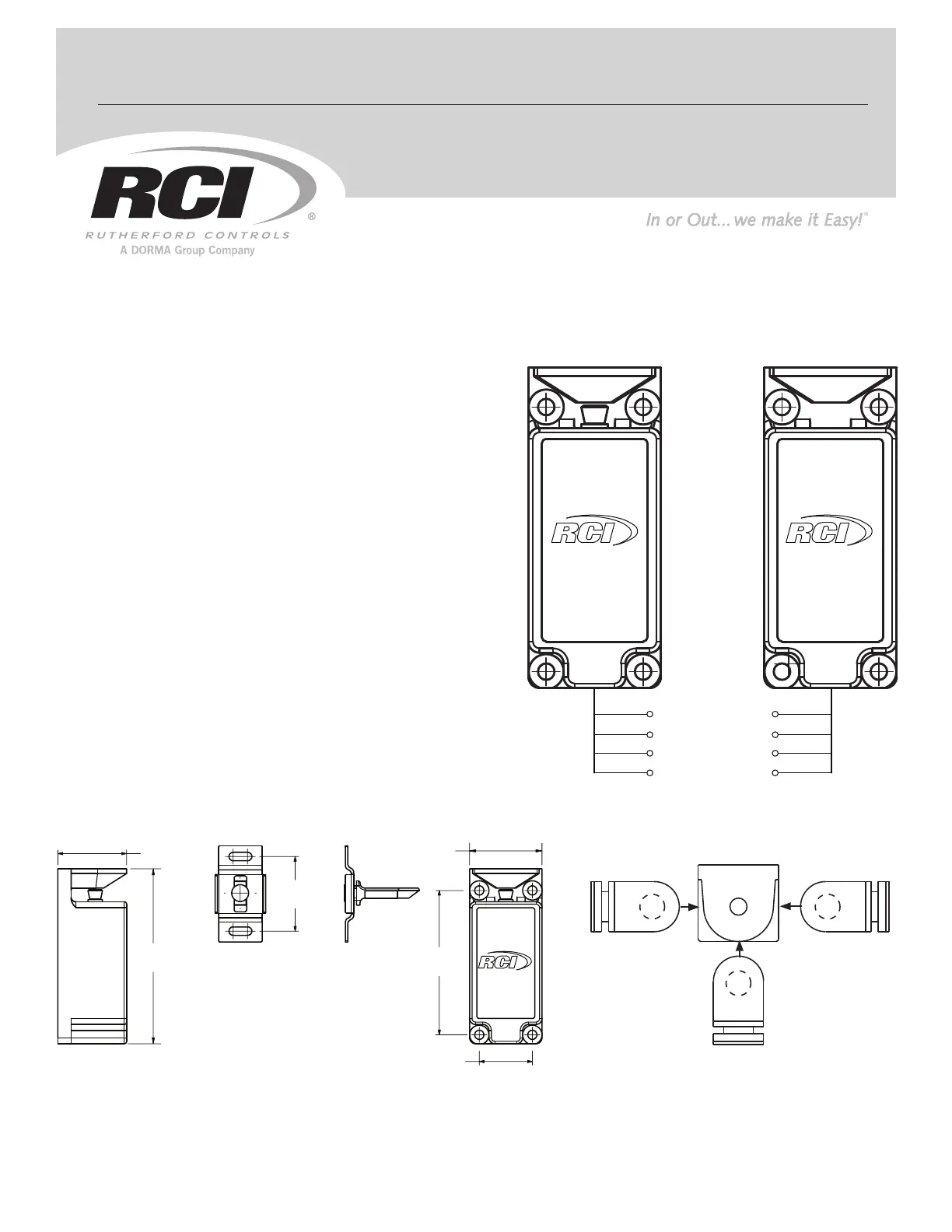

I N S T A L L A T I O N 12/24VDC 3513
Cabinet Lock
IS3513 PCN15037
R07/15GR-2
Instructions For Lock Mode Change
1. Remove the 4 screws on the bottom.
2. Remove base plate and solenoid.
3. Turn assembly 180 and re-route wires to cut out.°
4. Install into housing and insert the 4 screws.
© 2015 RutheRfoRd CoNtRolS INt’l | A doRMA GRouP CoMPANy
www.rutherfordcontrols.com • Phone: 1.800.265.6630 fax: 1.800.482.9795 e-mail: sales@rutherfordcontrols.com
Connect to
appropriate
DC voltage
(See Wiring Diagram)
Fail Locked Fail Unlocked
Overall and Mounting Dimensions
1-1/8"
(29mm)
2-7/8"
(73mm) 2-3/8"
(60mm)
1-3/16"
(30mm)
7/8" (22mm)
1-1/4"
(31mm)
3513 Installation Instructions (Continued)
© 2015 RutheRfoRd CoNtRolS INt’l | A doRMA GRouP CoMPANy
www.rutherfordcontrols.com • Phone: 1.800.265.6630 fax: 1.800.482.9795 e-mail: sales@rutherfordcontrols.com
Installation Dimensions
Swinging Cabinet Door
Sliding Cabinet Door
Cabinet Lock Dual Voltage Wiring Diagram
12VDC (180mA)
RED
BLUE
YELLOW
BLACK
12VDC
GND
24VDC (90mA)
RED
BLUE
YELLOW
BLACK
24VDC
GND
3/8" (10mm)
19/32" (15mm)
Minimum 25/32"
(20mm)
3/8" (10mm)
11/16" (18mm)
Rubber pad
Install rubber pad in between the mounting
surface and catch to secure catch position
