INSTALLATION
RCI 3525
ELECTROMECHANICAL SERVER RACK HANDLE
© 2020 dormakaba Canada Inc
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.comIS3525
PCN2013
R09-20GR-1
Package Contents
• 3525 Electromechanical Server Rack Handle
• 78.7” (2000 mm) Wire Harness
• M3x25mm Long Mounting Screws (qty 4)
• M3x14mm Long Mounting Screw
• Rotation Limiter - Standard
• Rotation Limiter - Extended (for thicker panels)
• CAM Bolt
• Top Mounting Bracket
• Bottom Mounting Bracket
• IS3525 Installation Instructions
• Keys (qty 3)
Specications
Voltage: 12VDC to 24VDC ( Status LED will blink red if the supply voltage is out of range.)NOTE:
Standby Current: 50mA maximum at 12VDC
Operating Current: 200mA maximum at 12VDC (with no external mechanical load applied to handle)
Operating Transit Time: 1 second maximum ( Power must be present during transit times. If power is removed NOTE:
while the lock slide is moving to the unlock position, then the control input signal must be
asserted again. If power is removed while the lock slide is moving to the lock position, it will
complete it’s cycle when power is restored.)
Electronic Unlock Time: 3 seconds minimum
Alarm Outputs: 100mA/output maximum
Overall Dimensions: 6-3/4" H x 1-1/2" W x 1” D* (170 x 37 x 25mm*)
(* depth from cabinet face)

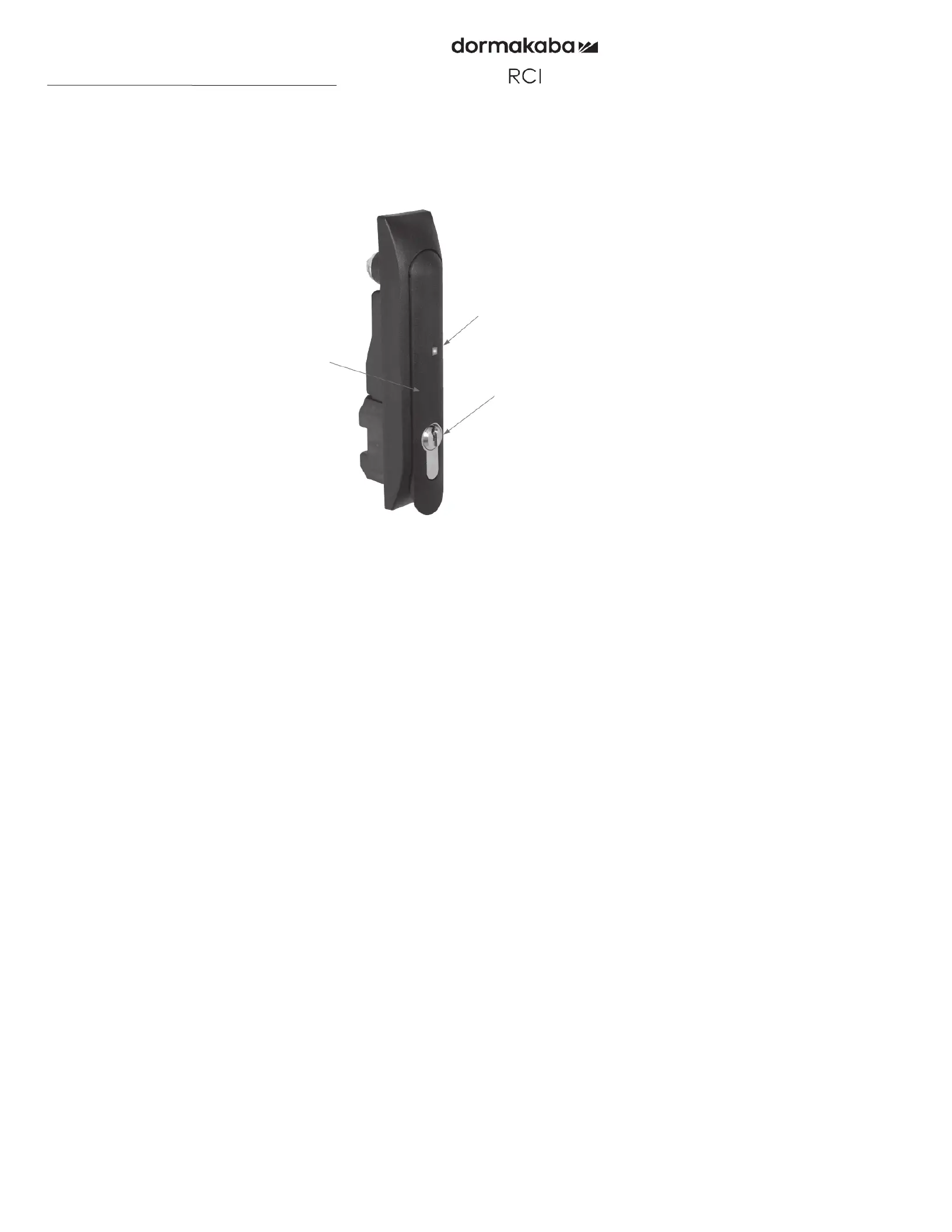

Tri-Color LED Indicator
Key Cylinder
Handle
2
1. Assemble handle according to the proper handing required.
2. Rotation Limiter and Bottom Mounting bracket determine handing.
3. If existing cam or rod mechanism are installed on original handle
remove and install on new handle. (minimum torque 4Nm)
4. Ensure the proper cutout in the door. (See Fig. 1)
5. Install handle though cutout and install top & bottom mounting
brackets. (Pozidrive with maximum 0.5Nm)
6. Install wiring harness and route to hinge side of door securing in
place to ensure that nothing will bind or catch.
7. Proceed to wiring. (See Fig. 2)
Handle Mounting
Rotation Limiter
Viewed from back.
Handle rotation is counter
clockwise from front.
Bottom Mounting Bracket
Viewed from back.
Key rotation is counter clockwise
from front.
Rotation Limiter
Viewed from back.
Handle rotation is
clockwise from front.
Bottom Mounting Bracket
Viewed from back.
Key rotation is clockwise
from front.
NOTE:
* 1) Cut-out dimensions.
2) Handing is determined by rotation
limiter and bottom mounting bracket.
Fig. 1
select appropriate
Rotation Limiter
CAM
Top Mounting
Bracket
CAM Bolt
M3x14mm Screw
(1 place)
M3x25mm Screw
(4 places)
5.9" *
150mm
1" *
25mm
Bottom
Mounting Bracket
© 2020 dormakaba Canada Inc
www.dormakaba.us • Phone: 1.800.265.6630 • Fax: 1.800.482.9795 • E-mail: sales_RCI@dormakaba.com
Wiring
1. Red & Black are 12 to 24 VDC input voltage.
2. Orange is a positive input with a Normally Open Switch.
The lock will unlock for a minimum of 3 seconds on a
momentary activation (50 millisecond min.) or remain
unlocked as long as the circuit is closed.
3. Yellow is an alarm that will activate when the key is used to
unlock the cabinet or anytime the handle is not seated and
locked.
4. Brown is an alarm that will activate when the lock is
electrically activated and will remain on until the lock
electrically relocks.
Fig. 2
RED: Postive
BLACK: Negative
ORANGE: Activation Trigger
YELLOW: 100mA Output for Alarm
BROWN: 100mA Output for Alarm
+
-
12~24 VDC
POWER SUPPLY
BROWN
100mA MAX
Fig. 2a
Lock Status Latch LED Alarm Wires
Secure Steady Blue Inactive
Electrically
Released
Blue/ Magenta
Flashing Brown Active
Mechanically
Released Blue Flashing Yellow Active
Handle Not Fully
Closed
Blue/Red
Flashing Yellow/Brown Active
NOTE: The lock sensor is an optical device that senses the
presence of the locking cam.
Reectivity of the locking cam material can affect sensing.
Keyed cylinder can affect sensing.
Removal of the factory installed keyed cylinder will void the
warranty.
REMARQUE: Le capteur de la serrure est un dispositif optionnel qui
capte la présence de la came de verrouillage.
La réectivité du matériel de la came de verrouillage peut nuire à la
sensibilité.
Le cylindre à clé peut nuire à la sensibilité.
Le retrait du cylindre à clé installé par le fabricant annulera la
garantie.
NOTA: El sensor de la cerradura es un dispositivo óptico que
detecta la presencia de la leva de bloqueo.
La reectividad del material de la leva de bloqueo peude afectar la
detección.
El cilindro con chaveta puede afectar la detección.
La extracción del cilindro con chaveta instalado en fábrica
anulará la garantía.
BLACK
RED
ORANGE
YELLOW
100mA MAX
3
