Subject to change without notice
TPB-E02
Tripod turnstiles
Entrance systems
Standard units TPB-E02
Construction Housing and base columns in a single unit (open design).
Housing material AISI 304 stainless steel.
Base column, base or
flange plate material
AISI 304 stainless steel.
Crossbar material AISI 304 stainless steel.
Finish Stainless steel satin finish.
Function (see below) Mechanical (Manual).Function
Power assist.
Electrical equipment Control system integrated in the unit.
Power supply 110 – 230 VAC, 50/60 Hz, 253 VA.
Standby power consumption 10 VA.
Installation Finished floor.
Suitable for outdoor installation.
Protection classes Housing IP33, components conducting supply voltage IP43.
Function
• Manual—Mechanical operation, free in
one direction/opposite direction blocked.
• Power assist—Power-assisted motion;
servo-positioning drive/ electronically
controlled in both directions (behavior in
event of power failure can be selected
for each direction: free or blocked).
30-5/16"
(7 )70
6-5/16" (160)
6-5/16" (160)
46-1/16"
(1170)
33-7/16"
(850)
20-1/16"
(510)
10 "-1/4
(260)
35-7/16"
(900)
40-3/16"
(1020)
Note
Dimensions shown as inches
followed by millimeters; for
example, 1" (25).

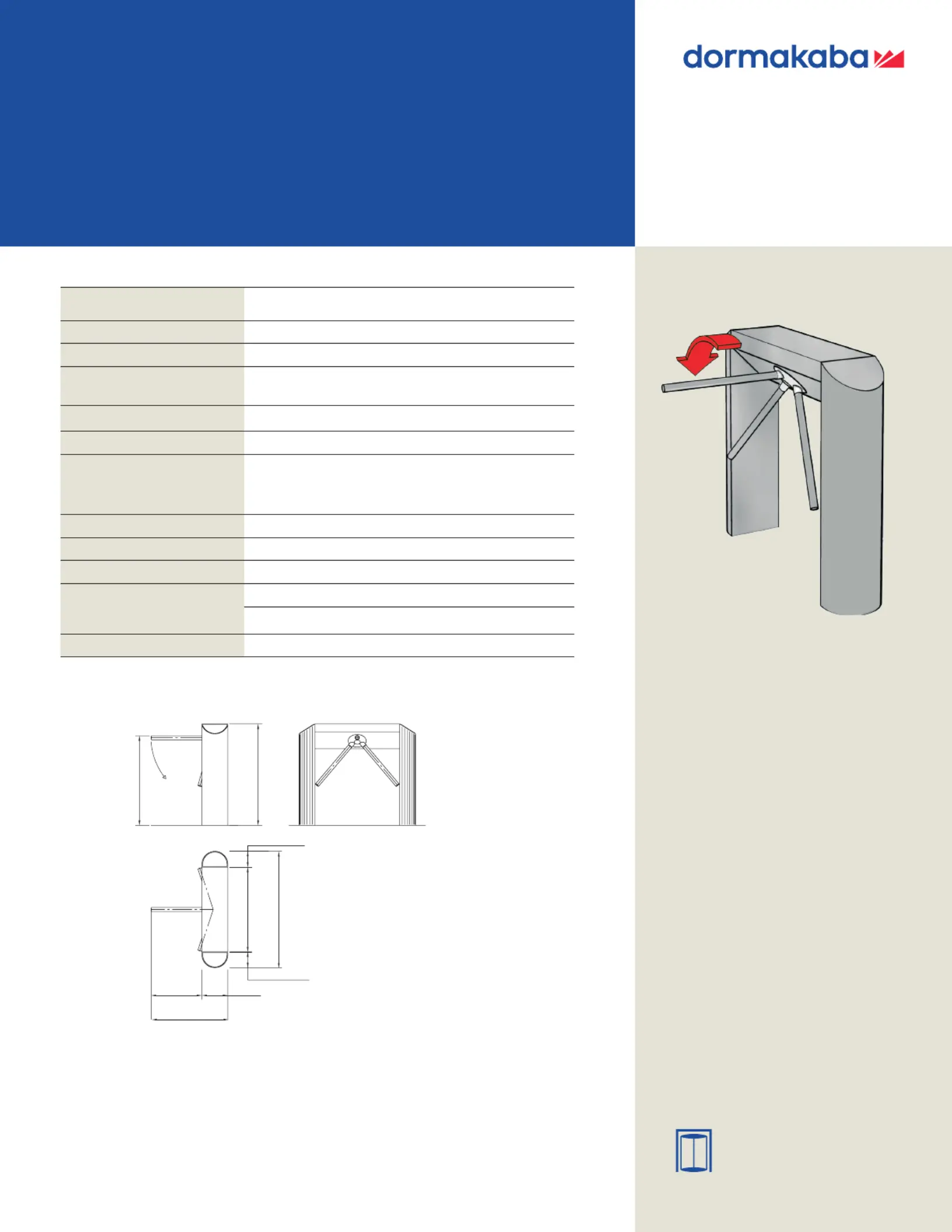

TPB-E02 elevation drawings
35-7/16"
(900)
35-7/16"
(900)
1-9/16"
(40)
40-3/16"
(1020)
20-1/16"
(510)
10-1/4"
(260)
2-3/4"
(70)
2-3/4"
(70)
35-7/16"
(900)
76"
(1930)
38-3/16"
(970)
42-15/16"
(1090)
98-13/16"
(2510)
141-5/16"
(3590)
131-1/8"
(3330) 0
dormakaba
EO 8.18
TPB-E02

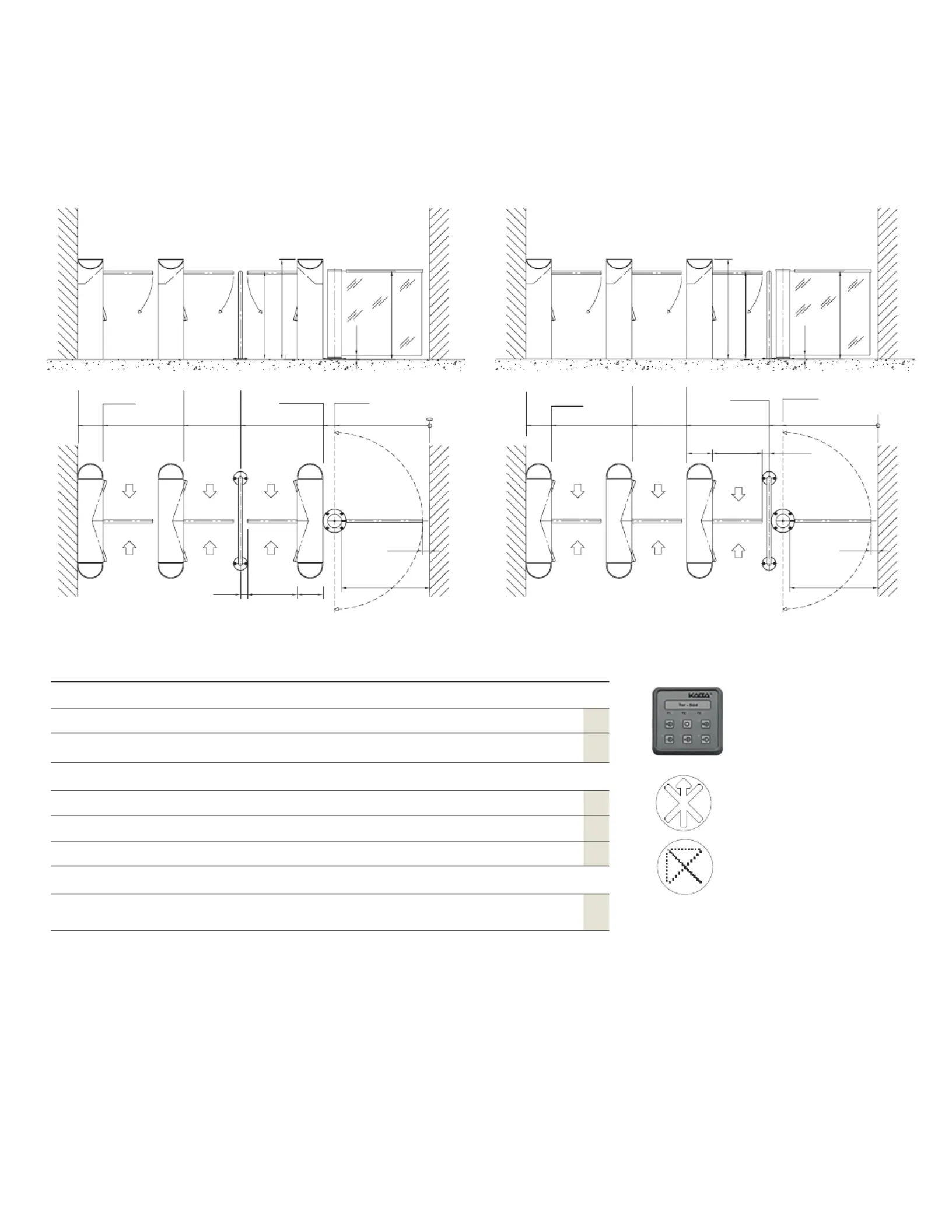

Installation drawings
dormakaba USA Inc.
Dorma Drive, Drawer AC
Reamstown, PA 17567
844.SPECNOW
www.dormakaba.us
35-7/16"
(900)
35-7/16"
(900)
1-9/16"
(40)
40-3/16"
(1020)
20-1/16"
(510)
10-1/4"
(260)
2-3/4"
(70)
2-3/4"
(70)
35-7/16"
(900)
76"
(1930)
38-3/16"
(970)
42-15/16"
(1090)
98-13/16"
(2510)
141-5/16"
(3590)
131-1/8"
(3330)
Function
Counter ○
Collapsible bars on units with power-assist. ○
Electrical equipment
Installation preparation for components provided by customer. Including cover plate. ○
Operating panels and frames or surface mount housing. ○
Various signal devices. ○
Installation
Pallet with stainless steel ramp and rubber covering, approx. 3' 3-5/16" x 4' 11-1/16"
(1.0 m x 1.5 m), height approx. 1-1/4" (32 mm). ○
○ optional
Options
OPL 05 operating panel
Signal device LED
arrow-cross (installed
in the housing or in the
cover plate on both
sides).
TPB-E02 tripod turnstiles
