FEATURES

Polivoks core stereo lowpass/bandpass VCF

with the original programmable opamps

Unique audio overdrive circuit

Versatile syncable LFO with 8 waveforms

Tap tempo button

Envelope follower with modulation level attenuverter

Master modulation control

Manual and CV control over cutoff frequency

Conﬁgurable control input for footswitch, expression

pedal and external LFO/cutoff control

Adjustable input gain

SPECS

Input signal level up to 20V ptp

Input signal ampliﬁcation up to +20dB

Modulation CV level up to 20Vptp

LFO Synchronization trigger level 0 - +5V

Power supply: universal mains adapter 110 – 220V

Mass: 0,7kg

Dimensions: 185x140x55mm

The AcidboxIII

Universal AC/DC adapter for worldwide use

User manual

What you get

Erica Synths AcidboxIII brings you the core of the famous

Polivoks VCF in stereo version with unique audio signal

overdrive circuit, built in LFO and envelope follower in a

compact, full aluminium case. The AcidboxIII has

adjustable input gain, therefore it works with various

sound sources – guitars, units with line level signals

(synthesizers, grooveboxes, etc.) and modular synths.

Conﬁgurable control input allows to connect a bypass

footswitch, expression pedal, external cutoff control

voltage source and LFO synchronization trigger. This

makes the Acidbox ideal companion in almost every

production or live performance setup.

Thank you for ordering

Erica Synths Acidbox lll !

Power supply input

Use the PSU supplied with

the Acidbox III! It’s

universal PSU you can use

all over the world.

ON-OFF switch

Slide to activate the unit!

LFO LED will go on for

visual control.

Gain knob

Adjust input gain of the

Acidbox. CW setting boosts

input signal for +20dB, so

you can use the Acidbox

with a guitar.

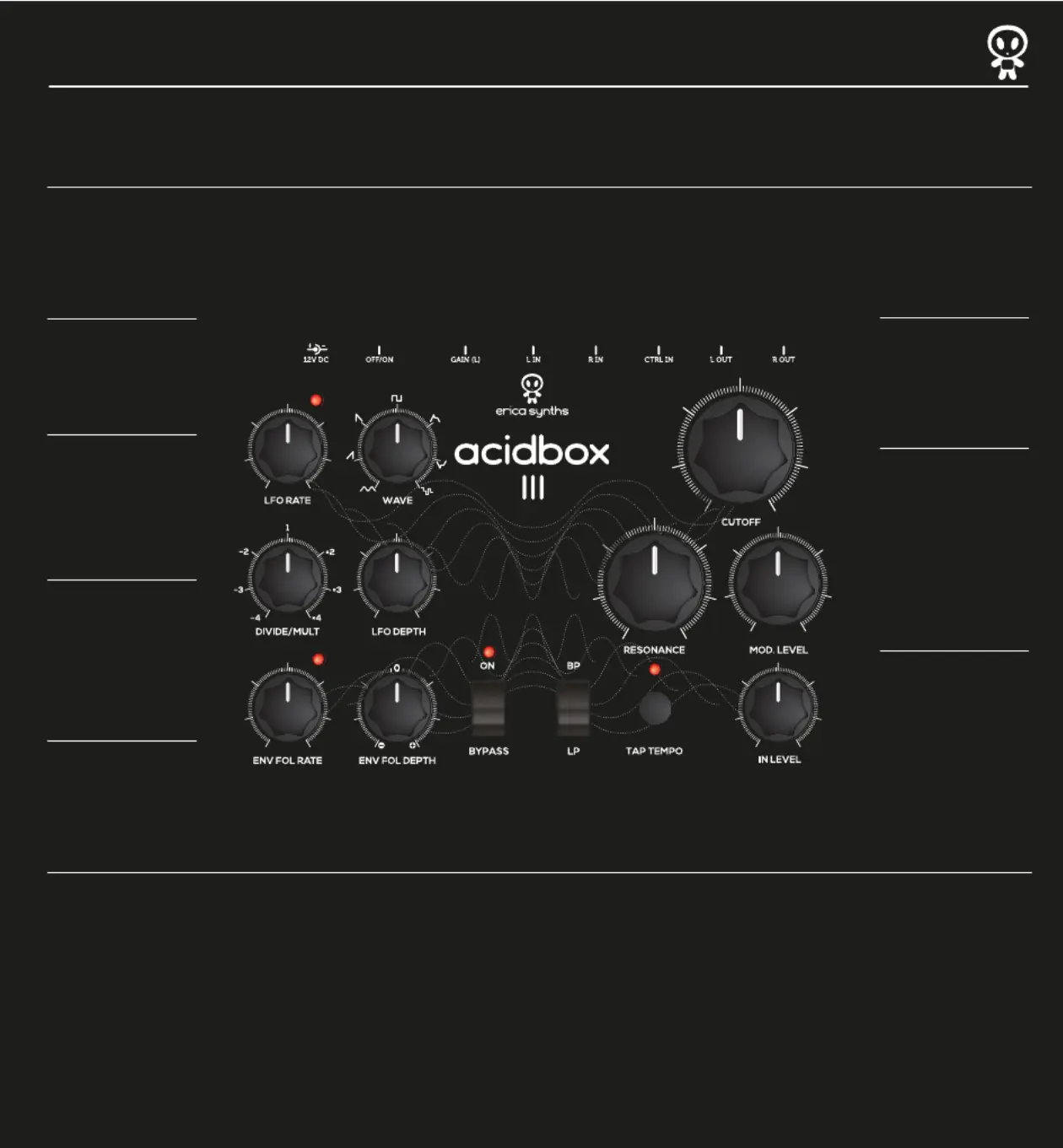

Left and Right Audio Inputs

The R IN is normalled to L

IN, so mono signal patched

in L IN is split to both

channels.

CTRL IN is conﬁgurable control input

Possible conﬁgurations are:

ON/Bypass footswitch

Cutoff CV input

LFO synchronization input

Expression pedal.

L OUT and R OUT

are AcidboxIII audio outputs.

These are balanced outputs

ready for stage use.

Envelope Follower Rate Knob

Adjust the envelope follower

decay rate. CCW setting is

maximum, CW minimum.

The LED will give visual

feedback on EF status.

Envelope Follower Depth Knob

Adjust desired amount of the

envelope follower CV sent to

the ﬁlter cutoff. 0 modulation

is at 12 o’clock. You can choose

direct or inverted envelope

follower shape by turning the

knob CW or CCW.

Bypass switch

The Acidbox II has true bypass

mode. Dry and Wet signals

have equal levels unless the

cutoff knob is fully CCW.

Filter mode switch

Switch between Lowpass

and Bandpass ﬁlter modes.

Tap tempo button

Tap the button to synchronize

the LFO to your music beat.

The LED will indicate tap

rate.

Audio Input Level Knob

Adjust desired input level! This knob has a

hidden feature – overdrive. Typically, till 12

o’clock it will gradually increase input

signal level, but over 12 o’clock will start to

overdrive the signal. The starting point of

overdrive will greatly depend on the audio

signal level and Gain setting. Experiment

with your setup for optimal response!

LFO Speed Knob

Set the initial LFO speed.

The LED will indicate LFO

output status.

LFO Shape Knob

Select LFO shape. The fully

clockwise setting gives you

sample and hold effect.

LFO Divider/Multiplier knob

Instantly divide of multiply

the LFO frequency. This

works especially great

when acidbox is synced to

drummachine.

LFO Depth Knob

Adjust to achieve desired

amount of LFO CV sent to

the ﬁlter cutoff!

Master Modulation Level Knob

This knob allows to control

master modulation (LFO+EG)

level. It’s useful, if you want to

play with complex modulations

during the live performance.

Otherwise set the knob full CW

and manipulate LFO Depth and

Envelope Follower depth knobs.

Resonance Knob

Set desired resonance level

from 0 to self-oscillation. It

affects both VCF channels

simultaneously. Polivoks VCF is

famous for it’s crazy resonance

sweeps – mind your ears,

neighbours and monitor

speakers! Use this knob

responsibly!

Cutoff Knob

Adjust manually initial cutoff

frequency for LP or BP ﬁlters

from completely closed to full

open. Cutoff knob affects both

VCF channels simultaneously.

PLUG and PLAY

Patch examples

SIMPLE FILTER

With these settings Acibox III works as a simple stereo

ﬁlter without any modulation applied to the cutoff.

* Play around input setting to add saturation to the

incoming signal as the IN LEVEL knob after 12o clock

starts to overdrive it.

BEAT FOLLOWER

With these settings you can really spice up your beats.

The Envelope follower is set to react really quickly to the

incoming signal therefore adding a lot of movement to

the ﬁlter.

* Play around with input settings as it affects the envelope

follower behavior.

SYNTH FOLLOWER

With these settings the envelope follower and the LFO

are both in action therefore adding a lot of movement to

the ﬁlter.

* Try out these settings with a toy keboard organ and you

will be surprized how deep and animated the output sound

becomes.
