HEATSTAR, Inc., 4560 W. 160TH ST., CLEVELAND, OHIO 44135 • 866-447-2194
WARNING:
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
— An LP cylinder not connected for use shall not be stored in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light appliance.
• Extinguish any open flame.
• Shut off gas to appliance.
— Service must be performed by a qualified service agency.
This is an un-vented gas-fired portable heater. It uses air (oxygen) from the area in which it is used.
Adequate combustion and ventilation must be provided. Refer to pages 4 & 5.

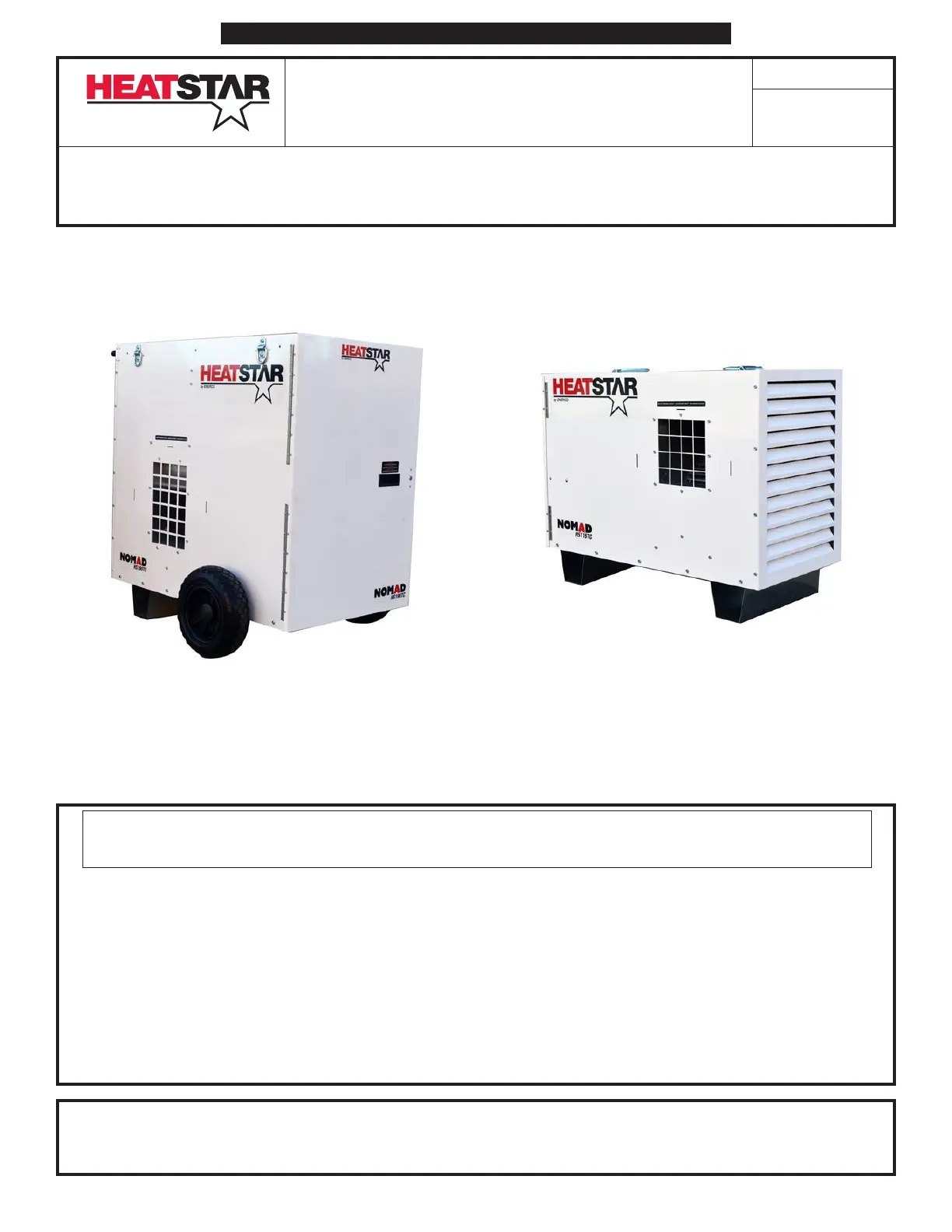

FORCED-AIR SINGLE-FUEL
NOMAD HEATER
If the information in this manual is not followed exactly, a fire or explosion
may result, causing property damage, personal injury or loss of life.
HS115SF
HS190SF
HS250SF
OPERATING INSTRUCTIONS
AND OWNER’S MANUAL
READ INSTRUCTIONS CAREFULLY: Read and follow all instructions. Place instructions in a safe place
for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust
or operate the heater.
Model #
LANGUAGES INCLUDED
•ENGLISH
•FRENCH
•SPANISH
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!
2
Forced-Air Single-Fuel NOMAD Construction Heater Operating Instructions and Owner’s Manual
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!
CONTENTS
WARNINGS 2 ..........................................................................
SPECIFICATIONS 3 ..................................................................
OPERATING PRECAUTIONS 4 ..................................................
SAFETY PRECAUTIONS 4 ........................................................
ODOR FADE WARNING 5 .......................................................
ASSEMBLY AND PREPARATION FOR OPERATION 6 ................
HOSE AND REGULATOR INFORMATION 6 ..............................
RATE SELECTION 7 .................................................................
OPERATION 7 .........................................................................
USING THE ACCESSORIES 8 ...................................................
SHUT DOWN AND STORAGE ...............................................9
MAINTENANCE 9 ....................................................................
PROPANE TANK SIZE SELECTION 10 .......................................
TROUBLESHOOTING 11 ..........................................................
WIRING DIAGRAM 12 ............................................................
PARTS LISTS AND EXPLODED VIEWS 14 .................................
WARRANTY INFORMATION 20 ...............................................
This NOMAD Forced-Air Single-Fuel construction
heater was Assembled in the U.S.A. by:
Enerco Group Inc. 4560 West 160th Street
Cleveland, Ohio 44135
For Questions and Inquiries Contact us at:
CALL: 866-447-2194
FAX: 800-321-0552
VISIT: HEATSTARBYENERCO.COM
Office hours are:
Monday - Friday 8:00am - 5:00pm
WARNING:
YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS,
SO PLEASE READ THESE INSTRUCTIONS BEFORE YOU
OPERATE THIS HEATER.
GENERAL HAZARD WARNING:
FAILURE TO COMPLY WITH THE PRECAUTIONS AND
INSTRUCTIONS PROVIDED WITH THIS HEATER, CAN
RESULT IN DEATH, SERIOUS BODILY INJURY AND
PROPERTY LOSS OR DAMAGE FROM HAZARDS OF
FIRE, EXPLOSION, BURN, ASPHYXIATION, CARBON
MONOXIDE POISONING, AND/OR ELECTRICAL SHOCK.
ONLY PERSONS WHO CAN UNDERSTAND AND FOLLOW
THE INSTRUCTIONS SHOULD USE OR SERVICE THIS
HEATER.
IF YOU NEED ASSISTANCE OR HEATER INFORMATION
SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC.
CONTACT THE MANUFACTURER.
WARNING:
FIRE, BURN, INHALATION, AND EXPLOSION HAZARD.
KEEP SOLID COMBUSTIBLES, SUCH AS BUILDING
MATERIALS, PAPER, OR CARDBOARD, A SAFE DISTANCE
AWAY FROM THE HEATER. AS RECOMMENDED BY THE
INSTRUCTIONS NEVER USE THE HEATER IN SPACES
WHICH DO OR MAY CONTAIN VOLATILE OR AIRBORNE
COMBUSTIBLES, OR PRODUCTS SUCH AS GASOLINE,
SOLVENTS, PAINT THINNER, DUST PARTICLES OR
UNKNOWN CHEMICALS.
WARNING:THIS PRODUCT CAN EXPOSE
YOU TO CHEMICALS INCLUDING LEAD AND LEAD
COMPOUNDS, WHICH ARE KNOWN TO THE STATE
OF CALIFORNIA TO CAUSE CANCER AND BIRTH
DEFECTS OR OTHER REPRODUCTIVE HARM. FOR MORE
INFORMATION VISIT WWW.P65WARNINGS.CA.GOV
WARNING: Fuels used in liquefied propane
gas appliances, and the products of combustion of such
fuel, can expose you to chemicals including benzene, which
is known to the State of California to cause cancer and
cause birth defects or other reproductive harm, for more
information go to www.P65Warnings.ca.gov
WARNING:
NOT FOR HOME OR RECREATIONAL VEHICLE USE
Operating Instructions and Owner’s Manual
3
Forced-Air Single-Fuel NOMAD Construction Heater
NEVER LEAVE THE HEATER UNATTENDED WHILE BURNING!
MODEL# (Stock#) HS115SF (F109200) HS190SF (F109210) HS250SF (F109220)
INPUT RATE
HIGH [BTU/HR (kW)] 110,485 (32.4) 190,200 (55.7) 248,403 (72.8)
LOW [BTU/HR (kW)] 76,500 (22.4) 127,100 (37.2) 179,536 (52.6)
FUEL REQUIREMENTS
FUEL TYPE LP (Propane) Gas Only LP (Propane) Gas Only LP (Propane) Gas Only
OPERATING GAS PRESSURE
MAX SUPPLY ["W.C. (kPa)]* 14 (3.5) 14 (3.5) 14 (3.5)
MIN SUPPLY ["W.C. (kPa)]* 7.1 (1.8) 7.6 (1.9) 8.4 (2.1)
MANIFOLD PRESSURE ["W.C. (kPa)] 6.5 (1.6) 6.5 (1.6) 6.5 (1.6)
DUCT PRESSURE
MAXIMUM STATIC PRESSURE [”W.C. (kPa)] 0.35 (0.087) 0.65 (0.162) 0.87 (0.216)
FUEL CONSUMPTION
HIGH [LBS/HR (kg/HR)] 5.15 (2.34) 8.86 (4.02) 11.58 (5.25)
LOW [LBS/HR (kg/HR)] 3.74 (1.70) 5.92 (2.69) 8.37 (3.80)
ELECTRICAL SPECIFICATIONS
ELECTRICAL SUPPLY
(Voltage / Frequency / Phase) 115 V / 60 Hz / 1 Ø 115 V / 60 Hz / 1 Ø 115 V / 60 Hz / 1 Ø
CONTINUOUS AMPERAGE 3.6 A 5.5 A 9.1 A
MOTOR HORSEPOWER 1/3 hp 1/2 hp 3/4 hp
MOTOR WATTAGE 220 W 500 W 800 W
MOTOR R.P.M. 1100 1100 1035
WEIGHTS & DIMENSIONS
HEATER WEIGHT 91 LBS (41.3 kg) 159 LBS (72.1 kg) 165 LBS (74.8 kg)
HEATER DIMENSIONS
LxWxH [in. (cm)]
30" x 23.75" x 15"
(76.2 x 60.3 x 38.1)
35.75" x 34.75" x 20.25"
(90.8 x 88.3 x 51.4)
35.75" x 34.75" x 20.25"
(90.8 x 88.3 x 51.4)
CARTON WEIGHT 102 LBS (46.3 kg) 176 LBS (79.8 kg) 182 LBS (82.6 kg)
CARTON DIMENSIONS
LxWxH [in. (cm)]
34.5" x 25.75" x 20"
(87.6 x 65.4 x 50.8)
39" x 36.75" x 24.25"
(99.1 x 93.3 x 62.1)
39" x 36.75" x 24.25"
(99.1 x 93.3 x 62.1)
*GAS PRESSURE REGULATED TO 11” W.C. (2.7 kPa) WHEN USING THE INCLUDED HOSE AND REGULATOR.
SPECIFICATIONS
TOP SIDES BACK OUTLET
HS115SF 12" (30.5 cm) 12" (30.5 cm) 12" (30.5 cm) 72" (183 cm)
HS190SF 12" (30.5 cm) 12" (30.5 cm) 12" (30.5 cm) 72" (183 cm)
HS250SF 12" (30.5 cm) 12" (30.5 cm) 12" (30.5 cm) 72" (183 cm)
CLEARANCE TO COMBUSTIBLES
