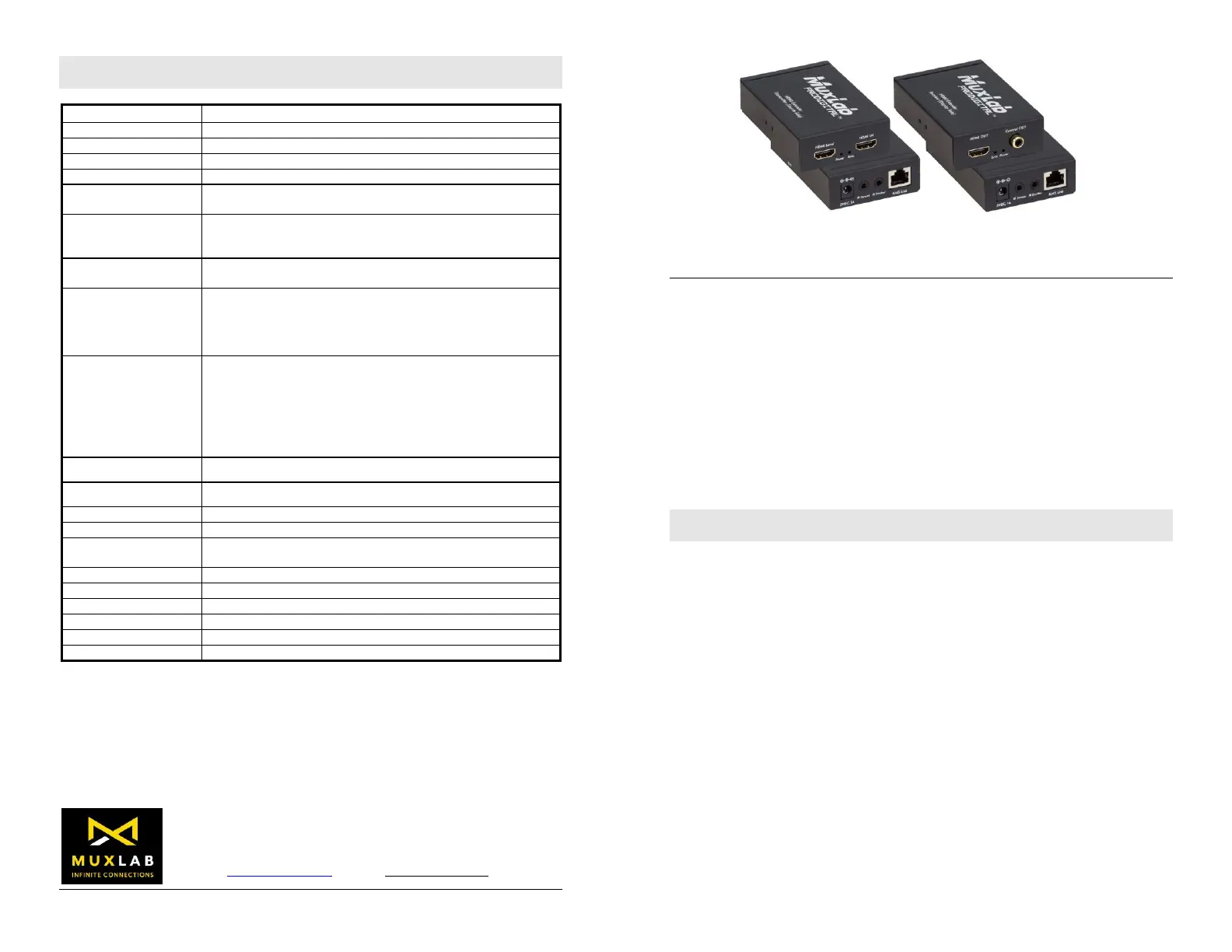

© MuxLab Inc. -000920-B -000920-B94 SE
2321 Cohen St, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: URL www.muxlab.com
info@muxlab.com :
Specications
Environment
HDMI 1.4 (3D)
Devices
DVD, TVs, projectors, monitors, PC, laptops supporting HDMI
Transmission
Transparent to the user.
Frequency
165MHz.
Signals
HDMI 1.4 protocol.
Resolution
480i to 1080p @ 50/60 FPS
VGA to UXGA
Connectors
2 HDMI Type A and 2 (two) 3.5mm jacks for the Transmitter
1 HDMI Type A and 2 (two) 3.5mm jacks for the Receiver
1 S/PDIF Female for the RX
LEDs
Power: Blue
Link: Blue
Maximum Distance
Based on a maximum
length of 6.6 ft (2 m) of
HDMI cable per end.
Cat 5e/6: 164ft (50m) up to 1080p60
Note: When installed in an electrically noisy environment, an
STP cable must be used. Also, cross-connection reduces the
effective distance depending on the grade of twisted cable used.
RJ45 Pin
Conguration
Reverse Polarity
Sensitive. Use
EIA/TIA 568A or 586B
straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Audio
Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
HDCP
HDCP Compliant
Power Supply
Two (2) 5V / 1A DC power supplies
Power Consumption
Transmitter: 3.2W Receiver: 2.2W
Temperature
Operating: 0° to 40°C Storage: -20° to 60°C
Humidity: Up to 90% non-condensing
Enclosure
Metal
Dimensions
65mm x 118mm x 26mm
Weight
410g (TX+RX)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
1 year
Order Information
100504 HDMI Extender Pair, 50M, HD
HDMI Extender Pair, 50m, -Quick Installation Guide HD
100504
Overview
The HDMI Extender Pair, 50m, HD (100504) allows an HDMI video signal to be
transported up to 164ft (50m) over Cat 5e/6 UTP cable. This extender pair supports
video resolutions up to 1920 X 1080p60 and VGA-UXGA. It is HDCP compliant and
supports an HDMI Loop-out on the Transmitter and Digital Audio extract on the
Receiver. The product includes one Transmitter and Receiver, two Power Supplies, two
Emitters, and two Sensors.
Applications
Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specications (see specications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI
compliant cable.
4b. Connect one (1) Cat 5e/6 cable to the RJ45 LINK connector on the Receiver.
5. Connect the 5V/1A DC power sup ies to both the Transmitter and Receiver pl
rst If power is present, the blue power LED of the Transmitter and the .
Receiver will be ON.
Note: Power-up the HDMI Extender only after all connections are made.
© MuxLab Inc. 2022
6. Power-up the HDMI equipment and verify the image quality.
7. This product support bi-directional IR control. If infrared remote control is needed
to control the Source equipment from the Display, connect the IR Sensor to the
3.5mm Stereo Jack of the receiver and the IR Emitter to the 3.5mm Mono Jack of
the Transmitter .
Note: The IR Sensor has a black color while the IR Emitter has a clear color.
8. Position the IR Sensor so that it is aimed toward the hand-held remote control. For
clear IR signal reception, aim the hand-held remote control toward the top of the IR
Sensor enclosure.
9. Position the IR Emitter as close as possible to the source’s IR Sensor (i.e. DVD,
Blu-ray, or media player). For a clear IR signal reception, the IR Emitter may be
affixed to the source’s IR Sensor. The IR Emitter’s signal is transmitted from the
side of the enclosure.
10. The following diagram shows the nal conguration (with 2-way IR shown).
DIP Switch Description
The following tables describe the DIP Switch position for the EDID
Position
Functions
0
1080P 2 CH audio
1
1080P lby/DTS 5.1 audio Do
2
1080p HD audio
3
1080i 2 CH audio
4
1080i Dolby/DTS 5.1 audio
5
1080i HD audio
6
3D 1080p 2 CH audio
7
3D 1080p Dolby/DTS 5.1 audio
8
3D 1080p HD audio
9
Copy EDID from the transmitter HDMI loop output
A
Copy EDID from the receiver HDMI output
B
1080p 2 CH audio
C
1080p 2 CH audio
D
1080p 2 CH audio
E
1080p 2 CH audio
F
1080p 2 CH audio
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in regard to the installation of the HDMI Extender Pair, 50M, : HD
Symptom
Tx LEDs
Rx LEDs
Probable
Cause
Power
Link
Power
Link
No Image
OFF
OFF
OFF
OFF
No power
No Image
ON
OFF
ON
OFF
UTP Cable
No Image
ON
ON
ON
ON
HDMI Cable
No Image
ON
ON
ON
ON
Synchronisation
Flickering
ON
ON
ON
ON
Synchronisation
Choppy sound
ON
ON
ON
ON
Synchronisation
Green or pink
hue
ON
ON
ON
ON
DDC
communication
Image ickers
when powering
up nearby
equipment
ON
ON
ON
ON
Interference
IR not
functioning
ON
ON
ON
ON
Remote control
not directed to the
IR Sensor or IR
Emitter not
directed to the
source.
IR not
functioning
ON
ON
ON
ON
Interference from
sunlight,
Fluorescent, Neon
or Halogen lights.
IR not
functioning
ON
ON
ON
ON
Interference from
RF radiation from
the TV.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
