KVM HDMI over IP PoE Extender - 500770
© MuxLab Inc. 2017 -000845-B / -000845-B 94 SE
Page 1
KVM HDMI over IP PoE Extender Kit
Operaon Manual
500770
KVM HDMI over IP PoE Extender - 500770
© MuxLab Inc. 2017 -000845-B / -000845-B 94 SE
Page 2
Table of Contents
1 Introducon ............................................................................................................................................... 3
Key Features: 3 .............................................................................................................................................
2 Direct Switching Method ........................................................................................................................... 5
3 On Screen Display (OSD) Switching Method .............................................................................................. 6
3.1 Login to the KVM Device ......................................................................................................................... 7
3.2 Logout from the KVM Device .................................................................................................................. 7
3.3 Bring up the KVM OSD Menu .................................................................................................................. 8
3.4 Selecng a Workstaon to control ......................................................................................................... 8
3.5 Returning 9 .................................................................................................................................................
3.6 Refresh .................................................................................................................................................... 9
4 KVM Transmier/Receiver Sengs ......................................................................................................... 10
4.1 Firmware Version Informaon .............................................................................................................. 10
4.2 Upgrading Firmware ............................................................................................................................. 10
4.3 Changing the OSD Login Password .......................................................................................................11
4.4 KVM Device Stascs ............................................................................................................................ 12
4.5 Network Sengs ................................................................................................................................... 13
4.6 Seng the KVM Transmier/Receiver Name ...................................................................................... 14
4.7 Selecng the OSD HotKey Sequence ....................................................................................................15
5 Specicaons ........................................................................................................................................... 17
6 Warranty Policy ........................................................................................................................................ 19
6.1 Warranty Period .................................................................................................................................... 19
KVM HDMI over IP PoE Extender - 500770
© MuxLab Inc. 2017 -000845-B / -000845-B 94 SE
Page 3
1 Introduction

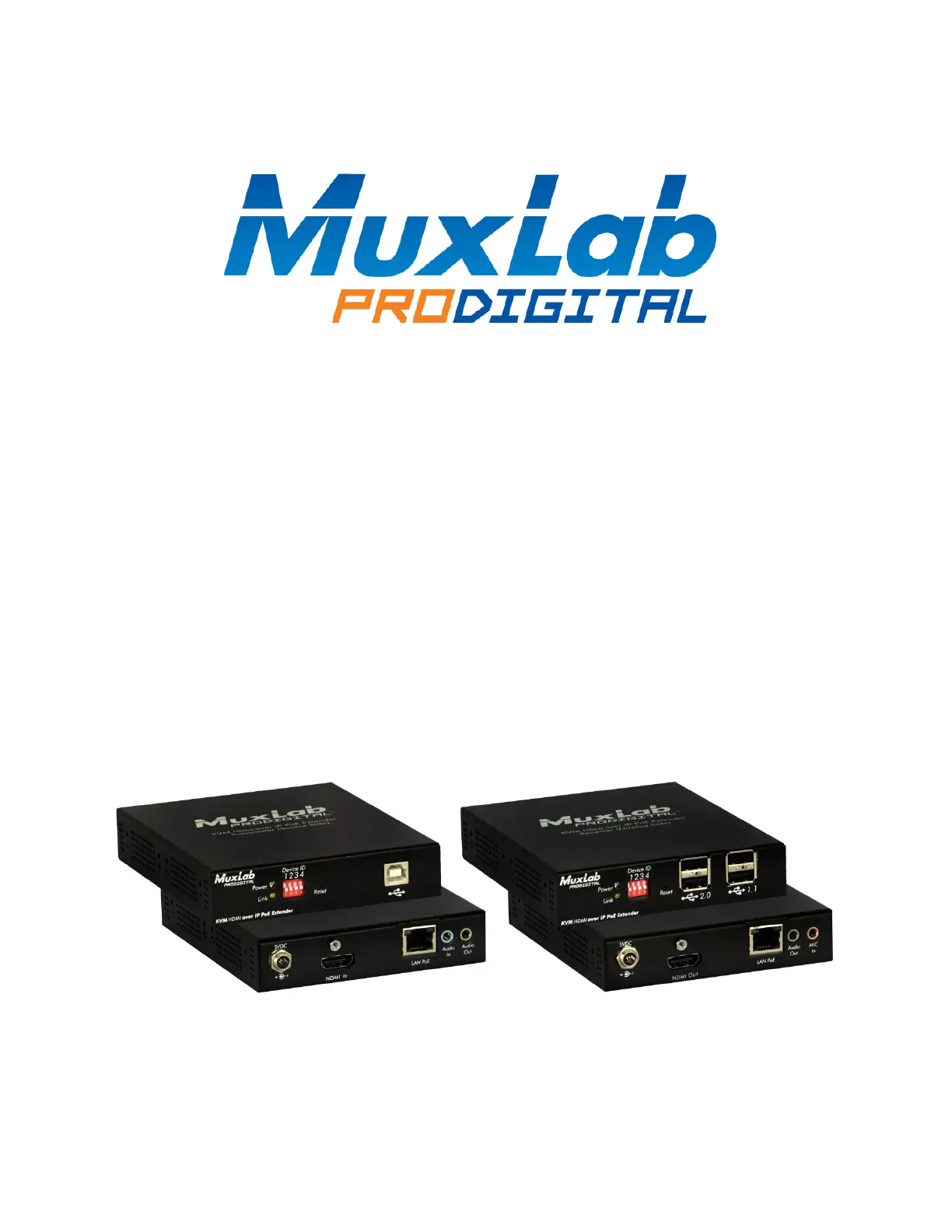

The KVM HDMI over IP PoE Extender Kit allows HDMI & USB equipment to be connected up to 330
(100m) over an Ethernet LAN, supporng 1920x1200 and 1080p resoluon @ 60Hz via Cat5e/6 cable in
mulple point- -point and point- -mulpoint conguraons. The Transmier (500770-TX) and to to
Receiver (500770-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.
The Transmier terminates to a computer server/workstaon via a HDMI & USB port, The Receiver
terminates to a HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad,
storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey
sequences to any Transmier on the network, allowing a single operator to manage numerous
servers/workstaons, in a distributed KVM applicaon.
There are two hotkey methods to switch from one workstaon to another. There is a Direct Switching
Method and an On Screen Display (OSD) Switching Method. This manual explains how to control the
switching from one workstaon to another, as detailed below.
Key Features:
One operator can manage mulple servers/workstaons
Supports HDMI up to 1920x1200 and 1080p @ 60Hz
Receiver side includes a 4-port USB hub, for KVM applicaons
Up to 330 (100m) over Cat5e/6

Produktspecifikationer

Varumärke: MuxLab
Kategori: Audio/video-omvandlare
Modell: 500770
