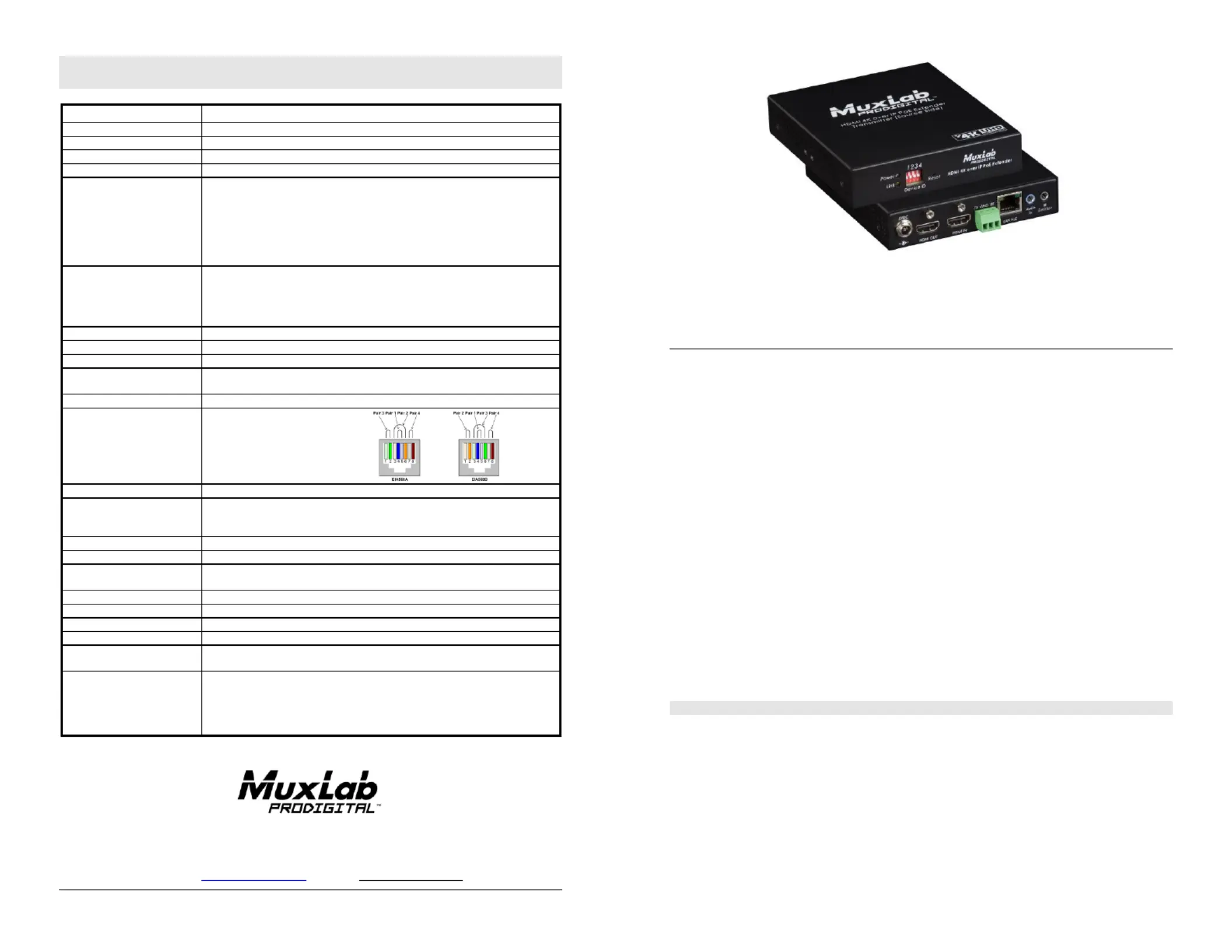

Sida 1/2
© MuxLab Inc. -000985-A -000985-A94 SE
2321Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: URL: www.muxlab.com
info@muxlab.com
Specications
Environment
HDMI 2.0b
Devices
Blu-Ray, projectors, monitors, TV, PC, laptops, servers supporting HDMI.
Transmission
Transparent to the user.
Bandwidth
300MHz
Signals
HDMI 1.4 protocol
Connectors
Note: Cables not included.
One (1) HDMI receptacle for input.
One (1) HDMI loop out.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR emitter.
One (1) 3.5mm jack for audio insert.
One (1) RS232 (3-pin oenix connector). ph
Four (4) DIP Switches for device ID addressing.
Maximum Distance
Based on a maximum length
of 6.6ft (2m) of HDMI cable
per end.
Cat5e/6: 330ft (100m) up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
Note: When installed in an electrically noisy environment, an STP cable must be
used. Also, cross-connection reduces the effective distance depending on the
grade of twisted cable used.
Latency
Typical one (1) Frame (16ms), maximum 2 frames (33ms).
Compression
JPG2000 Proprietary Compression.
Bandwidth
Up to Mbps. 850
Network Requirement
1Gb Ethernet Network
(Switch support for Jumbo Frame IGMP and PoE required, ).
IR Frequency
38 to 56 KHz (IR Emitter and IR Sensor sold separately).
RJ45 Pin Conguration
Reverse Polarity Sensitive.
Use EIA/TIA 568A or 586B
straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable
One (1) Cat 5e/6 or better twisted pair cables required.
Power Supply
This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500993) may be purchased separately.
PoE
IEEE 802.3af
Power Consumption
Transmitter: 2.85Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Dimensions
4.40” x 5.08” x 1.00” (112mm x 12 259 mm x mm)
Weight
1.5 s ( lb 0.68kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information
500759- -HLO HDMI over IP PoE TX with Loop Out, UHD-4K TX
(UPC: 627699927595)
Accessories
(These items are sold
separately)
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500990 IR Emitter
500991 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
H over IP PoE TX with Loop Out, UHD- DMI 4K
500759- - TX HLO
Quick Installation Guide
Overview
The HDMI over IP PoE TX with Loop Out, UHD-4K (model 500759-TX-HLO) allows HDMI
video equipment supporting up to 4K @ 30Hz or 1080p @ 60Hz resolution to be connected and
extended to create an independently distributed video network. 100’s of Single Displays and Video
Wall Displays of user congurable size (X by Y) may be supported, depending on network
bandwidth. In addition, the unit features a local HDMI video output which allows the video source
to be shown on a local display.
The unit can be connected via Cat5e/6 cable up to 330ft (100m) from an Ethernet Switch, and
supports PoE (PD) when powered by a PoE (PSE) Ethernet Switch. An IR Emitter or IR Sensor, if
required, may be purchased separately for IR based remote control applications of end devices.
The MuxLab Pro Digital Network Controller (500812) and MuxControl App are available to
simplify conguration and management of this and other MuxLab AV over IP networked devices
via (500812 web interface) Smartphone and Tablet (Apple or Android). PC ,
Applications
Applications include video wall, gital signage, commercial and residential AV systems, di
classroom projector systems, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter as indicated on the produc labels, see the above front t
and rear product views for further details.
2. Verify that the distance between the HDMI Transmitter is within MuxLab specications (see
Specications table for more details).
3. To install the Transmitter:
3a. Connect th Transmitter to the HDMI video source with an HDMI compliant cable. e
3b. If the application is point- -point, then connect one (1) length of Cat 5e/6 (or higher) to
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between Transmitter and Receiver
© MuxLab Inc. 2022
3c. If necessary, connect the Transmitter HDMI Out to a local displa with an HDMI y
compliant cable.
4. To install the Receiver (such as the 500759-RX):
4a. Connect the Receiver to the destination HDMI display with an HDMI compliant cable.
4b. If the application is point- -point, then connect one (1) Cat 5e/6 cable (or higher) to
coming from the Transmitter to the RJ45 LINK connector on the Receiver. If
transmitting over the network, use an Ethernet Switch between Transmitter and
Receiver.
5. If the conguration is a point- -multipoint or multipoint- -multipoint: to to
5a. You will need to use an Ethernet Switch with Gigabit ports and DHCP Server support.
In addition, Jumbo Frame support is required, and IGMP Protocol support is required for
the multipoint- -multipoint case. to Verify that the Ethernet Switch is congured
correctly and that the DHC Server IGMP Protocol, and Jumbo Frames are P ,
enabled. See the manufacturer operating manual for more information about
conguring the Ethernet Switch.
5b. Connect all Transmitters and Receivers to the Ethernet Switch.
5c. Use the DIP Switches to select a uniq Device ID for each Transmitter present on the ue
network and congure each Receiver Device ID to the corresponding selected
Transmitter.
Note: This step is not necessary if the MuxLab Pro Digital Network Controller
(500812) is used.
6. Powering the Transmitt or Receiver via an external power supply is only necessary where er
PoE (PSE) is unavailable. If PoE is unavailable, connect the 5 VDC power supply (sold
separately model 500993) to each ceiver and to an AC power outlet. Next connect each , Re
Transmitter in the same manne If power is present, the green power LED on each r.
Transmitter and Receiver will illuminate.
Note: Power the HDMI over IP PoE TX with Loop Out only after all connections ‘ON’
have been made.
7. Power the HDMI equipment and verify the image quality. ‘ON’
8. This product supports IR pass-thru control. If infrared remote control is needed to control the
Source equipment from the Display, connect the IR Sensor (sold separately, model 500991 to )
the 3.5mm Stereo Jack of the Receiver and the IR Emitter (sold separately, model 500990) to
the 3.5mm Mono Jack of the Transmitter.
Note: You can dierentiate the IR Sensor and the IR Emitter by looking at the 3.5 mm
plug. The IR Sensor is using a Stereo Plug (3 Contacts) and the IR Emitter a
mono plug (2 Contacts).
9. Position the IR Sensor so that it is directed the hand-held remote control. For a clear IR at
signal reception, aim the hand-held remote control the top of the IR Sensor enclosure. at
10. Position the IR Emitter IR Sensor (i.e. DVD player). For a as close as possible to the source’s
clear IR signal reception, the IR Emitter can be glued on the source’s IR Sensor. The IR
Emitter’s signal is transmitted from the side of the enclosure.
11. This product supports RS232 bidirectional communication. On the Transmitter, the RS232
port is congured as a DCE; and on the Receiver as a DTE. Please connect your RS232 cable
accordingly. Congure the RS232 communications setting via the device web interface.
12. Commands or messages may be sent via RS232 by connecting a PC to the RS232 port of the
HDMI over IP PoE Extender, or over the network via IP This communication is meant to be .
machine to machine.

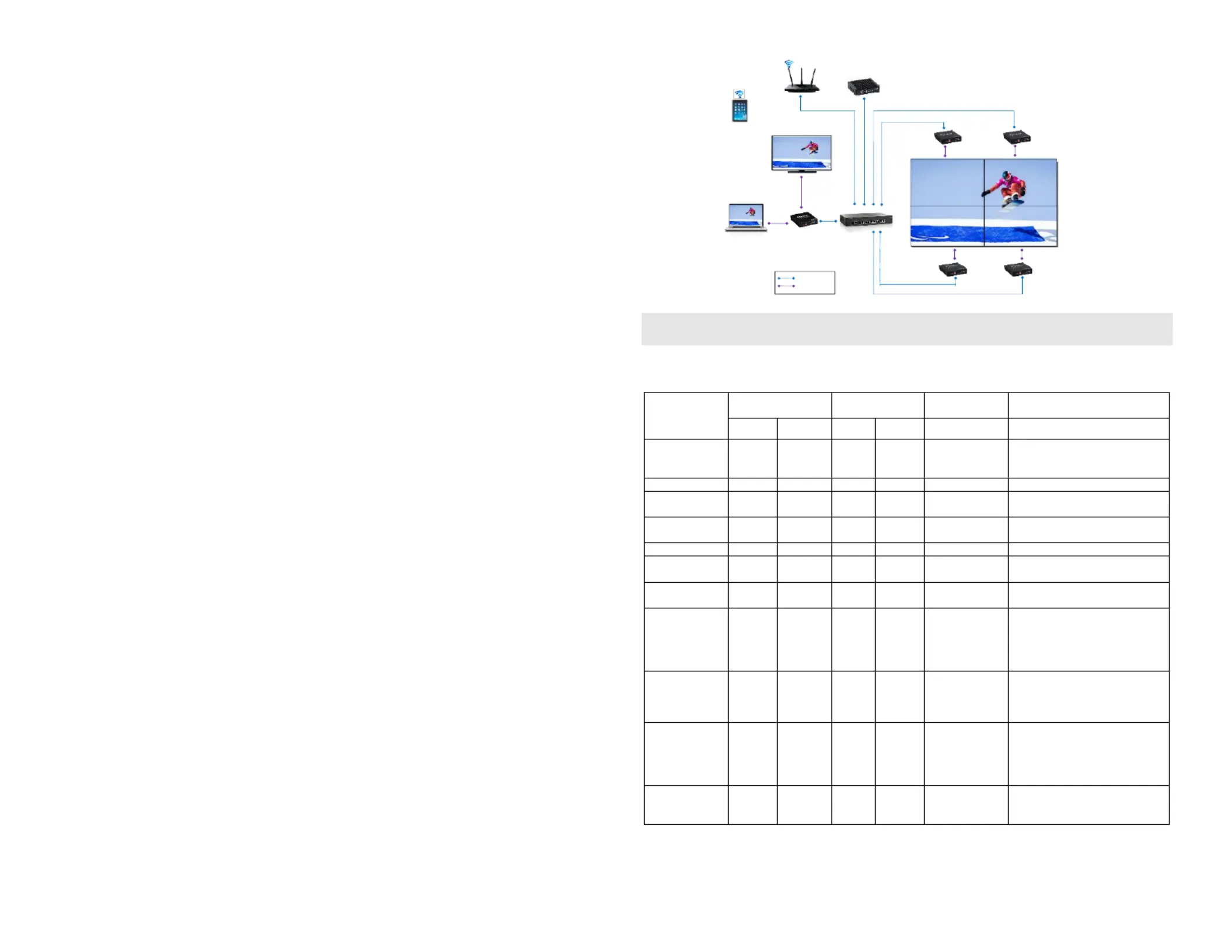

13. The following diagram illustrates a typical application.
Cat 5e/6 Cable
HDMI Cable
500759- -HLOTX Ethernet
Switch
500759-RX 500759-RX
500759-RX 500759-RX
500812
ROUTER
Tablet
Video Wall
HDMI Loop Out
Video Source
Local TV
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions in regard to
the installation of the HDMI over IP PoE TX with Loop Out, UHD- : 4K
Symptom
Transmitter LEDs
Receiver LEDs
Probable
Cause
Power
Link
Power
Link
No Image
OFF
OFF
OFF
OFF
No power
No Image
BLINK
OFF
BLINK
ON
Booting
No Image
ON
OFF
ON
OFF
No Ethernet Link
Info Screen
ON
O FF
ON
BLINK
UTP Cable
Info Screen
ON
ON
ON
OFF
UTP Cable
Info Screen
ON
BLINK
ON
BLINK
No Data
Connection
Info Screen
ON
ON
ON
BLI NK
Wrong setting on
Decoder
Choppy Video
ON
ON
ON
ON
Conguration
Image ickers
when powering
up nearby
equipment
ON
ON
ON
ON
Interference
IR not
functioning *
ON
ON
ON
ON
Interference from
sunlight,
Fluorescent,
Neon or Halogen
lights.
IR not
functioning *
ON
ON
ON
ON
Interference from
RF radiation
from the TV
* IR Emitter and IR Sensor sold separately.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877-689-
5228 (toll-free in North America) or (+1) 514-905-0588 (International).
