MuxLab 500754-RX Bruksanvisning

MuxLab Audio/video-omvandlare 500754-RX

Läs nedan 📖 manual på svenska för MuxLab 500754-RX (2 sidor) i kategorin Audio/video-omvandlare. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF
Sida 1/2

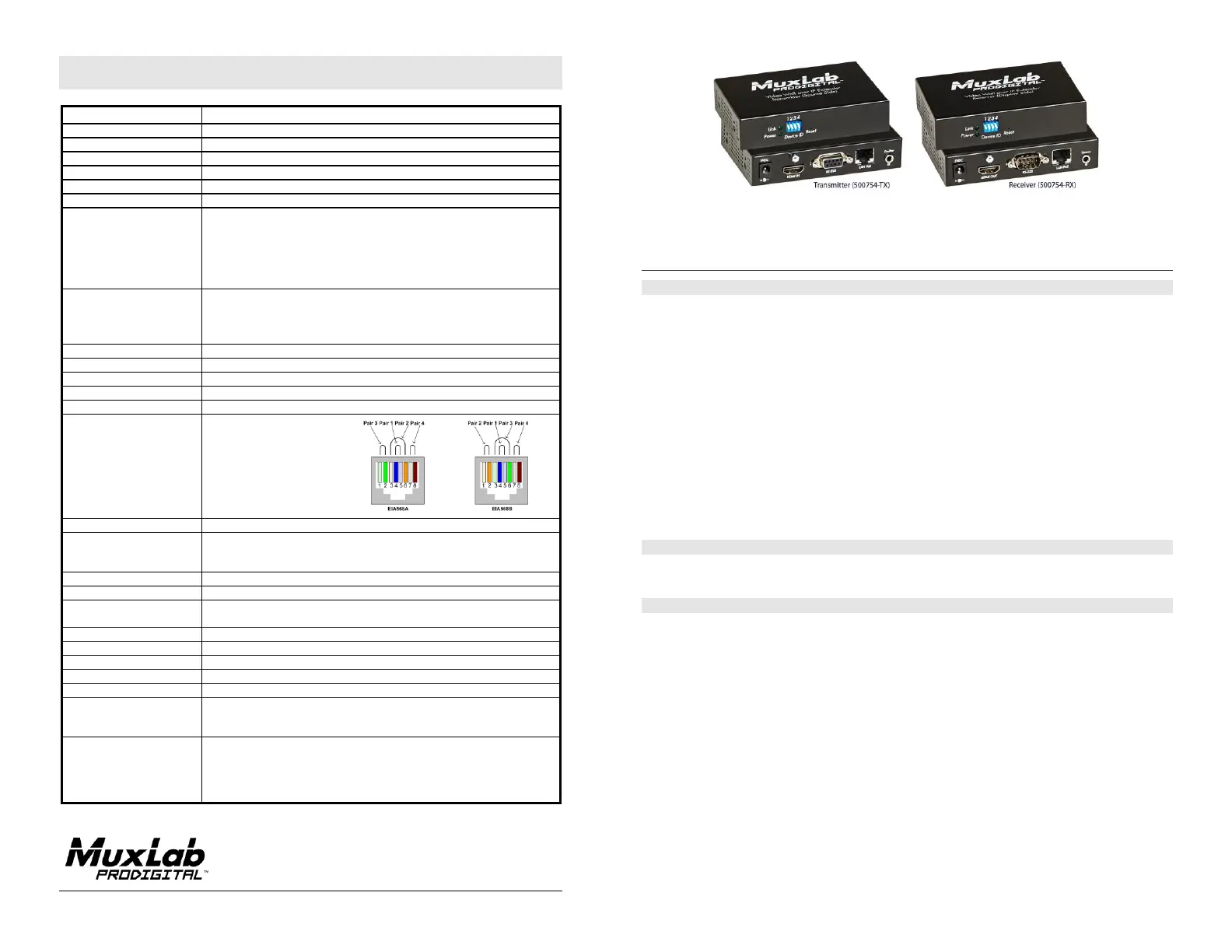

© MuxLab Inc. - -D - -D 94 000803 SE 000803
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905- 0589
Toll Free (North America): (877) 689- 5228
E-mail: videoease@muxlab.com URL: www.muxlab.com
Specications
Environment
HDMI 1.3a
Devices
DVDs, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Video Wall
NxM video wall capabilities.
Compatibility
Compatible with , 500752 500753 and 500811
Transmission
Transparent to the user.
Video Bandwidth
225MHz
Signals
HDMI 1.3a protocol.
Connectors
One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
One (1) 3.5mm jack for IR emitter/sensor.
One (1) DB9 Serial Port Connector.
Four (4) DIP switches for device ID addressing.
Note: HDMI, RS232, IR and Cat 5e/6 cables not included.
Maximum Distance
Based on a maximum length
of 6.6ft (2m) of HDMI cable
per end.
Cat5e/6: 330ft (100m) up to 1080P
Note: When installed in an electrically noisy environment, an STP cable must be
used. Also, cross-connections in the signal path reduce the eective distance
depending on the grade of twisted pair cable used.
Latency
One (1) Frame.
Compression
Motion JPEG
Network Bandwidth
60Mbps
Network Requirement
100BaseT for Point- -Point; 0BaseT for multi-point conguration to 100 s.
IR Frequency
38 to 56 KHz
RJ45 Pin Conguration
Reverse Polarity Sensitive.
Use EIA/TIA 568A or 586B
straight-through wiring.
RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 ( T)
Pin 7 (R) Pin 8 (T)
Cable
One (1) Cat 5e/6 or better twisted pair cable required.
Power Source
This device supports PoE (PD), an external power supply is not included. It is
intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional
power supply (500992) may be purchased separately.
PoE
IEEE 802.3af
Power Consumption
Transmitter: 2.9Watt Receiver: 1.8Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Metal
Dimensions
4.40” x 3.00” x 1.00” (11.2 x 7.6 x 2.5cm)
Weight
1.1lbs (0.5kg)
Compliance
Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty
3 years
Order Information
500754 Video Wall Over IP Extender Kit with PoE
500754-TX Video Wall Over IP Transmitter with PoE
500754-RX Video Wall Over IP Receiver with PoE
Accessories
(These items are sold
separately)
500905 3-Port Rackmount Transceiver Chassis
500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
500990 IR Emitter, and 500991 IR Sensor
500992 Univ. Power Supply 5VDC/1.2A US/UK/EU Blade
500754 Video Wall over IP Extender Kit with PoE
Quick Installation Guide
Overview
The Video Wall over IP Extender Kit with PoE (500754) allows HDMI equipment to be connected up to
330ft (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point- -point to
conguration. Point- -multipoint, multipoint- -multipoint, and Video Wall congurations are also to to
possible by connecting several Transmitters and Receivers to the same Ethernet local IP network via an
Ethernet Switch. The Transmitter ( -TX) and Receiver (500754 500754-RX) also support PoE (PD) if
used with a PoE Ethernet Switch. The kit comes with one (1) Transmitter and one (1) Receiver. The IR
Emitter and IR Sensor, if required, may be purchased separately for remote control applications.
Additional Transmitters and Receivers may be purchased as kits or purchased separately depending on
the intended application and number of units required.
For the point- -multipoin and multipoint- -multipoint conguration the Ethernet Switch must have to t to
Gigabit ports and DHCP Server capability and additionally support the IGMP communication protocol
for the multipoint- -multipoint case. MuxLab recommends using the Cisco SG300 Series Managed to
Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the conguration and
utilization of the and other MuxLab IP based products via an Ethernet web interface 500754 .
Applications
Applications include commercial and residential AV systems, classroom projector systems, digital
signage, boardroom systems, collaborative PC systems, and medical information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product labels,
see the above front and rear product views for further details.
2. Verify that the distance between the HDMI Transmitter and Receiver is within MuxLab
specications (see Specications table for further details ).
3. To install the Transmitter:
3a. Connect the ansmitter to the HDMI video source with an HDMI compliant cable. Tr
3b. If the application is point- -point, then connect one (1) length of Cat 5e/6 (or higher) to
grade UTP cable to the RJ45 LINK connector on the Transmitter. If transmitting over
the network, use an Ethernet Switch between the TX & RX unit.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant cable.
4b. If the application is point- -point, then connect one (1) Cat 5e/6 cable (or higher) to
coming from the Transmitter, to the RJ45 LINK connector on the Receiver. If
transmitting over the network, use an Ethernet Switch between the TX & RX unit.
© MuxLab Inc. 2017
5. If the conguration is a point- -multipoint or multipoint- -multipoint: to to
5a. You will need to use Ethernet Switch with Gigabit ports and DHCP Server support. In an
addition IGMP Protocol support is required for the multipoint- -multipoint case.to Verify that
the Ethernet Switch is configured correctly and that the DHCP Server is enabled and
that the IGMP Protocol enabled for multipoint- -multipoint applicationsis to . See the
operating manual for more information about conguring the Ethernet Switch.
5b. Connect all Transmitters and Receivers to the Ethernet Switch.
5c. Use the DIP Switches to select a unique Device ID for each Transmitter present on the
network and congure each Receiver Device ID to the corresponding selected Transmitter.
Note: This step is not necessary if the MuxLab ProDigital Network Controller (500811) is used.
6. Powering the Transmitter or Receiver via an external power supply is only necessary where PoE
(PSE) is unavailable. If PoE is unavailable, connect the 5 VDC power supply (sold separately) to
each Receiver and to an AC power outlet. Next connect each Transmitter in the same manner. If
power is present, the green power LED on each Transmitter and Receiver will illuminate.
Note: Power the Video Wall over IP Extender only after all data connections are made.‘ON’
7. Power the HDMI equipment and verify the image quality. ‘ON’
8. This product supports IR pass-thru control. If infrared remote control is needed to control the
Source equipment from the Display, connect the IR Sensor (sold separately) to the 3.5mm Stereo
Jack of the Receiver and the IR Emitter (sold separately) to the 3.5mm Mono Jack of the
Transmitter.
Note: You can differentiate the IR Sensor and the IR Emitter by looking at the 3.5 mm plug.
The IR Sensor is using a Stereo Plug (3 Contacts) and the IR Emitter a mono plug (2
Contacts).
9. Position the IR Sensor so that it is directed the hand-held remote control. For a clear IR signal at
reception, aim the hand-held remote control the top of the IR Sensor enclosure. at
10. Position the IR Emitter as close as possible to the source’s IR Sensor (i.e. DVD player). For a clear
IR signal reception, the IR Emitter can be glued on the source’s IR Sensor. The IR Emitter’s signal
is transmitted from the side of the enclosure.
11. This product supports RS232 bidirectional communication. On the Transmitter, the RS232 port is
congured as a DCE; and on the Receiver as a DTE. Please connect your RS232 cable accordingly
as previously indicated. The default settings are 9600, N, 8, 1.
12. To send an RS232 packet to a specic device, you need to put the IP address in front of the packet.
This communication is meant to be machine to machine; and hexadecimal codes must be used. For
example, to send the message “Hello” to a device having an IP address of 192.168.168.55, send the
following hexadecimal string: 0xC0 0xA8 0xA8 0x37 0x48 0x65 0x6c 0x6c 0x6f. (or “192 168 168
55 H e l l o” in hexadecimal).
13. To setup a video wall, please use the ProDigital Network Controller and follow the steps in 500811
the controller manual.
14. The following diagram illustrates a typical 2x2 Video Wall conguration.
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions in regard to
the installation of the Video Wall over IP Extender Kit with PoE:
Symptom
Transmitter
LEDs
Receiver LEDs
Possible
Solutions
Power
Link
Power
Link
No image
OFF
OFF
OFF
OFF
• Check power connections.
• Check PoE Ethernet
Switch setup.
No image
ON
OFF
ON
ON
• Reboot the Transmitter.
No image
ON
ON
ON
OFF
• Reboot the Receiver.
No image
ON
ON
ON
ON
• Check th Transmitter e
UTP cable.
No image
ON
BLINK
ON
ON
• Check the Receiver UTP
cable.
No image
ON
BLINK
ON
BLINK
• Check the HDMI cable
quality.
Choppy image
ON
BLINK
ON
BLINK
• For multipoint- -to
multipoint enable the
IGMP mode on the
Gigabit Ethernet Switch.
Choppy sound
ON
BLINK
ON
BLINK
• Check cable length.
• Check the HDMI cable
quality.
Image ickers
when powering
up nearby
equipment.
ON
BLINK
ON
BLINK
• Use STP cables.
IR not
functioning *
ON
BLINK
ON
BLINK
• Make sure the IR Sensor
is directed towards the
remote and the IR Emitter
to the equipment.
IR not
functioning *
ON
BLINK
ON
BLINK
• Place the IR equipment
away from the interfering
light source.
IR not
functioning *
ON
BLINK
ON
BLINK
• Place the IR equipment
away from the interfering
RF radiation source.
* IR Emitter and IR Sensor sold separately.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at 877- -689
5228 (toll-free in North America) or (+1) 514- -0588 (International). 905
