Sida 1/35

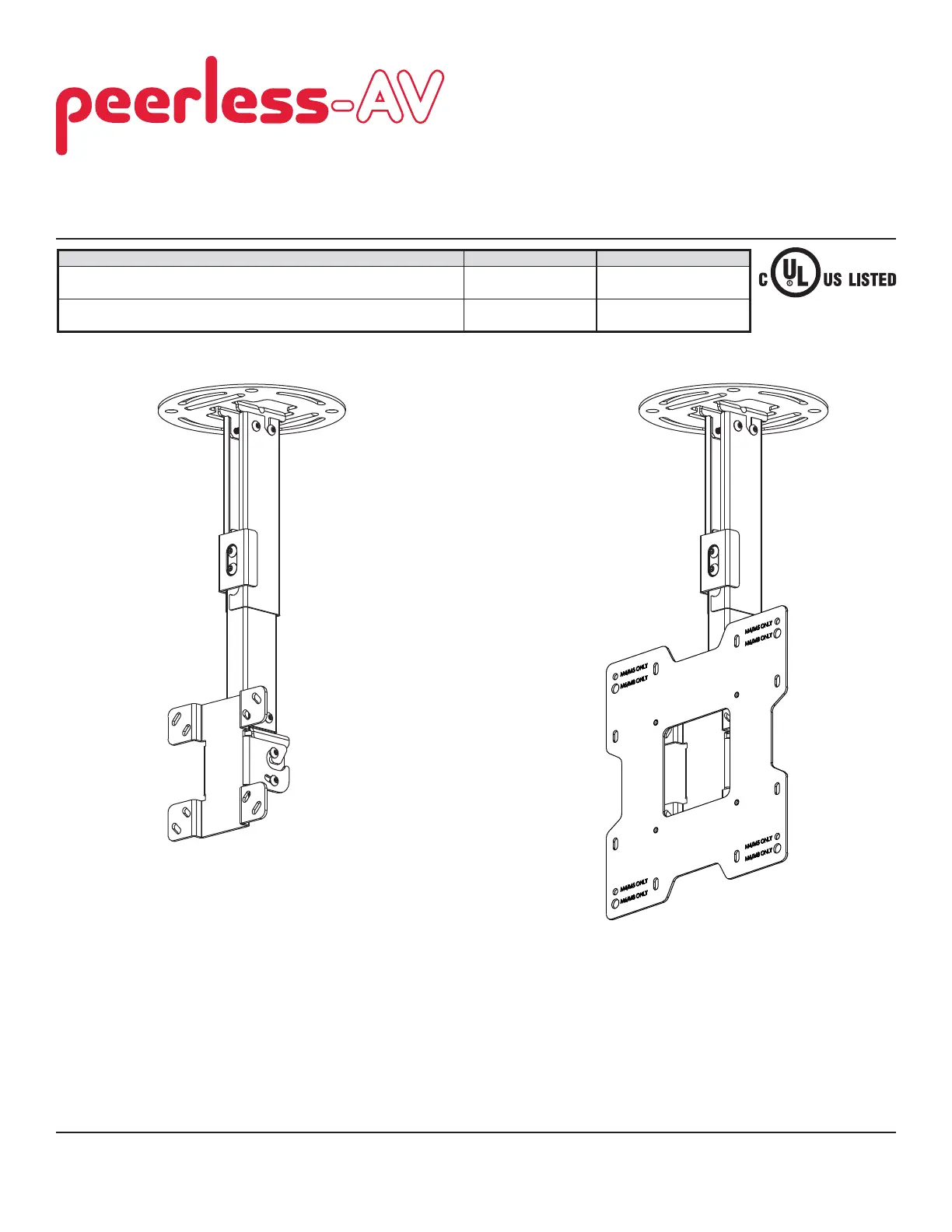

Installation and Assembly:
Ceiling Mount for 15" - 40" Flat Panel Displays
Features:
• VESA® 75 / 100 / 200x100 / 200x200 compatible
• Three adjustable extension lengths:
PC930A/PC932A models - 9.8" - 13.9"
PC930B/ PC932B models - 13.78" - 21.89"
PC930C/ PC932C models - 20.24" - 34.02"
• Adjustable tilt of +20/-5°
• 360° of mountable adjustment
• Internal cable management
• Safety catch designed into extension channels to ensure user and equipment safety
ISSUED: 11-29-07 SHEET #: 202-9263-2 08-17-11
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
Models Screen Size Range Max UL Load Capacity
PC930A, PC930A-S, PC930A-W, PC930B, PC930B-S, PC930B-W,
PC930C, PC930C-S, PC930C-W 15" to 24" 50 lb (22.7 kg)
PC932A, PC932A-S, PC932A-W, PC932B, PC932B-S, PC932B-W,
PC932C, PC932C-S, PC932C-W 15" to 40" 80 lb (36.3 kg)
PC930 Series PC932 Series
2 of 35 ISSUED: 11-29-07 SHEET #: 202-9263-2 08-17-11
Note: Read entire instruction sheet before you start installation and assembly.
Table of Contents
Parts List............................................................................................................................................................................ 3, 4
Install Outer Channel to Ceiling Plate.....................................................................................................................................4
Installation to Wood Joist ........................................................................................................................................................5
Installation to Concrete Ceilings .............................................................................................................................................6
Installing Inner Channel and Routing Cables .........................................................................................................................7
Attaching Mounting Plate to Display with VESA 75 or 100 Mounting Pattern ........................................................................8
Attaching Adapter Plate to Display with VESA 200 x 100 or 200 x 200 Mounting Pattern .....................................................9
Installing Flat Panel Display ............................................................................................................................................... 10
Adjusting Mount Extension .................................................................................................................................................. 10
Adjusting Display ..................................................................................................................................................................11
Install Cable Covers .............................................................................................................................................................11
Tools Needed for Assembly
• stud fi nder ("edge to edge" stud fi nder is recommended)
• drill
• level
• 5/16" bit for concrete
• 5/32" bit for wood joist
• phillips screwdriver
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum UL Load Capacity. See page one.
• If mounting to wood ceiling studs, make sure that mounting screws are anchored into the center of the studs. Use
of an "edge to edge" stud fi nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed to be installed on the following ceiling construction only;
CEILING CONSTRUCTION HARDWARE REQUIRED
• Wood Stud, Joist Included
• Wood Beam Included
• Solid Concrete Included
• Cinder Block Contact Qualifi ed Professional
•Metal Stud Do not attach except with Peerless accessory kit for metal studs;
Contact Customer Service for Peerless accessory kit for metal studs.
(not evaluated by UL)
•Brick Contact Qualifi ed Professional (not evaluated by UL)
•Other or unsure? Contact Qualifi ed Professional
WARNING
3 of 35 ISSUED: 11-29-07 SHEET #: 202-9263-2 08-17-11
OUTER CHANNEL, INNER CHANNEL AND CABLE COVER
PART NUMBER CHART
Before you begin, make sure all parts shown are included with your product.
Parts may appear slightly different than illustrated.
PC930A
,
PC930B,
PC930
C
PC930A-S
,
PC930B-S,
PC930C-
S
PC930A-W
,
PC930B-W,
PC930C-
W
PC932A
,
PC932B,
PC932
C
PC932A-S
,
PC932B-S,
PC932C-
S
PC932A-W
,
PC932B-W,
PC932C-
W
Description Qty. Part # Part # Part # Part # Part # Part #
Aceiling plate 1 055-1773 055-4773 055-2773 055-1773 055-4773 055-2773
Bouter channel 1 See Chart See Chart See Chart See Chart See Chart See Chart
Cinner channel 1 See Chart See Chart See Chart See Chart See Chart See Chart
Dclamp plate 1 055-1771 055-4771 055-2771 055-1771 055-4771 055-2771
Eswivel/pivot bracket 1 055-1811 055-4811 055-2811 055-1811 055-4811 055-2811
Ftilt bracket 1 095-1484 095-4484 095-2484 095-1484 095-4484 095-2484
Gcable cover 2 See Chart See Chart See Chart See Chart See Chart See Chart
H#14 x 2.5 wood screw 2 5S1-015-C03 5S1-015-C04 5S1-015-C04 5S1-015-C03 5S1-015-C04 5S1-015-C04
Iconcrete anchor 2 590-0320 590-0320 590-0320 590-0320 590-0320 590-0320
JM5 x 10 mm socket pin screw 8 520-1063 520-2063 520-2063 520-1063 520-2063 520-2063
KM6 x 10 mm socket pin screw 4 520-1066 520-2066 520-2066 520-1066 520-2066 520-2066
LM6 x 12 mm socket pin screw 2 520-1050 520-2050 520-2050 520-1050 520-2050 520-2050
MM4 x 10 mm socket pin screw 4 520-1060 520-2060 520-2060 520-1060 520-2060 520-2060
NM4 x 12 mm socket pin serrated
washer head screw
4 510-1079 510-2079 510-2079 510-1079 510-2079 510-2079
OM4 x 20 mm socket pin screw 4 520-1061 520-2163 520-2163 520-1061 520-2163 520-2163
Pretaining spacer 4 590-5005 590-5005 590-5005 590-5005 590-5005 590-5005
Q4 mm security allen wrench 1 560-9646 560-9646 560-9646 560-9646 560-9646 560-9646
Radapter plate 1 N/A N/A N/A 095-1721 095-4721 095-2721
SM5 x 6 mm socket pin screw 4 N/A N/A N/A 520-1114 520-2062 520-2062
T#10 flat washer 4 N/A N/A N/A 540-9400 540-9442 540-9442
UM6 x 12 mm socket pin screw 4 N/A N/A N/A 520-1050 520-2050 520-2050
VM6 x 20 mm socket pin screw 4 N/A N/A N/A 520-9554 520-2554 520-2554
WM8 x 10 mm socket pin screw 4 N/A N/A N/A 520-1706 520-2706 520-2706
Parts List
outer channel (B) inner channel (C) cable cover (G)
Model# part # part # part #
PC930A, PC932A 9.8" - 13.9" 055-1779 055-1778 055-1809-2
PC930A-S, PC932A-S 9.8" - 13.9" 055-4779 055-4778 055-4809-2
PC930A-W, PC932A-W 9.8" - 13.9" 055-2779 055-2778 055-2809-2
PC930B, PC932B 13.78" - 21.89" 055-1776 055-1775 055-1809-1
PC930B-S, PC932B-S 13.78" - 21.89" 055-4776 055-4775 055-4809-1
PC930B-W, PC932B-W 13.78" - 21.89" 055-2776 055-2775 055-2809-1
PC930C, PC932C 20.24" - 34.02" 055-1770 055-1769 055-1809
PC930C-S, PC932C-S 20.24" - 34.02" 055-4770 055-4769 055-4809
PC930C-W, PC932C-W 20.24" - 34.02" 055-2770 055-2769 055-2809
extendable
length
