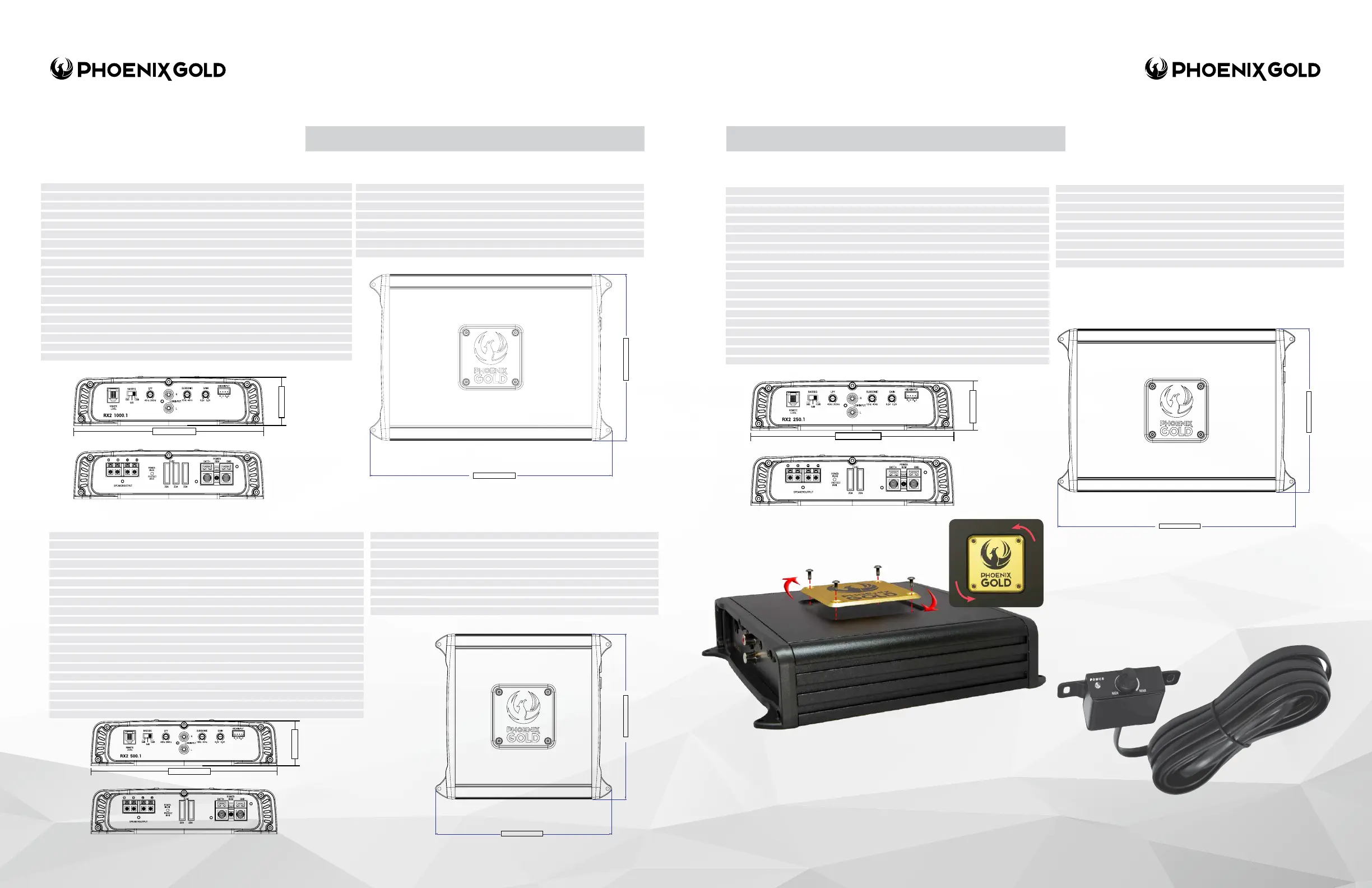

Amplifier Owner’s Manual

Models: RX2 1000.1 ● RX2 500.1 ● RX2 250.1

Amplifier

Manual

The RX2-series ampliers are the next evolution of the

reliable and great sounding RX series. With a new, more

efcient circuit design, we have increased power output

while decreasing chassis size. These ampliers will be the

reference for style and value in any installation. Built with

the legendary Phoenix Gold reliability, they feature heavy

duty heatsinks, robust unregulated power supplies, and

oversized direct input power and speaker terminals. They

also sound sweet thanks to the audiophile grade output

transistors. We made upgrading your stock system easy by

allowing high level inputs so you can keep the OEM radio,

and still upgrade the sound. RX2-series ampliers are ready

to impress with their effortless ability to provide power and

clarity while keeping the chassis at a convenient size for

any installation. The devil is in the details, so it just made

sense that we allow the PG name plate to be removed and

turned to match the orientation you might need for your

install because we know your going to want show off your

system and make all you’re friends jealous.

• Class-D Topology RX2 1000.1 / RX2 500.1

• Class-A/B Topology RX2 250.1

• Small Footprint Chassis Design

• Robust Unregulated Power Supplies

• Rotatable Name Badge for Installation Flexibility

• High Level Inputs for Easy OEM Integration

• Remote Bass Controller Included

• Audio Precision® Quality Control Verication

Features

Amplifier Owner’s Manual

SPECIFICATIONS

IMPORTANT: A power birth certicate is included for each amplier. RX2 ampliers are conservatively rated and will exceed their RMS power rating shown

here. All RMS power ratings and measurements are at 14.4 volts with no more than 1% THD.

SPECIFICATIONS

RX2 1000.1 SPECIFICATIONS

RMS Power Ratings listed at less than 1% THD @ 14.4v

Number of Channels: 1

1Ω: 1000W

2Ω: 700W p2-x1

4Ω: 400W x 1

Bridgeable: N/A

Crossover Mode: LP

CH 1: 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley

Subsonic : 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley

Input Channels: 2CH L/R

Input Mode: Unbalanced / Balanced

Input SensItivity: .2v - 5v Unbalanced Low-Level RCA

.2v - 5v Unbalanced Low-Level RCA

Processing: Bass Boost 0dB / +6dB / +12dB @45hz

Signal to Noise (@ CEA Standard): >70dB

Frequency Response: 15Hz- 250Hz

Topology Class: D

Heatsink Type: Extruded Aluminum

Bass EQ: 0dB, +6dB +12dB

Subsonic Crossover Range: 10Hz to 55Hz @12dB

Cooling Type: Radiation

Operating Voltage: 8V to 16V

Power Supply Type: Unregulated with OTM

Onboard Thermal Management

Power Terminal: 4 Gauge

Speaker Terminal: 10 Gauge

Recommended Fusing: 3 x 35A ATC

Dimensions (L x W x H): 11.81” x 8.11” x 1.98”

RX2 500.1 SPECIFICATIONS

RMS Power Ratings listed at less than 1% THD @ 14.4v

Number of Channels: 1

2Ω: 500W x 1

4Ω: 350 p2-x1

Total RMS Power (Sum of rated power): 500W

Bridgeable: N/A

Crossover Mode: LP

CH 1 40Hz - 200Hz @ 12dB / Oct Linkwitz Riley

Subsonic: 10Hz - 40Hz @ 12dB / Oct Linkwitz Riley

Input Channels: 2CH L/R

Input Mode: Unbalanced / Balanced

Input Sensativity: .2v - 5v Unbalanced Low-Level RCA

.2v - 5v Unbalanced Low-Level RCA

Processing: Bass Boost 0dB / +6dB / +12dB @45hz

Input Selection: 200mV-6v

Signal to Noise (@ CEA Standard): >80dB

Frequency Response: CH1 15Hz - 250Hz

Topology Class: D

Heatsink Type: Extruded Aluminum

Bass EQ: 0dB, +6dB +12dB

Subsonic Crossover Range: 10Hz to 55Hz @12dB

Cooling Type: Radiation

Operating Voltage: 8V to 16V

Power Supply Type: Unregulated with OTM

Onboard Thermal Management

Power Terminal: 4 Gauge

Speaker Terminal: 10 Gauge

Recommended Inline Fusing: 40A

Onboard Fusing: 2 x 25A ATC

Dimensions (L x W x H): 8.66” x 8.11” x 1.98”

8.66in /220.00 mm

8.11in /206.00 mm

1.98in/50. 5 mm

11.81i n /300.00 mm

8.11in / 206.00 mm

8.11in / 206.0 0 mm

1.98in/50. 5 mm

Amplifier Owner’s Manual

REMOTE LEVEL CONTROL

This port is for connecting the remote subwoofer level

control. This allows up to 20dB of volume adjustment.

This is not a bass boost, it controls the level of the low

pass signal.

BASS EQ

Selectable EQ with boost adjustment to 0dB, 6dB or

12dB.

LPF LOW PASS FILTER

Controls the lowpass crossover point. Continuously

variable from 40Hz to 200Hz.

LOW INPUT

Connect preamp signal cables from the head unit or

signal processor to these terminals.

SPEAKER OUTPUTS

Used to connect the amplier to speakers. RX2 250.1’s

and RX2 500.1’s minimum impedance is 2 ohms.

RX2 1000.1’s minimum impedance is 1 ohm.

POWER/PROTECT LED

Amplier status indicator. Blue indicates all systems

working and amplier is on. Red indicates protection

mode, from Thermal, Short Circuit or Blown Fuse. (See

Troubleshooting)

FUSE

On-Board fuse protection via ATC fuses. If blown, only

replace with same value fuses or risk damage to unit

and voiding the warranty.

SUBSONIC

Controls the subsonic highpass lter crossover point.

Continuously variable from 10Hz to 40Hz to remove low

frequencies to increase system efciency, output and speaker

protection.

GAIN

Used to reach maximum amplier power with a wide variety of

input signal sources and levels.

HIGH INPUT

Used when utilizing a source unit that has high level output

and no RCA level signal connections such as an OEM factory

source unit or aftermarket head unit.

BATT+

This must be connected to the fused positive terminal (+12V)

of the car’s battery. A fuse must be located within 18 inches of

the battery to protect the vehicle and should be fused at, or

below, the ampliers onboard fuse rating.

REMOTE

This must be connected to switched +12V, usually a trigger

wire coming from the head unit or an ignition lead if one is not

available.

GROUND

This must be connected to the negative terminal of the car’s

battery or bolted to a clean, unpainted part of the chassis of

the vehicle, use of an Stinger Expert Ground Terminal (SPTE) is

recommended.

RX2 1000.1 - RX2 500.1 - RX2 250.1

MONOBLOCK POWER AMPLIFIERS
