Sida 1/12
© 2021 Phoenix Gold • www.phoenixgold-eu.com

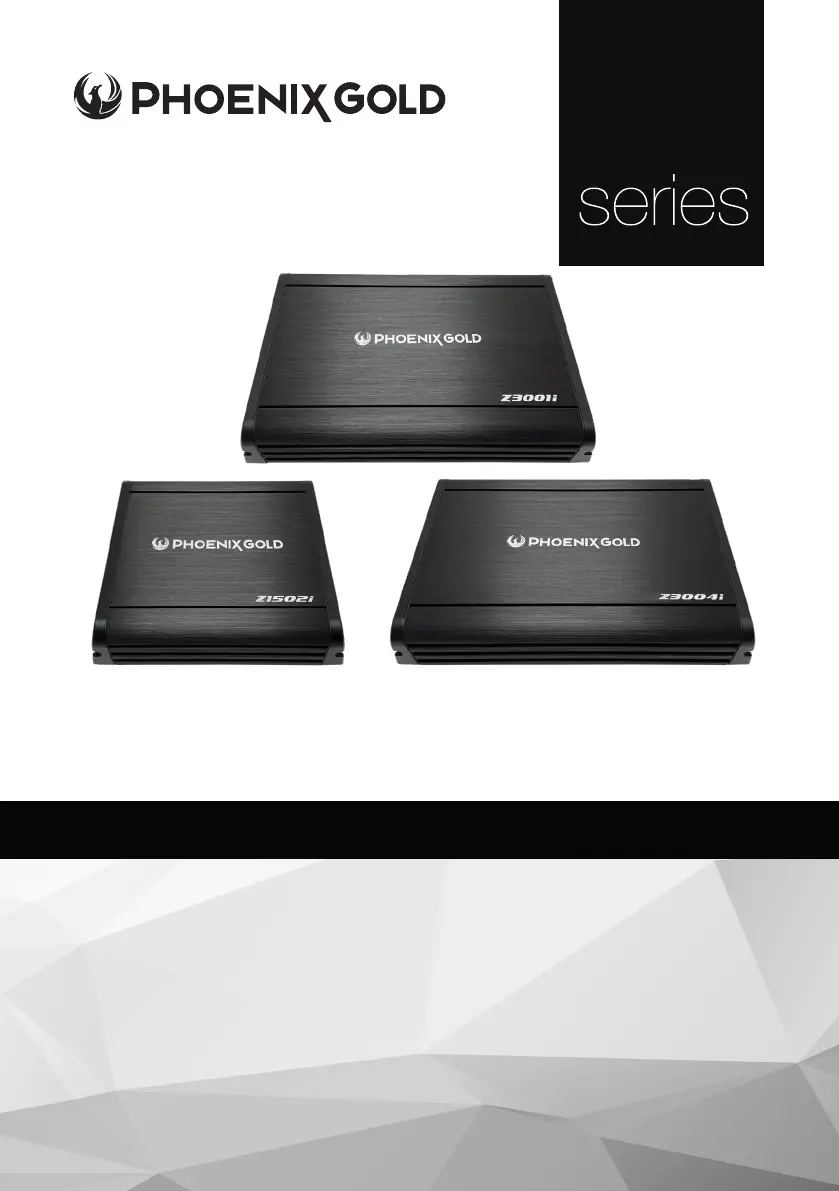

COMPACT, CLASS A/B Z-SERIES AMPLIFIERS
NEW AND IMPROVED
Model: Z1502i / Z3001i / Z3004i
• - compatible with aftermarket & original source unitsOEM Connection Ready
• - control the bass level with included ZRBC Remote Bass Ready (Z3001i only)
• - powers on the amp when audio signal is suppliedHigh Level Auto-Turn On
• Integrated Cooling Fan - regulates temperature for sustained performance
• - versatile connectivity to suit any vehicleHigh & Low Level Inputs
• - enables maximum current supplyHeavy Duty Connector Block
• - protection against thermal damage, 4-Way Protected Circuit
reversed power, speaker polarity and low voltage
SPECIFICATIONS
All specications subject to change without notice.
Z
© 2021 Phoenix Gold | A Brand of AAMP Global
www.phoenixgold-eu.com
Z1502i / Z3001i / Z3004i - Z-Series Ampliers
Z1502i Z3001i Z3004i
Class Class A/B Class A/B Class A/B
Power (MAX) 400 Watts 600 Watts 600 Watts
Frequency
Response 20Hz - 20KHz 20Hz - 250Hz 20Hz - 20KHz
Dims (LxWxH(mm)) 184 x 160 x 48 254 x 160 x 48 254 x 160 x 48
RMS Power
Ratings
70W x 2 @ 4ohm
100W x 2 @ 2ohm
200W x 1 @ 4ohm
bridged
200W x 1 @ 4ohm
340W x 1 @ 2ohm
65W x 4 @ 4ohm
90W x 4 @ 2ohm
180W x 2 @ 4ohm
bridged
Signal to
Noise Ratio >96dB >96dB >96dB
High & Low Pass
Crossover 6dB per Octave 12dB per Octave 6dB per Octave
Subsonic Filter N/A 12dB per Octave N/A
Crossover
Range 50Hz - 400Hz 50Hz - 250Hz 50Hz - 400Hz
Subsonic
Crossover Range N/A 10Hz - 55Hz N/A
Bass Boost
@ 45Hz 0 to +18dB 0 to +12dB N/A
Low - High Level
Input Range 0.2V to 10V 0.2V to 10V 0.2V to 10V
Minimum Load
Impedance
2ohm stereo &
4ohm bridged 2ohm 2ohm stereo &
4ohm bridged
Note:
These are Class A/B ampliers. These ampliers can run very hot
whilst providing high sound quality.
© 2021 Phoenix Gold • www.phoenixgold-eu.com
Z1502i / Z3001i / Z3004i - Z-Series Ampliers
Installation Warnings
1. Ensure the +12V lead is disconnected from the battery before you
connect any new equipment
2. Ensure that the amplier mounting location and holes will not interfere
with the petrol tank, brake lines or electrical wiring.
3. Ensure the amplier is securely fastened to the vehicle to prevent the
amplier moving and causing damage in the event of an accident
4. Ensure all wiring is protected from sharp objects and from pinching or
crushing which could result in damage to the audio system
5. Ensure the mounting location has sufcient air ow around the
amplier. If the amplier is mounted in an enclosed space a 3” fan
with ducting should be used to assist with cooling.
6. Do not mount any amplier on a subwoofer enclosure as extended
exposure to vibration may cause damage to the amplier.
7. Ensure the minimum recommended gauge wire/cable or larger for all
amplier connections
8. Appropriate mounting is very important for prolonged life
expectancy of any amplier. Select a location that provides
protection from moisture. Keep in mind that an amplier should never
be mounted upside down. Upside down mounting will compromise
heat dissipation through the heat sink and could engage the thermal
protection circuit.
