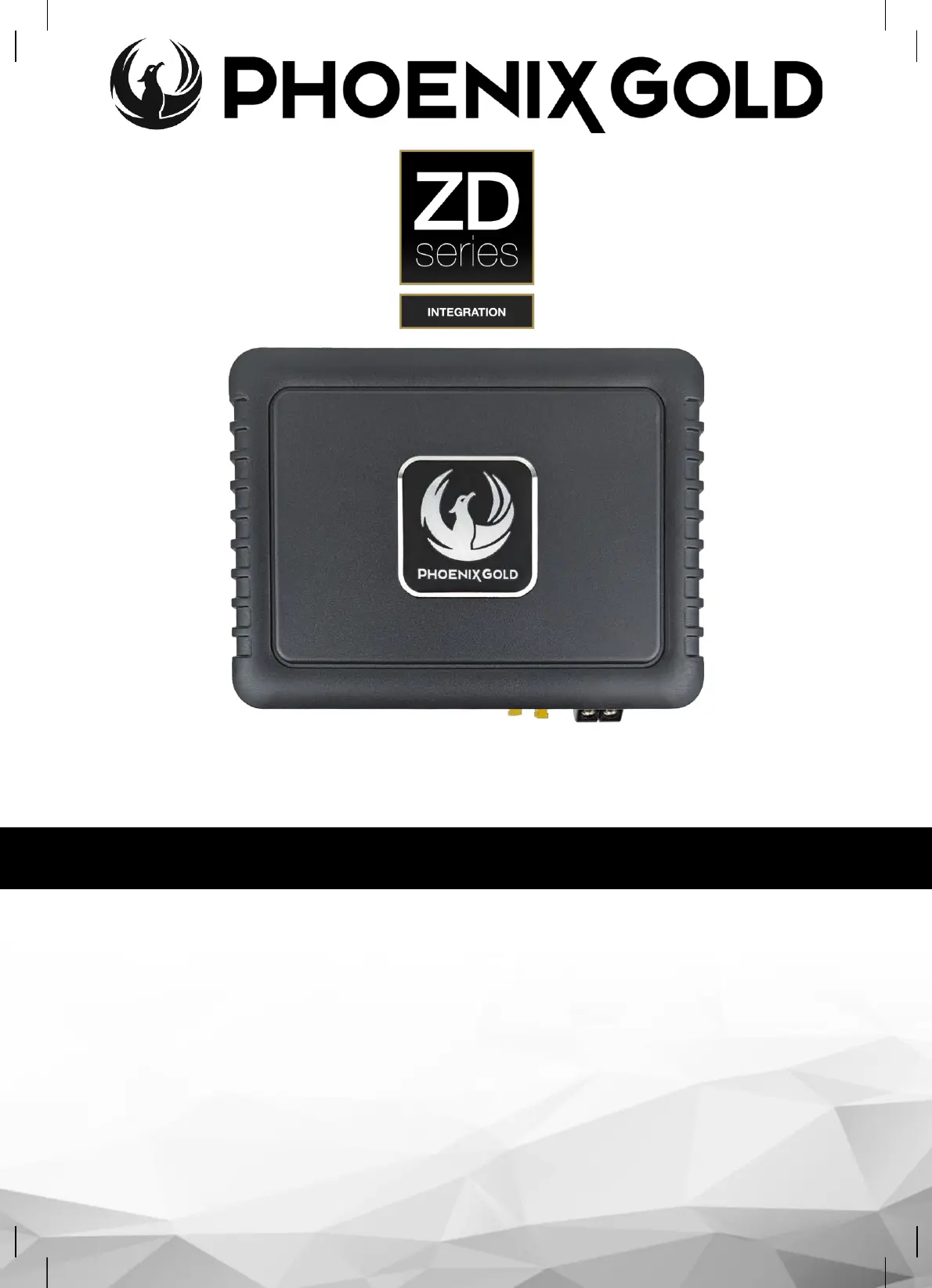

Sida 1/7
Plug & Play Optimized DSP Ampliers
Features
●Class A/B Amplier Designs
●APP Control for iOS & Android (Coming )2025
●Bluetooth 5.0 Built-in
●Burr Brown DAC
●Input Priority
●OIS - OEM Impedance Simulation
●Plug & Play Optimised
ZDA4.8 / ZDA6.8 / ZDA8.8
© 2024 Phoenix Gold - www.phoenixgold.com
Product:
ZDA4.8 ZDA6.8 ZDA8.8
Type:
DSP Amplier
Amplier Class:
A/B
Amplied Channels:
468
DSP Channels:
8
Frequency Response (
-3dB): 15Hz ~ 23kHz
MAX Power Rating:
560W 480W520W
RMS Power Rating (2Ω):
N/A N/A N/A
RMS Power Rating (4Ω):
4 x 70W 2 x 70W
4 x 30W 8 x 30W
RCA Voltage Output:
4V
DAC:
Burr Brown PCM1681
DSP Resolution:
24 Bit
Sampling Rate:
48kHz
SNR (Analogue/Digital Input):
-90dB
THD:
0.1%
Crosstalk:
-60dB
Damping Factor:
120
High
-Level Input: Yes
Auto Turn
-On: Yes
Input Sensitivity (High
-Level): 0.2V - 20V
Input Sensitivity (Low
-Level): 0.2V - 5V
Operating Voltage:
9V - 16V
Start
-Stop Compatible: Yes
Idle Current:
1.5A
Current Draw (MAX):
30A
Total Efficiency (4Ω):
60%
Power Terminal:
10mm²
Remote (Optional):
ZDAWCT
Low
-Level Outputs (RCA): 8
Analogue Inputs:
6 x High-Level / 2 x Low-Level
Digital Inputs:
Bluetooth / Coaxial / USB / SPDIF
Remote Input:
Yes
Remote Output:
Yes
PC Connection Input:
USB-B
APP Control (Coming Soon):
Yes
HARDWARE SPECIFICATIONS
© 2024 Phoenix Gold - www.phoenixgold.com
Product:
ZDA4.8 / ZDA6.8 / ZDA8.8
PC Software:
Yes (Windows 10, Windows 11)
APP:
Yes (Coming Soon)
Equalizer:
31-Band
Phase Adjustments:
0 or 180 degree
Filters:
High-Pass & Low-Pass
Filter Types:
Bessel, Butterworth, Linkwitz-Riley
Filter Slopes (Bessel/Butterworth):
O, -6dB, -12dB, -18dB, -24dB, -36dB, -
42dB, -48dB
Filter Slopes (Linkwitz
-Riley): O, -12dB, -24dB, -48dB
Time Alignment:
0 - 48ms (0 - 1632cm)
Bypass EQ:
Yes (Individual channels & ALL channels)
Mute:
Yes (Individual channels & ALL channels)
Input Priority:
Yes (2 Sources)
Turn
-On Delay: Yes (5 - 30sec)
Custom Signal Routing:
Yes
EQ Settings:
Graphic EQ / Parametric EQ
Delay Calculator:
Yes (cm and inches)
Delay Unit:
Centimeters / Inches / Milliseconds
Custom Link Settings:
Copy & Relate (Delay/EQ/Filters/Volume)
Input Setting (Input Sensitivity):
-6dB, -3dB, 0dB, +3dB, +6dB
Preset Password Protection:
Yes
Full Screen Mode:
Yes
EQ Band Gain: (Each EQ Band)
-12dB to +12dB
Adjustable Q Value:
0.1 to 12
Languages:
English, German, Spanish & Chinese
EQ Adjustable Frequency Range:
20Hz - 20kHz
Individual Channel Gain:
0dB to -59dB
Global Volume Gain:
0dB to -28dB
Selectable Channel Names:
Yes, for each channel
SOFTWARE SPECIFICATIONS
© 2024 Phoenix Gold - www.phoenixgold.com
