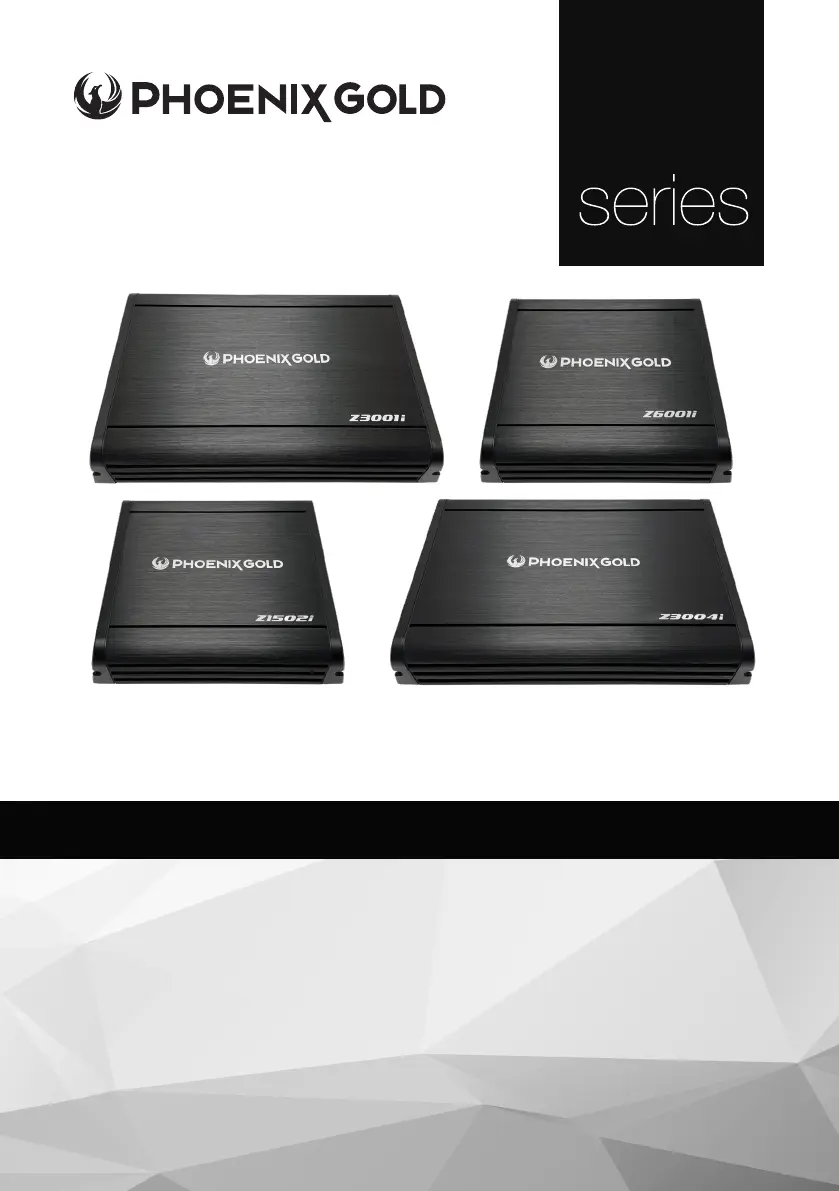

COMPACT, CLASS A/B & MONO

Z-SERIES AMPLIFIERS

Model: Z1502i / Z3001i / Z3004i / Z6001i

• - compatible with aftermarket & original source unitsOEM Connection Ready

• Remote Bass Ready - control the bass level with included ZRBC (Z3001i & Z6001i)

• - powers on the amp when audio signal is suppliedHigh Level Auto-Turn On

• Integrated Cooling Fan - regulates temperature for sustained performance

• - versatile connectivity to suit any vehicleHigh & Low Level Inputs

• - enables maximum current supplyHeavy Duty Connector Block

• - protection against thermal damage, 4-Way Protected Circuit

reversed power, speaker polarity and low voltage

SPECIFICATIONS

All specications subject to change without notice.

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Ampliers

Specications: Z1502i Z3001i Z3004i Z6001i

Class Class A/B Class A/B Class A/B Class D

Channels 2 1 4 1

Frequency Response 10Hz – 25kHz 20Hz – 250Hz 10Hz – 25kHz 20Hz – 400Hz

RMS Power Rating (1Ω): N/A N/A N/A 1 x 600W

RMS Power Rating (2Ω): 2 x 100W 1 x 300W 4 x 80W 1 x 400W

RMS Power Rating (4Ω): 2 x 65W

1 x 200W Bridged 1 x 205W 4 x 60W 1 x 250W

Signal to Noise Ratio (SNR)

(Full Power) -87dB -87dB -87dB -84dB

Total Harmonic Distortion

(THD) <1% <1% <1% <1%

Low Pass Filter (LPF) 50Hz – 400Hz (6dB/Oct) 50 – 250Hz (12dB/Oct) 50Hz – 400Hz (6dB/

Oct)

50Hz – 250Hz (24dB/

Oct)

High Pass Filter (HPF) 50Hz – 400Hz (6dB/Oct) N/A 50Hz – 400Hz (6dB/

Oct) N/A

Subsonic N/A 10Hz – 55Hz (12dB/

Oct) N/A 10Hz – 55Hz (24dB/

Oct)

Bass Boost @ 45Hz 0 – +18dB 0 – +18dB N/A 0 – +18dB

Crosstalk -56dB N/A -51dB N/A

Input Sensitivity 0.25V – 9.5V 0.25V – 9.5V 0.25V – 9.5V 0.25V – 9.5V

Fuses 1 x 25A 1 x 40A 2 x 25A 2 x 30A

Remote No Yes (Included) No Yes (Included)

High-level Input Via RCA Yes Yes Yes Yes

Auto Turn-on Yes Yes Yes Yes

Phase Control N/A 0° - 180° N/A 0° - 180°

Operating Voltage 9V – 16V 9V – 16V 9V – 16V 9V – 16V

Idle Current 0.67A 0.4A 0.57A 0.62A

Current Draw (Max) 27A 35A 46A 57A

Total Efciency (4Ω) 63% 71% 65% 89%

Power Terminal 20mm² 20mm² 20mm² 20mm²

Speaker Terminal 4mm² 4mm² 4mm² 4mm²

Dimensions (LxWxH) 184 x 160 x 48mm 254 x 160 x 48mm 254 x 160 x 48mm 184 x 160 x 48mm

Weight 1.16 kg 1.66 kg 1.76 kg 1.30 kg

Z1502i / Z3001i / Z3004i / Z6001i - Z-Series Ampliers

Note:

Z1501i, Z3001i and Z3004i are Class A/B ampliers. These ampliers can run very hot

whilst providing high sound quality.

Installation Warnings

1. Ensure the +12V lead is disconnected from the battery before you

connect any new equipment

2. Ensure that the amplier mounting location and holes will not interfere

with the petrol tank, brake lines or electrical wiring.

3. Ensure the amplier is securely fastened to the vehicle to prevent the

amplier from moving and causing damage in the event of an

accident.

4. Ensure all wiring is protected from sharp objects and pinching or

crushing, which could damage the audio system.

5. Ensure the mounting location has sufcient air ow around the

amplier. If the amplier is mounted in an enclosed space, a 3” fan

with ducting should be used to assist with cooling.

6. Ensure the minimum recommended gauge wire/cable or larger for

all amplier connections.

7. Appropriate mounting is essential for the prolonged life expectancy of

any amplier. Select a location that protects from moisture. Keep in

mind that an amplier should never be mounted upside down. Up

side-down mounting will compromise heat dissipation through the heat

sink and could engage the thermal protection circuit.

Disclaimer

Ensure your safety and the well-being of those around you by following these essential guidelines:

• Keep all product materials and packaging away from children, pets, or anyone at risk of suffocation.

• Exposure to noise levels above 85 dB can cause permanent hearing damage.

• Extreme sound frequencies reduce perception abilities that are essential in road trafc conditions; do not let loud

volumes distract from being mindful behind the wheel.

• Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products.

• Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental

Warranty

Phoenix Gold products come with a limited warranty and are covered by our regional distribution partners and their

terms and conditions. You can nd out more information by contacting your local retailer or distributor.
